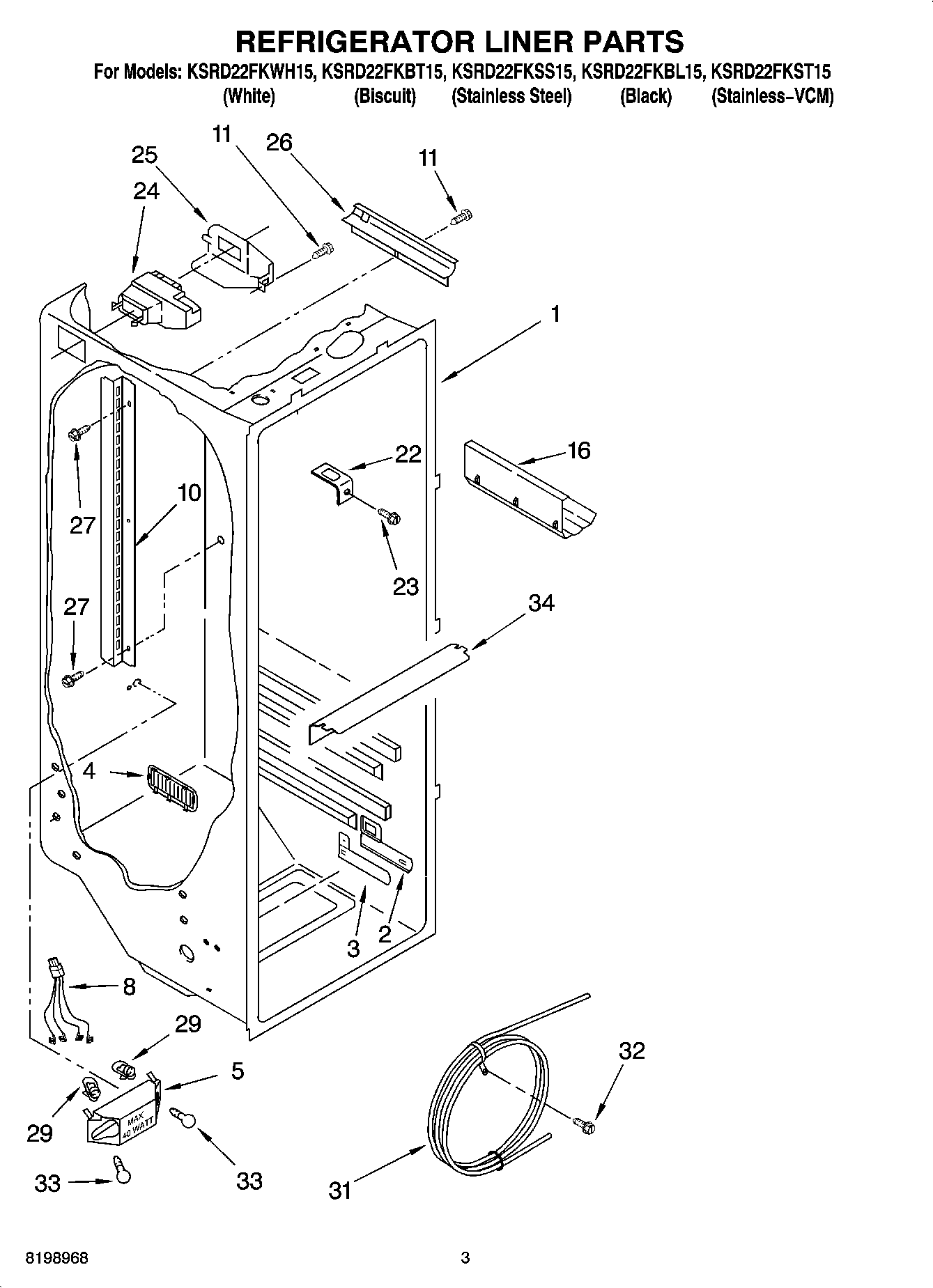

KSRD22FKST15 02 – REFRIGERATOR LINER PARTS

KSRD22FKST15 02 – REFRIGERATOR LINER PARTS

Written by

in

KSRD22FKST15 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
22194744 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
5Bracket, Dual Crisper Light
82311637 Whirlpool Refrigerator Wire Harness
10Shelf Ladder
11W10759522 Whirlpool Screw
16W10777924 Whirlpool Refrigerator Wine Rack
22WP2256085 Whirlpool Refrigerator Retainer
23WP488488 Whirlpool Refrigerator Screw
24WPW10151374 Whirlpool Refrigerator Diffuser
252152019 Whirlpool Refrigerator Cover
262150331 Whirlpool Refrigerator Wire Cover
27WP489478 Whirlpool Refrigerator Screw
294387478 Whirlpool Refrigerator Light Socket
31WP2256126 Whirlpool Refrigerator Reservoir
32Screw (2)
33RANGE ONLY 40W 120V APPL BULB
34Light Lens
