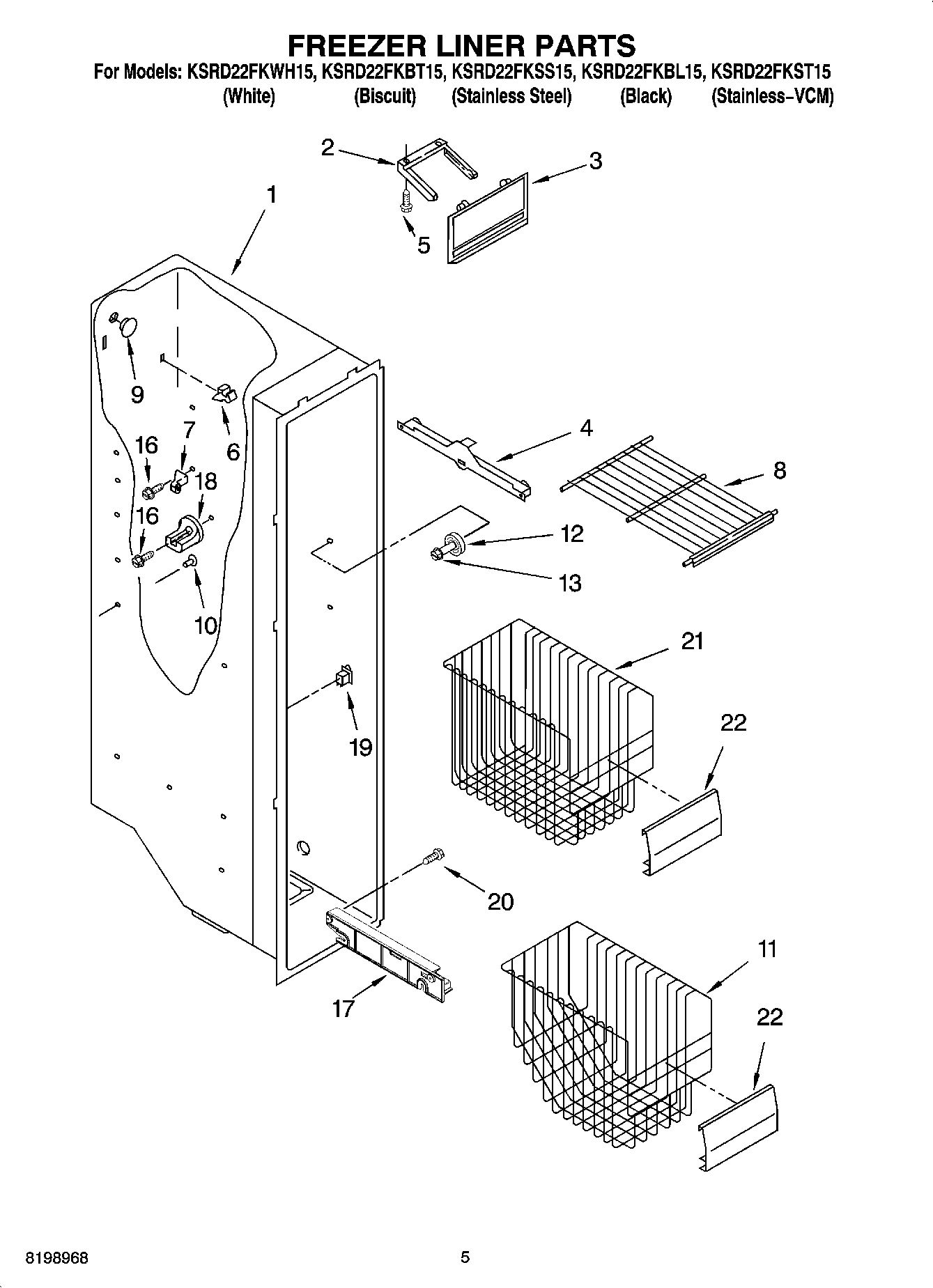

KSRD22FKST15 04 – FREEZER LINER PARTS

Products

Position	Product
1	Liner (Not A Seviceable Part)
2	Slide, Ice Door
3	2171712 Whirlpool Refrigerator Ice Door
4	W10845585 Whirlpool Refrigerator Track
4	W10845583 Whirlpool Refrigerator Track
5	WP489478 Whirlpool Refrigerator Screw
6	2215823 Whirlpool Refrigerator Clip
7	4388405 Whirlpool Refrigerator Shelf Stud
8	WP2174249K Whirlpool Refrigerator Wire Shelf
9	940014 Whirlpool Refrigerator Primary Button Plug
10	Grommet
11	Basket, Slope
12	WP2196483 Whirlpool Refrigerator Shelf Stud
13	WP3400806 Whirlpool Screw
16	W10142289 Whirlpool Air Conditioner Screw
17	Slide, Basket (Left Side)
17	WP2261449 Whirlpool Refrigerator Track
18	Stud, Rear
19	W11457217 Whirlpool Refrigerator Rocker Switch Combination
20	718257 Whirlpool Dishwasher Screw
21	Basket, Tall
22	Basket, Front
