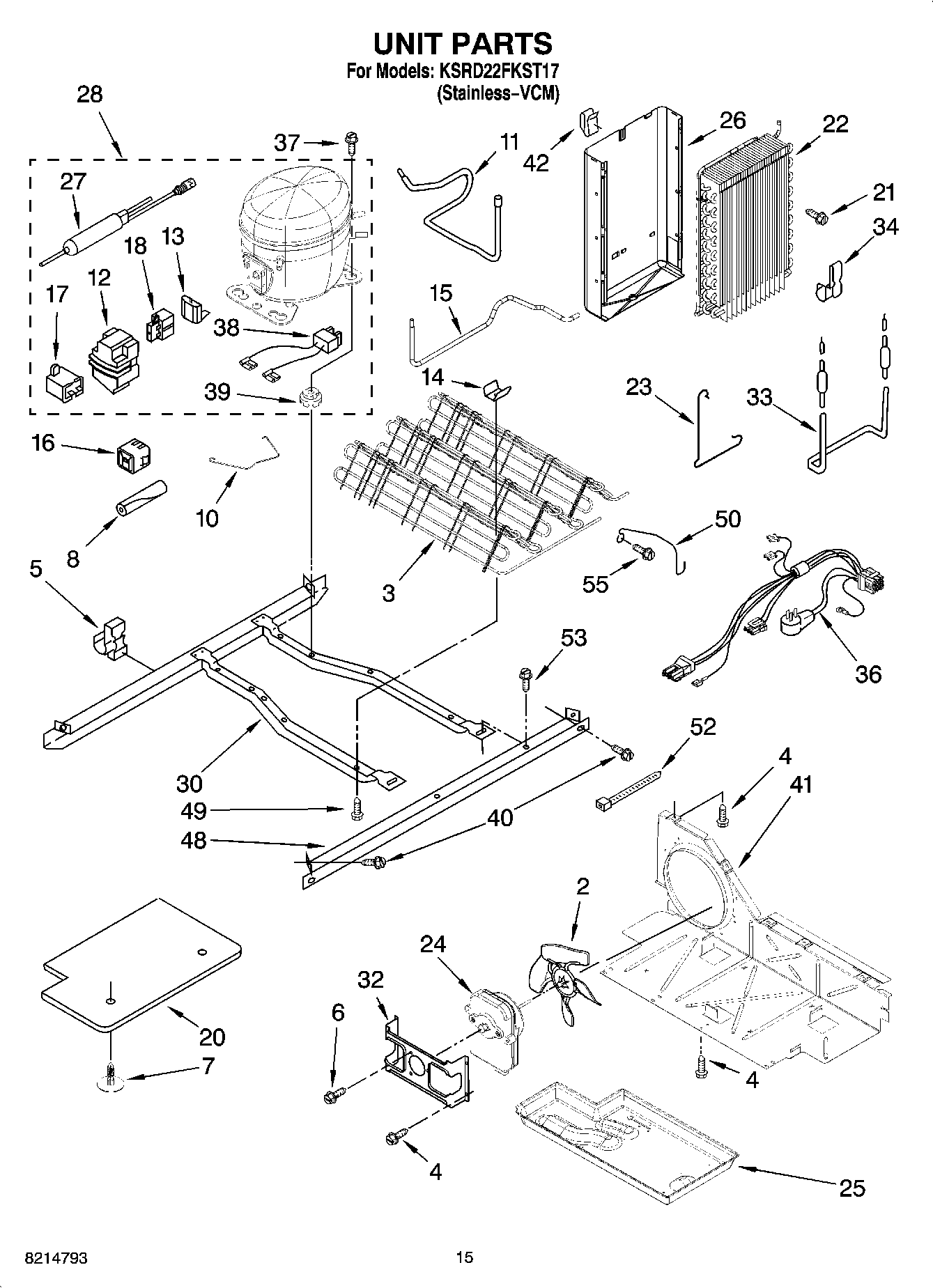

KSRD22FKST17 09 – UNIT PARTS

Products

Position	Product
2	W11458267 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Wire & Tube
6	WP8533993 Whirlpool Refrigerator Screw
7	489396 Whirlpool Refrigerator Clip
8	SLEEVE
10	2255009 Whirlpool Retainer
11	2220642 Whirlpool Refrigerator Tube
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	WP2187145 Whirlpool Refrigerator Overload
14	W10683556 Whirlpool Refrigerator Clip
15	2261599 Whirlpool Refrigerator Tube
16	WP2188831 Whirlpool Refrigerator Start Device
17	WP65889-4 Whirlpool Refrigerator Capacitor
17	WPW10662129 Whirlpool Refrigerator Run Capacitor
18	W10920279 Whirlpool Refrigerator Start Relay
20	Unit Cover, Bottom
21	WP489478 Whirlpool Refrigerator Screw
22	WP2188822 Whirlpool Refrigerator Evaporator
23	Clamp
24	WP2188874 Whirlpool Refrigerator Condenser Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	Heat Shield
27	W10843121 Whirlpool Refrigerator Tube
28	W10309990 Whirlpool Refrigerator Compressor
30	2304903 Whirlpool Refrigerator Frame
32	WP2181929 Whirlpool Refrigerator Bracket
33	WP2323197 Whirlpool Refrigerator Heater
34	W11623163 Whirlpool Refrigerator Clip
36	WPW10309395 Whirlpool Refrigerator Wire Harness
38	WP2172890 Whirlpool Refrigerator Wire
39	876811 Whirlpool Grommet
39	WP4387558 Whirlpool Refrigerator Compressor Grommet
40	489340 Whirlpool Refrigerator Screw
41	W10896764 Whirlpool Refrigerator Air Baffle
42	Clip, Heat Shield
48	Unit Mounting Rail
49	W11544659 Whirlpool Refrigerator Screw
50	Guard, Fan
52	WPW10339879 Whirlpool Wire Tie
53	WP489427 Whirlpool Refrigerator Screw
55	Following Parts Not Illustrated and Optional Parts Not Included
55	VALVE, ACCESS (5/8“)
55	876764 Whirlpool Refrigerator Primary Valve
55	978027 Whirlpool Refrigerator Primary Valve
55	978030 Whirlpool Refrigerator Valve
55	WP978025 Whirlpool Refrigerator Valve
55	VALVE, ACCESS (1/2“)
55	WPW10141625 Whirlpool Refrigerator Screw Assembly
55	978026 Whirlpool Refrigerator Primary Valve
55	REFRIGERANT CHAR
