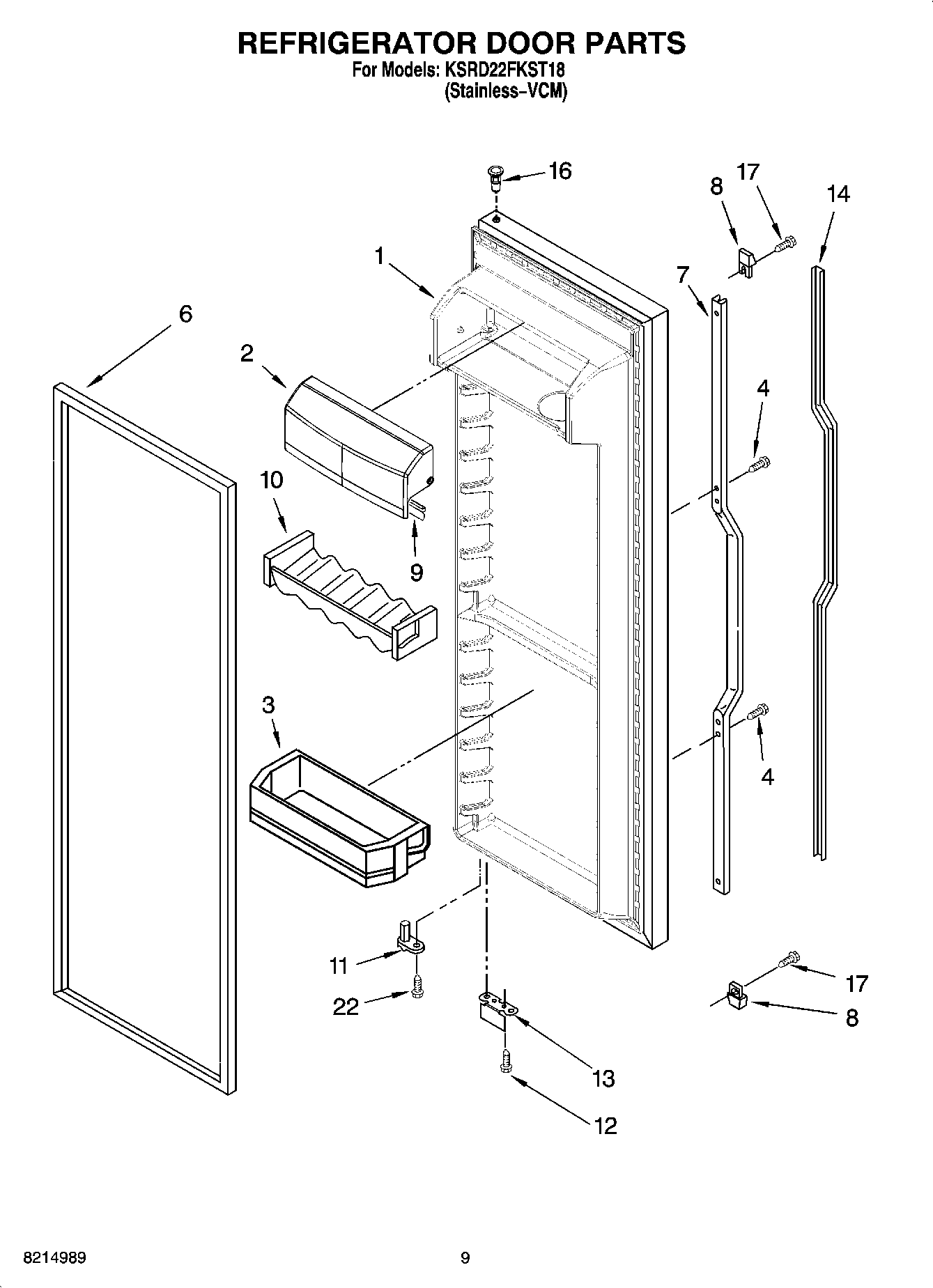

KSRD22FKST18 06 – REFRIGERATOR DOOR PARTS

KSRD22FKST18 06 – REFRIGERATOR DOOR PARTS

Written by

in

KSRD22FKST18 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Item 8) (Stainless-VCM)
2Door, Compartment (Includes 9)
3Door Bin (4)
4WP489491 Whirlpool Refrigerator Screw
62159081 Whirlpool Refrigerator Door Gasket
7Insert, Handle (Black)
8End Cap (Black)
9Gasket, Door Compartment
10Beverage Holder
11WP2182179 Whirlpool Cam Closer
12WP489483 Whirlpool Screw
13WP2206629B Whirlpool Refrigerator Bracket
14Retainer, Insert (Black)
16WP2182181 Whirlpool Refrigerator Thimble
17WP3400852 Whirlpool Refrigerator Screw
22WP3400012 Whirlpool Refrigerator Screw
