KSRD22FKWH02 03 – REFRIGERATOR SHELF

KSRD22FKWH02 03 – REFRIGERATOR SHELF

Written by

in

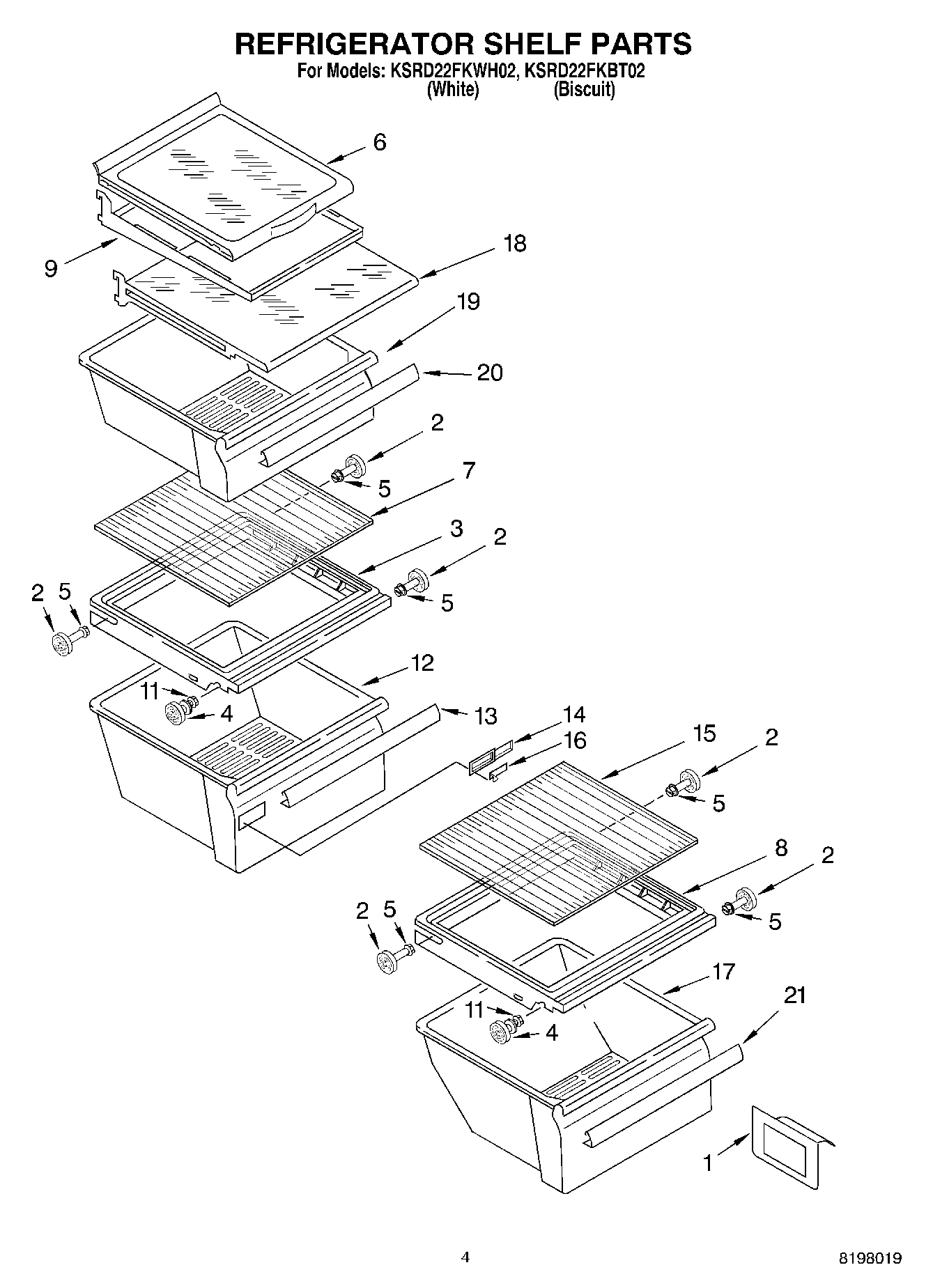

KSRD22FKWH02 03 – REFRIGERATOR SHELF

Products

PositionProduct
12179350 Whirlpool Refrigerator Deflector
2WP2196483 Whirlpool Refrigerator Shelf Stud
3W10508993 Whirlpool Refrigerator Cover Pan
4W11223328 Whirlpool Refrigerator Shelf Stud
5WP3400806 Whirlpool Screw
6Shelf & Roller Assembly
8Cover, Meat Pan
9Frame, Shelf
11WP3-24004-109 Whirlpool Refrigerator Screw
12PAN-CRISPR
14WP2179343 Whirlpool Refrigerator Control Body
15W10864399 Whirlpool Glass Shelf
16WP2179342 Whirlpool Refrigerator Slide
17WP2188664 Whirlpool Dishwasher Meat Crisper Pan
18Shelf Assembly
19W11497323 Whirlpool Snack Pan
20WP2179243 Whirlpool Refrigerator Pan Trim
21WP2179234 Whirlpool Refrigerator Pan Trim
