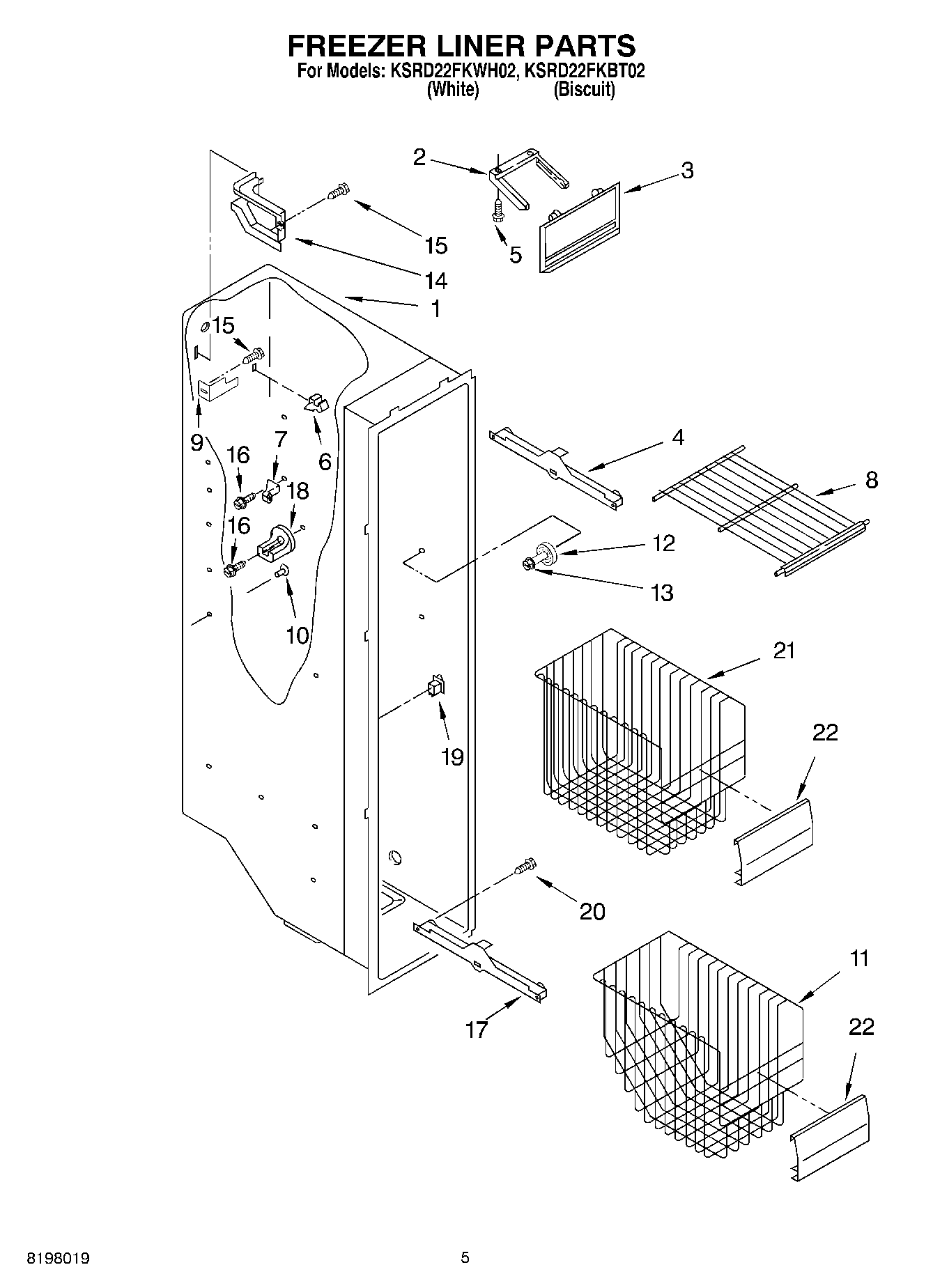

KSRD22FKWH02 04 – FREEZER LINER

KSRD22FKWH02 04 – FREEZER LINER

Written by

in

KSRD22FKWH02 04 – FREEZER LINER

Products

PositionProduct
1Liner (Not A Seviceable Part)
2Slide, Ice Door
32171712 Whirlpool Refrigerator Ice Door
4W10845585 Whirlpool Refrigerator Track
4W10845583 Whirlpool Refrigerator Track
5WP489478 Whirlpool Refrigerator Screw
62215823 Whirlpool Refrigerator Clip
74388405 Whirlpool Refrigerator Shelf Stud
8WP2174249K Whirlpool Refrigerator Wire Shelf
9Bracket, Fill Tube
10Grommet
11Freezer Bin
12WP2196483 Whirlpool Refrigerator Shelf Stud
13WP3400806 Whirlpool Screw
14Cover, Wiring
15SCREW
16W10142289 Whirlpool Air Conditioner Screw
17Slide, Basket (Left Side (2))
17Slide, Basket (Right Side (2))
18Stud, Rear
19W11457217 Whirlpool Refrigerator Rocker Switch Combination
20718257 Whirlpool Dishwasher Screw
21Basket, Tall
22Basket, Front
