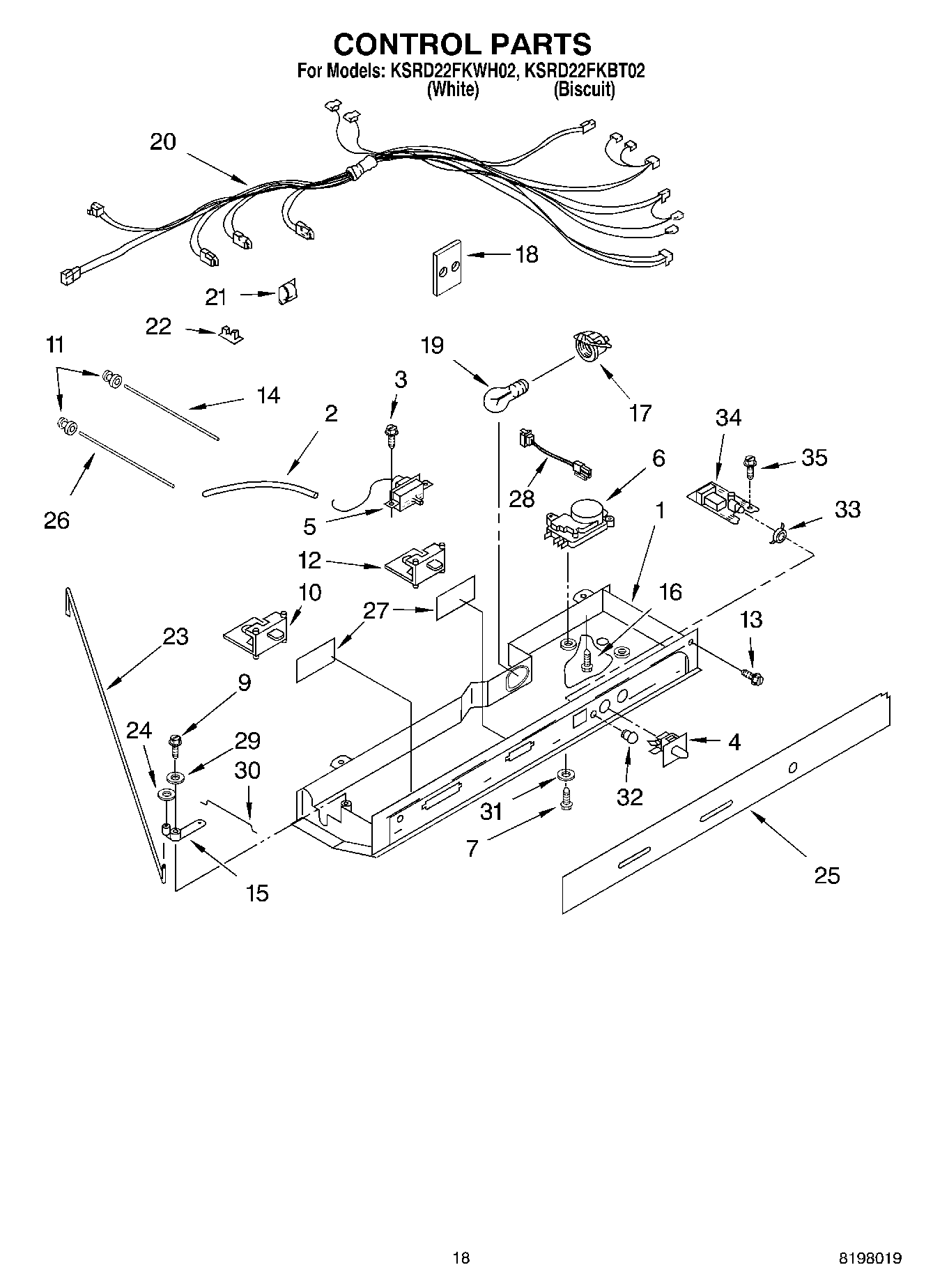

KSRD22FKWH02 11 – CONTROL

Products

Position	Product
1	Control Box
2	WP2196003 Whirlpool Refrigerator Bar Riser
4	WP2149705 Whirlpool Refrigerator Door Switch
5	WP2315562 Whirlpool Refrigerator Thermostat
6	WPW10366605-includeCORE Whirlpool WPW10366605 Refrigerator Electronic Control Board + Core
7	489392 Whirlpool Refrigerator Screw
9	627068 Whirlpool Refrigerator Screw
10	2181741 Whirlpool Refrigerator Slide
11	Grommet, Light Fiber
12	2161466 Whirlpool Refrigerator Slide
14	Fiber Optic
15	2161306 Whirlpool Refrigerator Arm Pivot
16	WP488488 Whirlpool Refrigerator Screw
17	4387478 Whirlpool Refrigerator Light Socket
18	2172931 Whirlpool Refrigerator Shield
19	RANGE ONLY 40W 120V APPL BULB
20	Control Box Harness
21	WP1115374 Whirlpool Refrigerator Clip
22	CLIP, WIRING
23	2161308 Whirlpool Refrigerator Rod
24	Fastener, Push-On
25	Escutcheon, Control Box
26	Light Bar (FC)
27	Window
28	W10853646 Whirlpool Indicator Light
30	2161307 Whirlpool Refrigerator Rod
31	489203 Whirlpool Refrigerator Washer
32	COVER, LIGHT LENS
33	N/A
34	N/A
35	2006254 Whirlpool Refrigerator Screw
