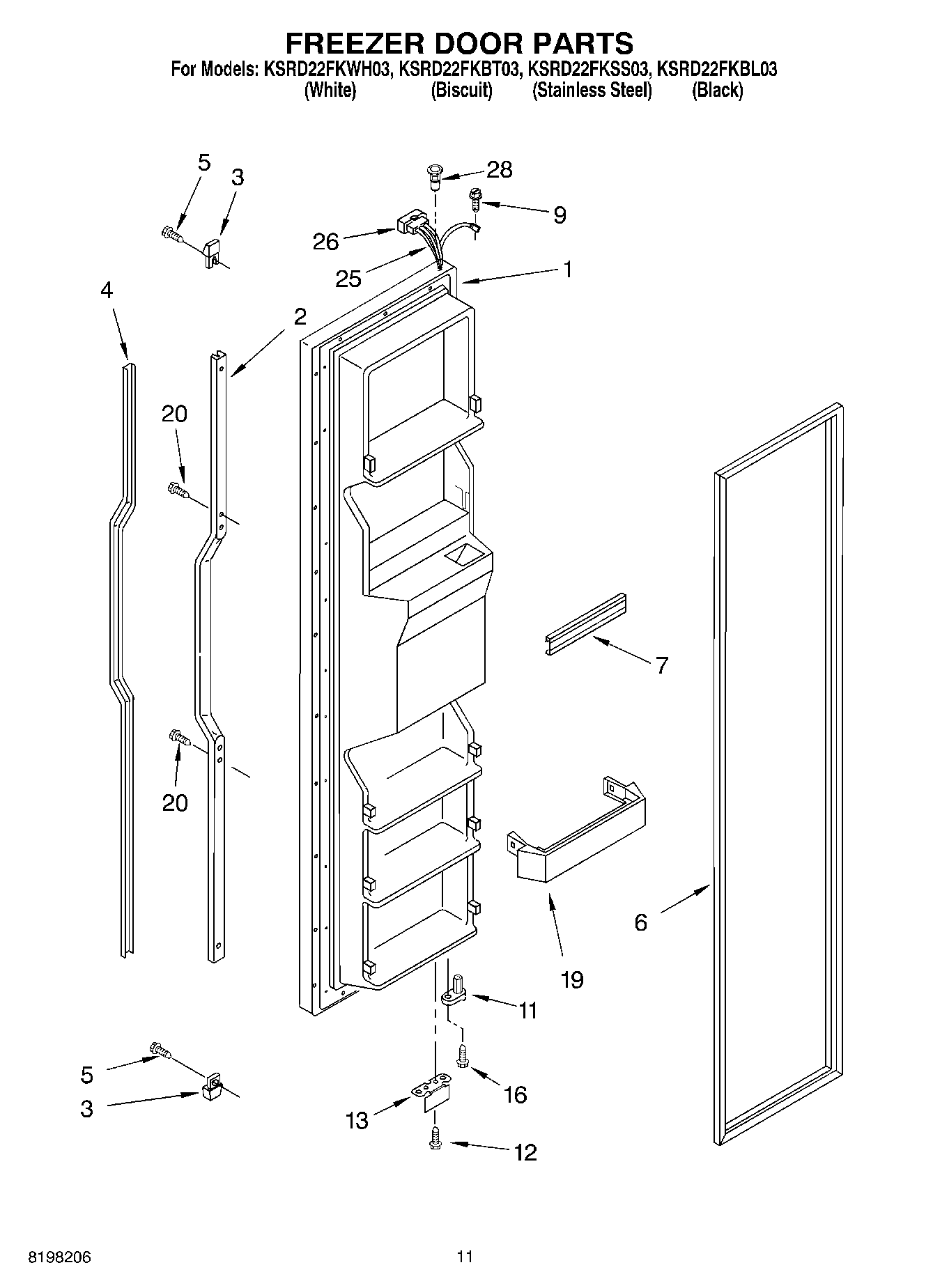

KSRD22FKWH03 07 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (White)
1	Freezer Door (Biscuit (Includes Item No.6 And Dispenser Front Parts))
1	Freezer Door (Stainless Steel)
1	Freezer Door (Black)
2	Retainer, Handle (Biscuit)
2	Retainer, Insert (Black)
2	Retainer, Insert
3	End Cap, Handle (Biscuit)
3	End Cap (Black)
3	End Cap, Handle
4	Insert, Handle (Biscuit)
4	Insert, Handle
4	Insert, Handle (Black)
5	WP3400852 Whirlpool Refrigerator Screw
6	2159072 Whirlpool Refrigerator FIP Gasket
6	2159080 Whirlpool Refrigerator Door Gasket
7	WPW10307490 Whirlpool Door Trim Assembly
9	WP489128 Whirlpool Refrigerator Screw
11	WP2182179 Whirlpool Cam Closer
12	WP489483 Whirlpool Screw
13	WP2206629B Whirlpool Refrigerator Bracket
16	WP3400012 Whirlpool Refrigerator Screw
19	Trivet, Shelf (4)
20	WP489491 Whirlpool Refrigerator Screw
25	Wire Assembly
26	WP2154473 Whirlpool Refrigerator Connector
28	WP2182181 Whirlpool Refrigerator Thimble
