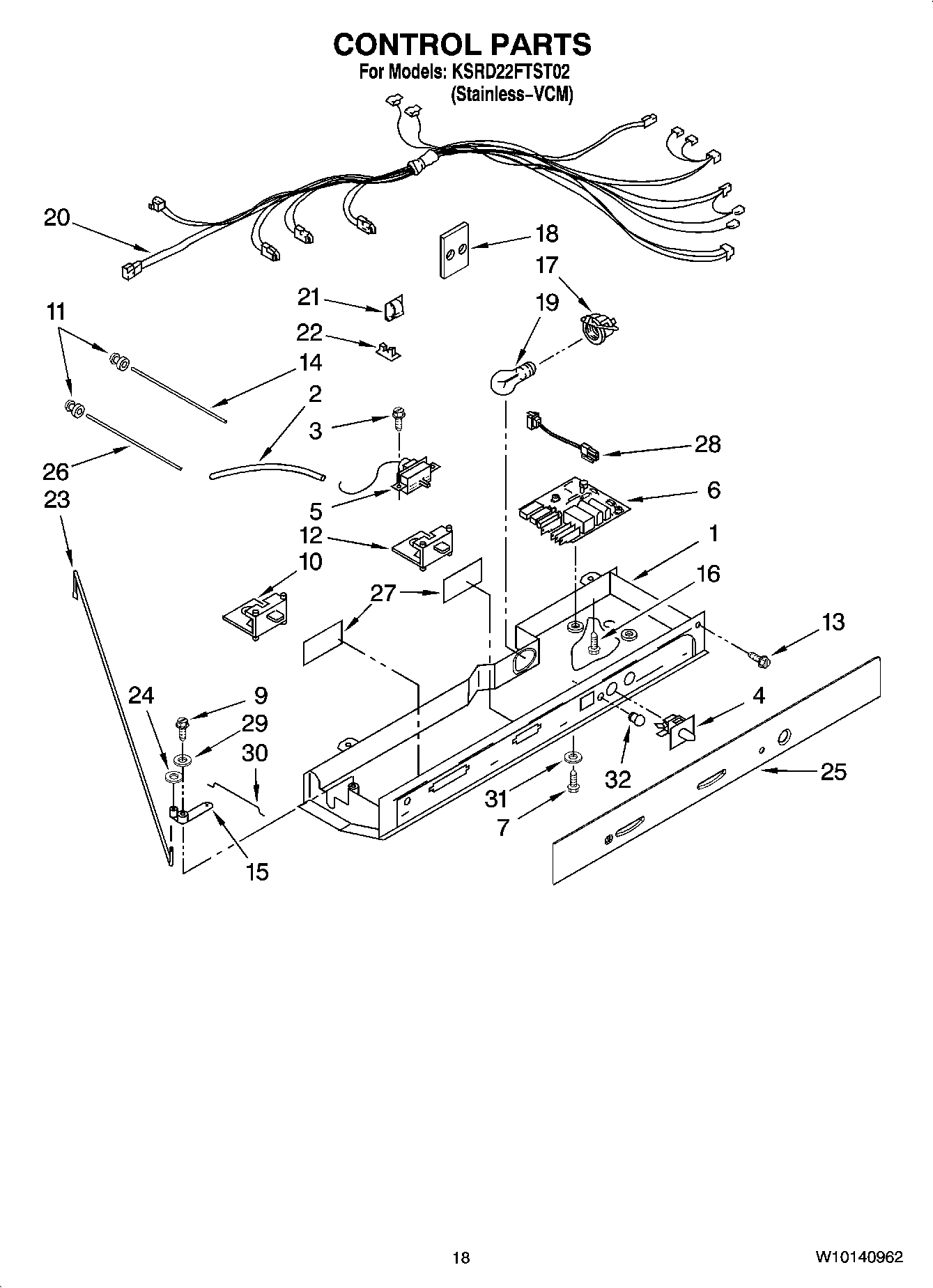

KSRD22FTST02 11 – CONTROL PARTSadmin2025-04-26T11:36:00+00:00KSRD22FTST02 11 – CONTROL PARTS ProductsPositionProduct1Control Box2WP2196003 Whirlpool Refrigerator Bar Riser32006254 Whirlpool Refrigerator Screw4WP2149705 Whirlpool Refrigerator Door Switch5WP2315562 Whirlpool Refrigerator Thermostat6WPW10366605-includeCORE Whirlpool WPW10366605 Refrigerator Electronic Control Board + Core7489392 Whirlpool Refrigerator Screw9627068 Whirlpool Refrigerator Screw102181741 Whirlpool Refrigerator Slide11Grommet, Light Fiber122161466 Whirlpool Refrigerator Slide14Fiber Optic152161306 Whirlpool Refrigerator Arm Pivot16WP488488 Whirlpool Refrigerator Screw174387478 Whirlpool Refrigerator Light Socket182172931 Whirlpool Refrigerator Shield19RANGE ONLY 40W 120V APPL BULB202311632 Whirlpool Refrigerator Wire Harness21WP1115374 Whirlpool Refrigerator Clip22CLIP, WIRING232161308 Whirlpool Refrigerator Rod24Fastener, Push-On25Escutcheon, Control Box26Light Bar (FC)27Window28W10853646 Whirlpool Indicator Light302161307 Whirlpool Refrigerator Rod31489203 Whirlpool Refrigerator Washer32COVER, LIGHT LENS
