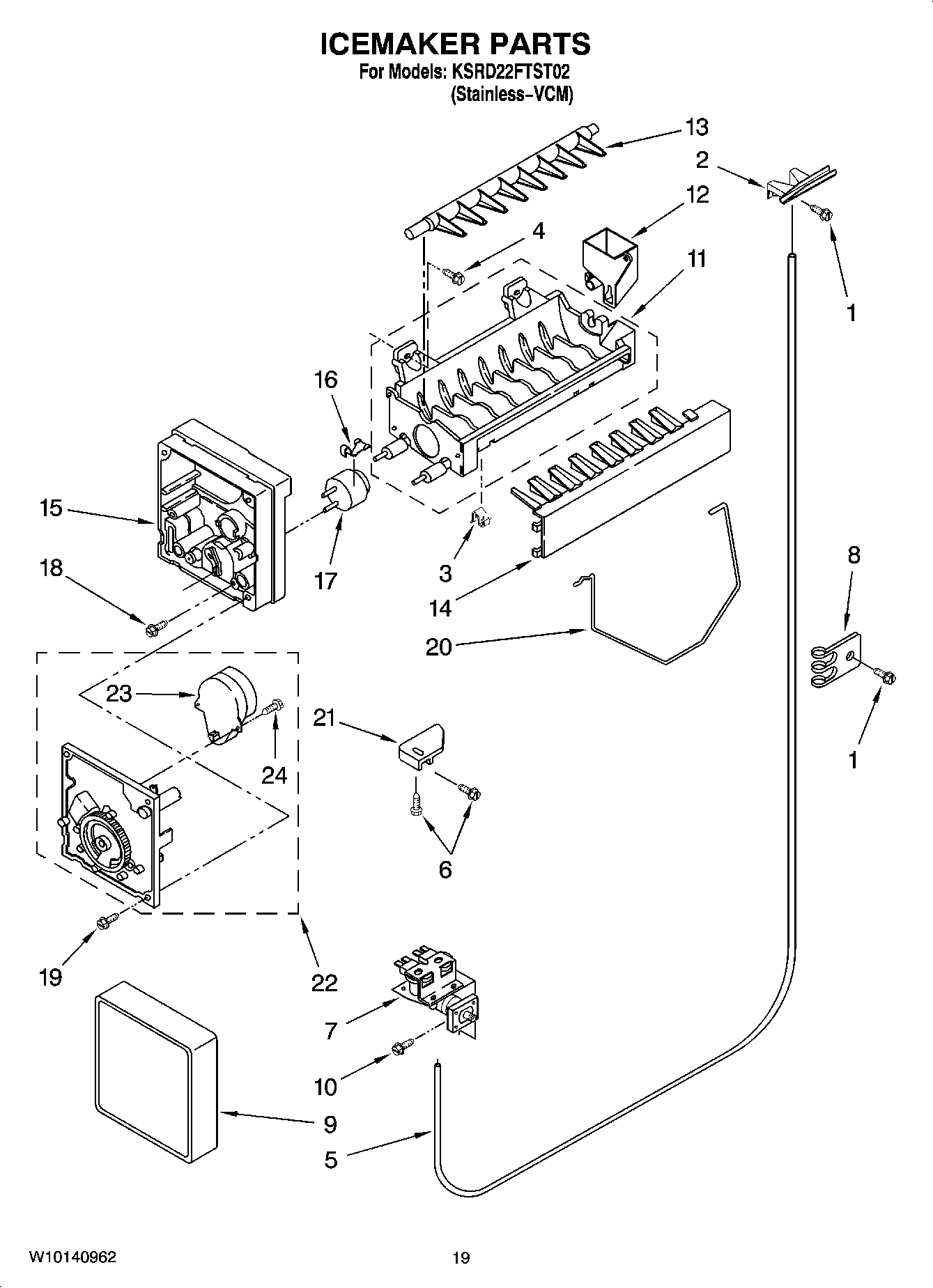

KSRD22FTST02 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

KSRD22FTST02 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

KSRD22FTST02 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
ACCESSORIES
WP503695 Whirlpool Refrigerator Sealer
WP505587 Whirlpool Refrigerator Sealer
WP542638 Whirlpool Refrigerator Grease
Torx Key
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
WPL 799833
8171357 Whirlpool Spray Nozzle
PAINT, TOUCH-UP (1/2OZ. GRAPHITE)
PAINT, BULK (1 QT. GRAPHITE)
TORX SCREW WRENCH
4210463RW Whirlpool Refrigerator Coil Brush
Important: The spray paint is not to be used where the paint may make contact with the door gaskets.
Miscellaneous
833938 Whirlpool Refrigerator Terminal
350942 Whirlpool Spray Paint
Cleaner, Stainless Steel
212643 Whirlpool Refrigerator Permagum Sealer
2W11505385 Whirlpool Refrigerator Chute
3WP628379 Whirlpool Refrigerator Clip
4WP488163 Whirlpool Refrigerator Screw
5W10823511 Whirlpool Refrigerator Water Tube
6WP489478 Whirlpool Refrigerator Screw
7W10408179 Whirlpool Ice Maker Water Inlet Fill Valve Kit
8WP488366 Whirlpool Refrigerator Clamp
9WPW10289690 Whirlpool Ice Maker Cover
10WPW10141625 Whirlpool Refrigerator Screw Assembly
11WPW10190929 Whirlpool Refrigerator Ice Maker Mold
12W10122561 Whirlpool Refrigerator Cup Fill
13WP627843 Whirlpool Refrigerator Ejector Arm
14WP2182124 Whirlpool Refrigerator Stripper Arm
15WP2195914 Whirlpool Refrigerator Ice Maker Housing
16WP2315522 Whirlpool Refrigerator Clip
17WP627985 Whirlpool Icemaker Cycling Thermostat
188533917 Whirlpool Refrigerator Screw
19WP681249 Whirlpool Screw Assembly
20W11342242 Whirlpool Refrigerator Ice Level Arm
21W11500948 Whirlpool Refrigerator Bracket
228201515 Whirlpool Refrigerator Motor and Gear Module Kit
23W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
24489136 Whirlpool Refrigerator Screw
100WPW10190965 Whirlpool Refrigerator Ice Maker Assembly
