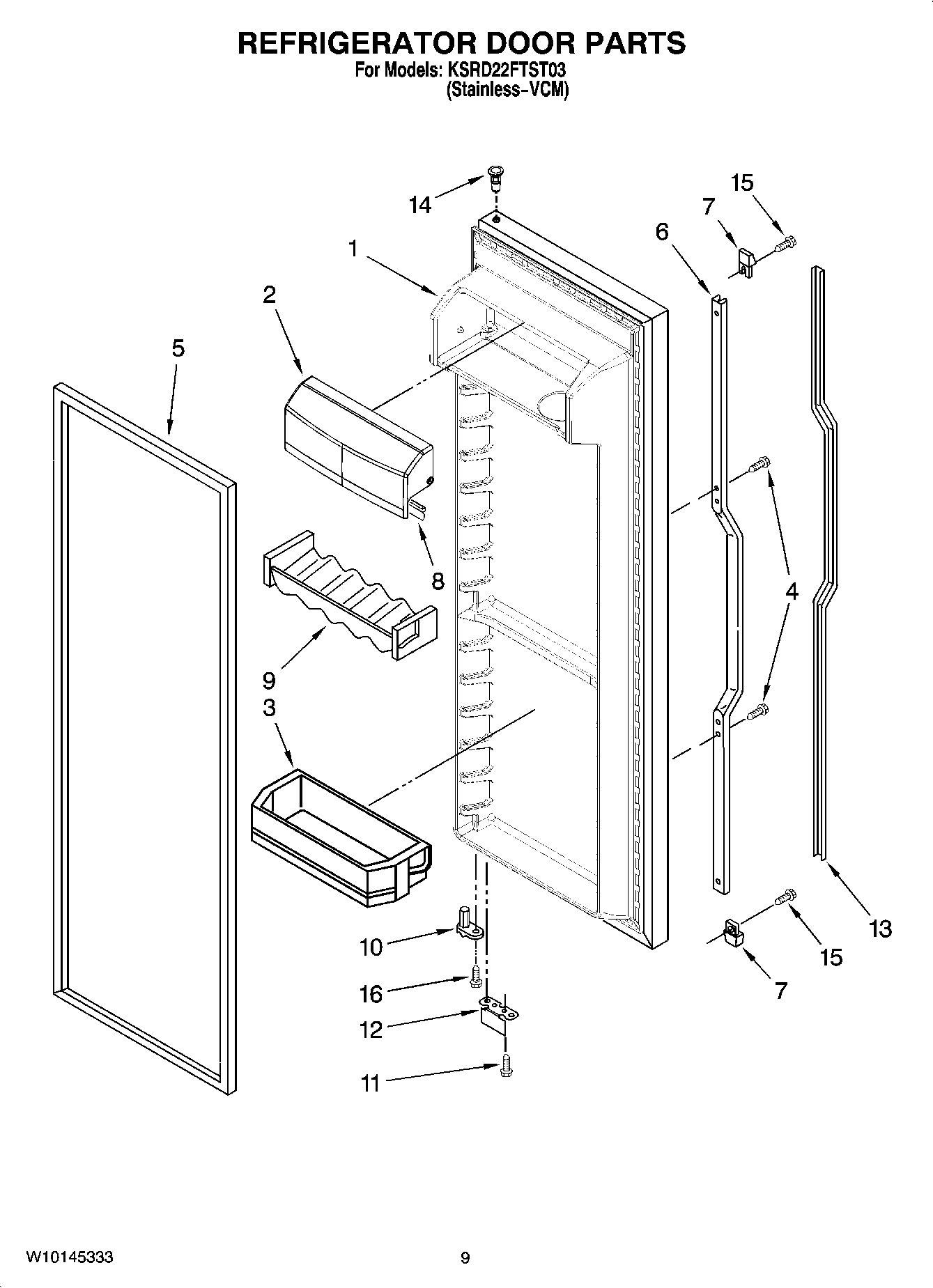

KSRD22FTST03 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes 6) (Stainless-VCM)
2Door, Compartment (Includes 9)
3Door Bin (4)
4WP489491 Whirlpool Refrigerator Screw
52159081 Whirlpool Refrigerator Door Gasket
6Insert, Handle (Black)
7End Cap (Black)
8Gasket, Door Compartment
9Beverage Holder
10WP2182179 Whirlpool Cam Closer
11WP489483 Whirlpool Screw
12WP2206629B Whirlpool Refrigerator Bracket
13Retainer, Insert (Black)
14WP2182181 Whirlpool Refrigerator Thimble
15WP3400852 Whirlpool Refrigerator Screw
16WP3400012 Whirlpool Refrigerator Screw
