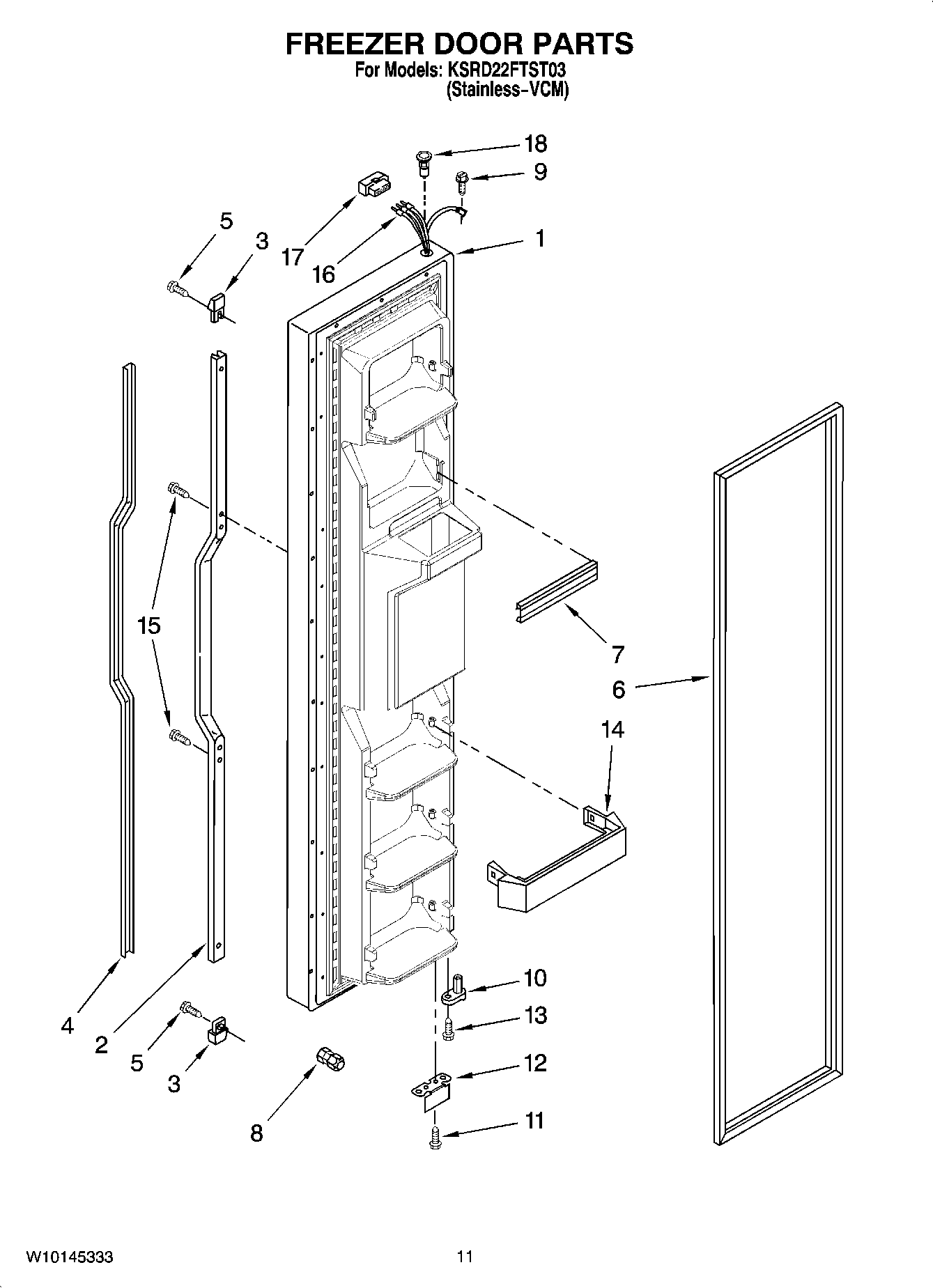

KSRD22FTST03 07 – FREEZER DOOR PARTS

KSRD22FTST03 07 – FREEZER DOOR PARTS

Written by

in

KSRD22FTST03 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes Item 6 And Dispenser Front Parts) (Stainless-VCM)
2Insert, Handle (Black)
3End Cap (Black)
4Retainer, Insert (Black)
5WP3400852 Whirlpool Refrigerator Screw
62159080 Whirlpool Refrigerator Door Gasket
7WPW10307490 Whirlpool Door Trim Assembly
8WP4373559 Whirlpool Fitting
9WP489128 Whirlpool Refrigerator Screw
10WP2182179 Whirlpool Cam Closer
11WP489483 Whirlpool Screw
12WP2206629B Whirlpool Refrigerator Bracket
13WP3400012 Whirlpool Refrigerator Screw
14Trivet, Shelf (3)
15WP489491 Whirlpool Refrigerator Screw
16Wire Assembly
17WP2154473 Whirlpool Refrigerator Connector
18WP2182181 Whirlpool Refrigerator Thimble
