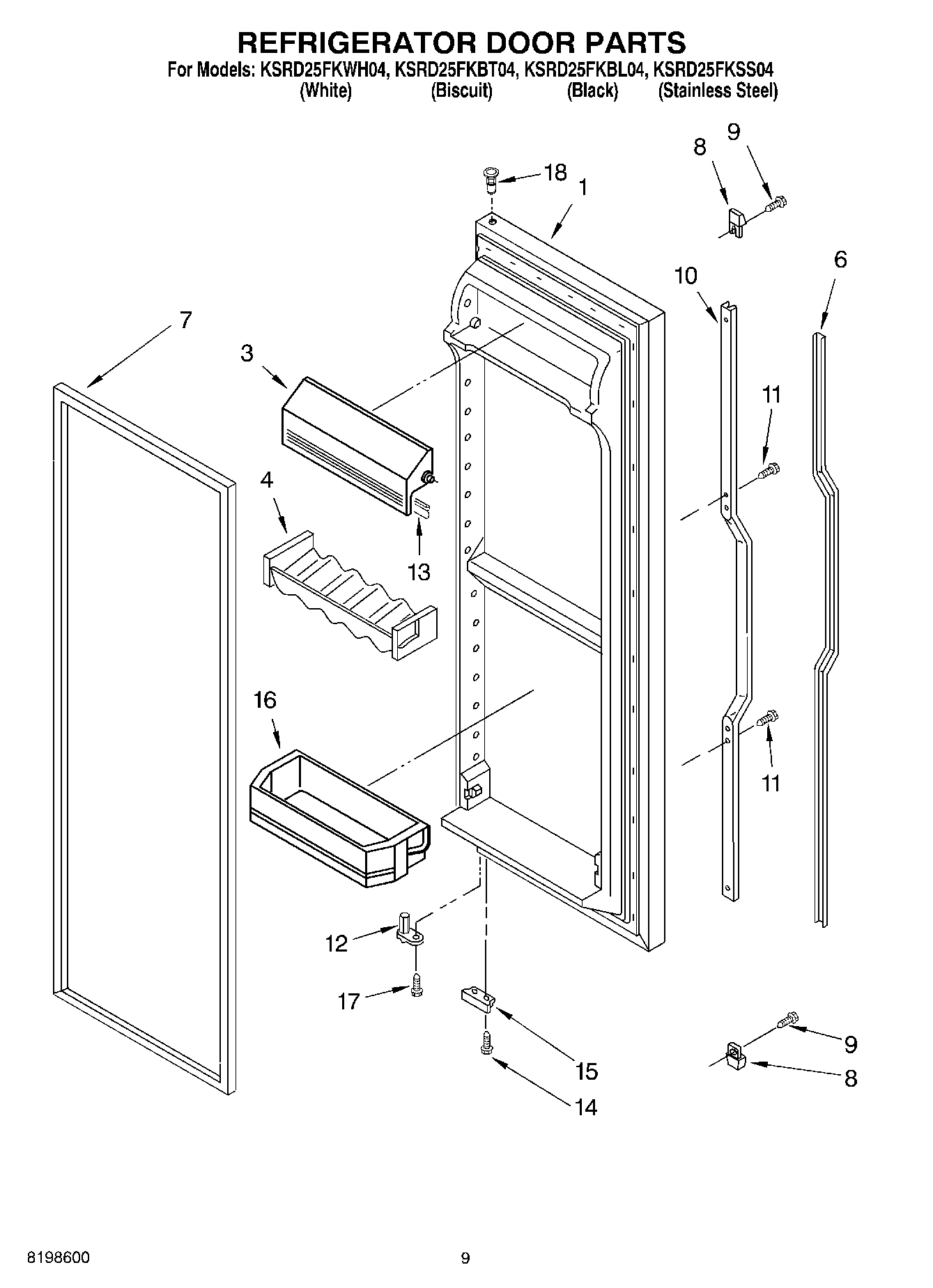

KSRD25FKBL04 06 – REFRIGERATOR DOOR PARTSadmin2025-04-26T12:22:57+00:00KSRD25FKBL04 06 – REFRIGERATOR DOOR PARTS
Products
| Position | Product |
|---|
| 1 | Refrigerator Door (Includes 7) (White) |
| 1 | Refrigerator Door (Includes 7) (Biscuit) |
| 1 | Refrigerator Door (Includes 7) (Stainless Steel) |
| 1 | Refrigerator Door (Includes 7) (Black) |
| 3 | Door, Compartment |
| 4 | Beverage Holder |
| 6 | Handle, Insert (Black) |
| 6 | Insert, Handle (Biscuit) |
| 6 | Insert, Handle |
| 7 | 2159075 Whirlpool Door Gasket Seal |
| 7 | 2159083 Whirlpool Gasket Door |
| 8 | End Cap (Black) |
| 8 | End Cap, Handle (Biscuit) |
| 8 | End Cap, Handle |
| 9 | WP3400852 Whirlpool Refrigerator Screw |
| 10 | Retainer, Insert |
| 10 | Retainer, Insert (Black) |
| 10 | Retainer, Insert (Biscuit) |
| 11 | WP489491 Whirlpool Refrigerator Screw |
| 12 | WP2182179 Whirlpool Cam Closer |
| 13 | Gasket, Door Compartment |
| 14 | WP489483 Whirlpool Screw |
| 15 | WP2206629B Whirlpool Refrigerator Bracket |
| 16 | Bin, Door Shelf |
| 17 | WP3400012 Whirlpool Refrigerator Screw |
| 18 | WP2182181 Whirlpool Refrigerator Thimble |
