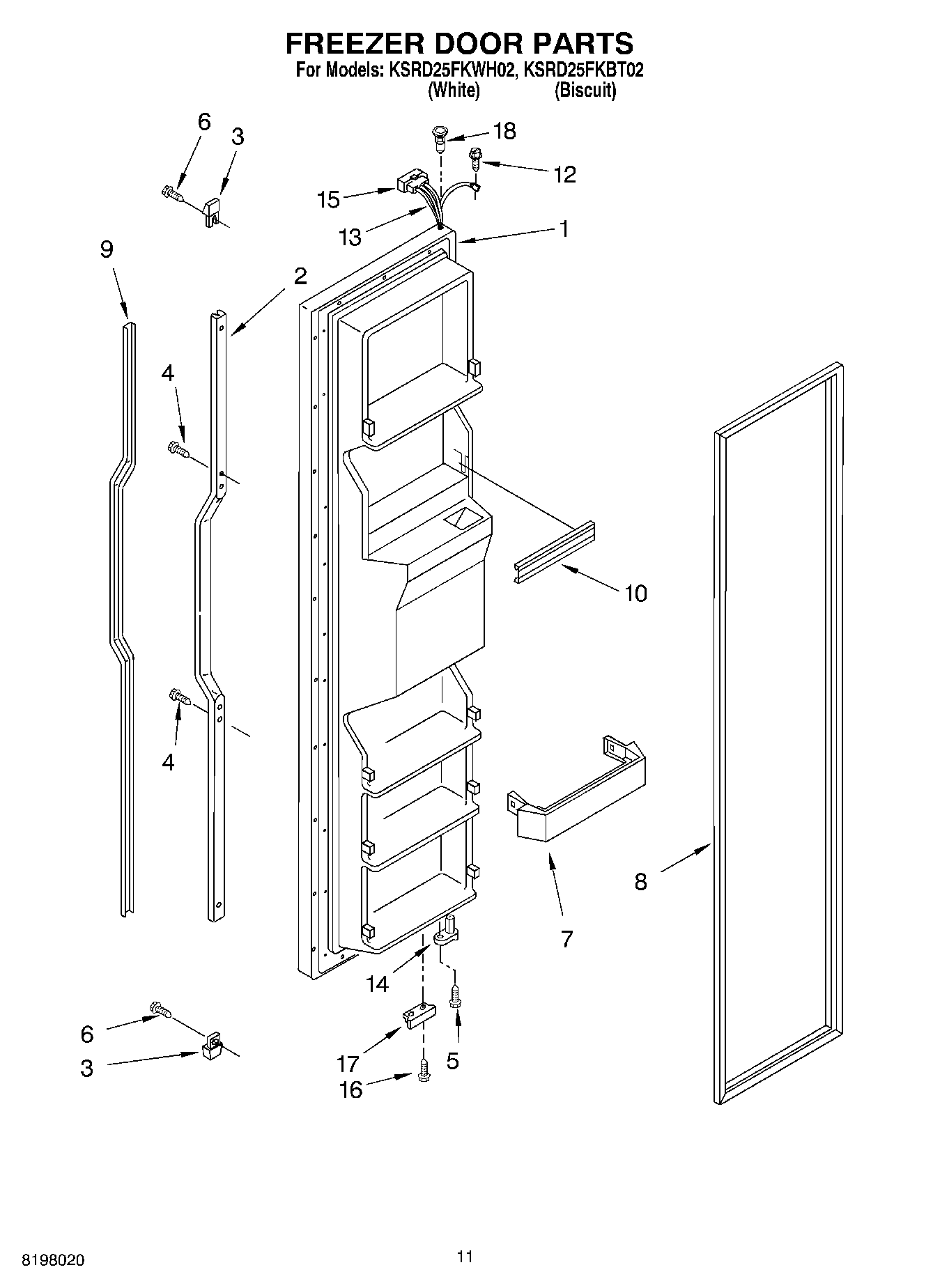

KSRD25FKBT02 07 – FREEZER DOOR

Products

Position	Product
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (White)
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (Biscuit)
2	Retainer, Insert
2	Retainer, Insert (Biscuit)
3	End Cap, Handle (Biscuit)
3	End Cap, Handle
4	WP489463 Whirlpool Refrigerator Screw
5	WP3400012 Whirlpool Refrigerator Screw
6	WP3400852 Whirlpool Refrigerator Screw
7	Shelf Bin (4)
8	2159074 Whirlpool Door Gasket Seal
9	Insert, Handle (Biscuit)
9	Insert, Handle
10	WPW10307490 Whirlpool Door Trim Assembly
12	WP489128 Whirlpool Refrigerator Screw
13	Wire Harness
14	WP2182179 Whirlpool Cam Closer
15	WP2154473 Whirlpool Refrigerator Connector
16	WP489483 Whirlpool Screw
17	WP2206629B Whirlpool Refrigerator Bracket
18	WP2182181 Whirlpool Refrigerator Thimble
