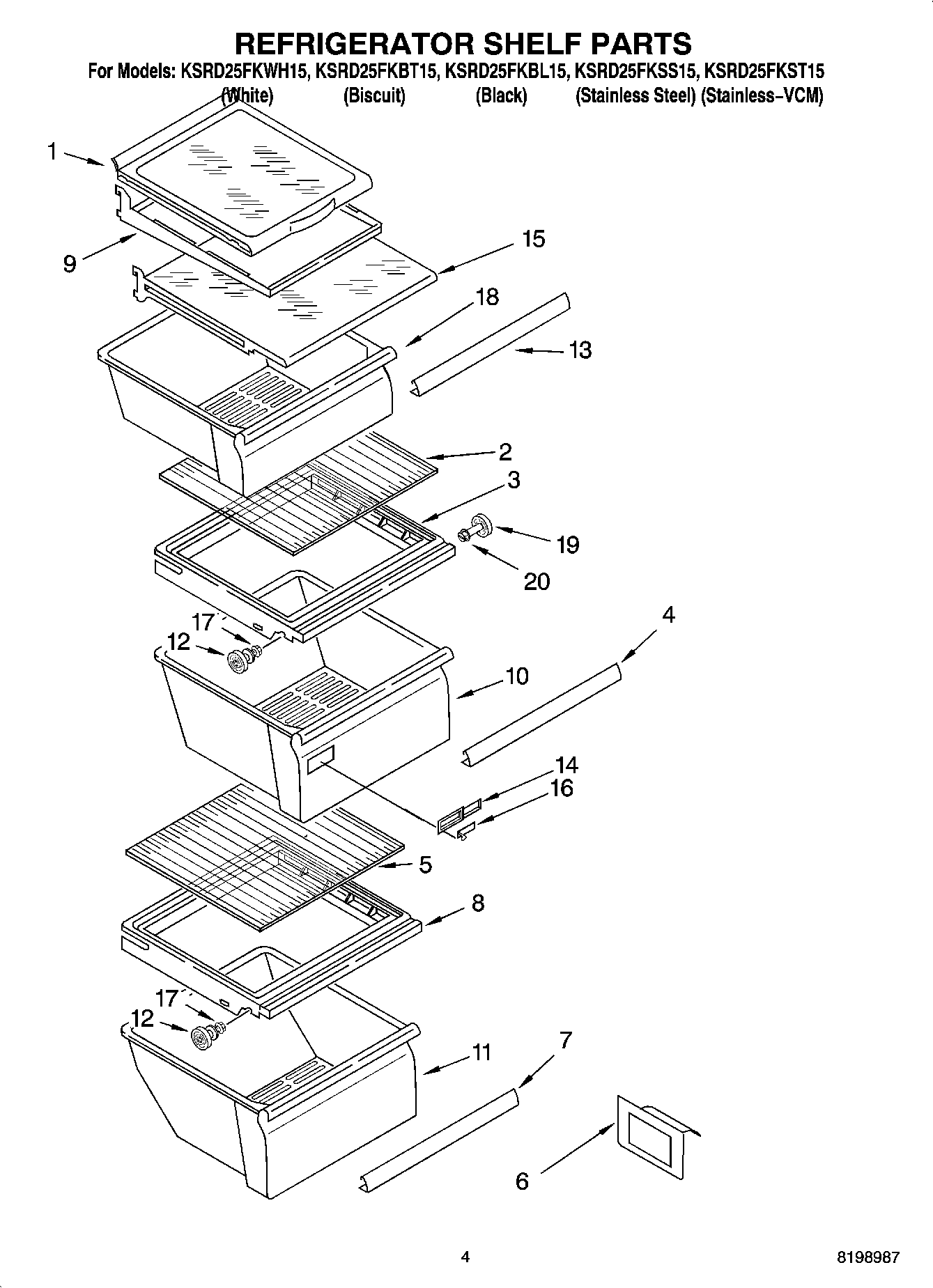

KSRD25FKBT15 03 – REFRIGERATOR SHELF PARTS

KSRD25FKBT15 03 – REFRIGERATOR SHELF PARTS

Written by

in

KSRD25FKBT15 03 – REFRIGERATOR SHELF PARTS

Products

PositionProduct
1Shelf & Roller Assembly
3W10508993 Whirlpool Refrigerator Cover Pan
5W10864399 Whirlpool Glass Shelf
62179350 Whirlpool Refrigerator Deflector
7WP2179234 Whirlpool Refrigerator Pan Trim
8Cover, Meat Pan
9Frame, Shelf
10PAN-CRISPR
11WP2188664 Whirlpool Dishwasher Meat Crisper Pan
12W11223328 Whirlpool Refrigerator Shelf Stud
13WP2179243 Whirlpool Refrigerator Pan Trim
14WP2179343 Whirlpool Refrigerator Control Body
15Shelf Assembly
16WP2179342 Whirlpool Refrigerator Slide
17WP3-24004-109 Whirlpool Refrigerator Screw
18W11497323 Whirlpool Snack Pan
19WP2196483 Whirlpool Refrigerator Shelf Stud
20WP3400806 Whirlpool Screw
