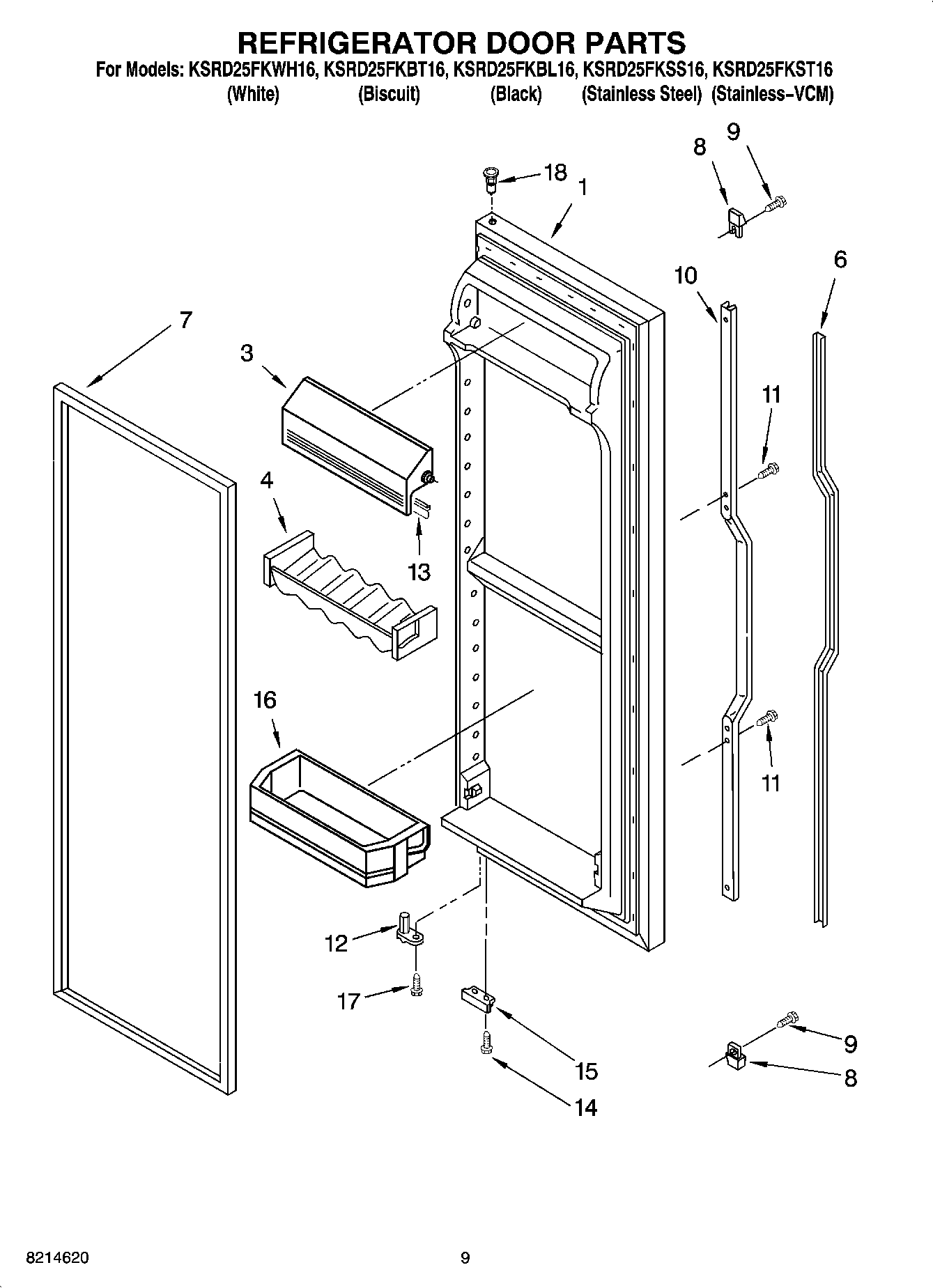

KSRD25FKBT16 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes 7) (White)
1	Refrigerator Door (Includes 7) (Biscuit)
1	Refrigerator Door (Includes 7) (Stainless Steel)
1	Refrigerator Door (Includes 7) (Stainless-VCM)
1	Refrigerator Door (Includes 7) (Black)
3	Door, Compartment
4	Beverage Holder
6	Insert, Handle (Biscuit)
6	Handle, Insert (Black)
6	Insert, Handle
7	2159075 Whirlpool Door Gasket Seal
7	2159083 Whirlpool Gasket Door
8	End Cap (Black)
8	End Cap, Handle
8	End Cap, Handle (Biscuit)
9	WP3400852 Whirlpool Refrigerator Screw
10	Retainer, Insert
10	Retainer, Insert (Black)
10	Retainer, Insert (Biscuit)
11	WP489491 Whirlpool Refrigerator Screw
12	WP2182179 Whirlpool Cam Closer
13	Gasket, Door Compartment
14	WP489483 Whirlpool Screw
15	WP2206629B Whirlpool Refrigerator Bracket
16	Door Bin (4)
17	WP3400012 Whirlpool Refrigerator Screw
18	Thimble, Top (For Stainless Steel Models)
18	WP2182181 Whirlpool Refrigerator Thimble
