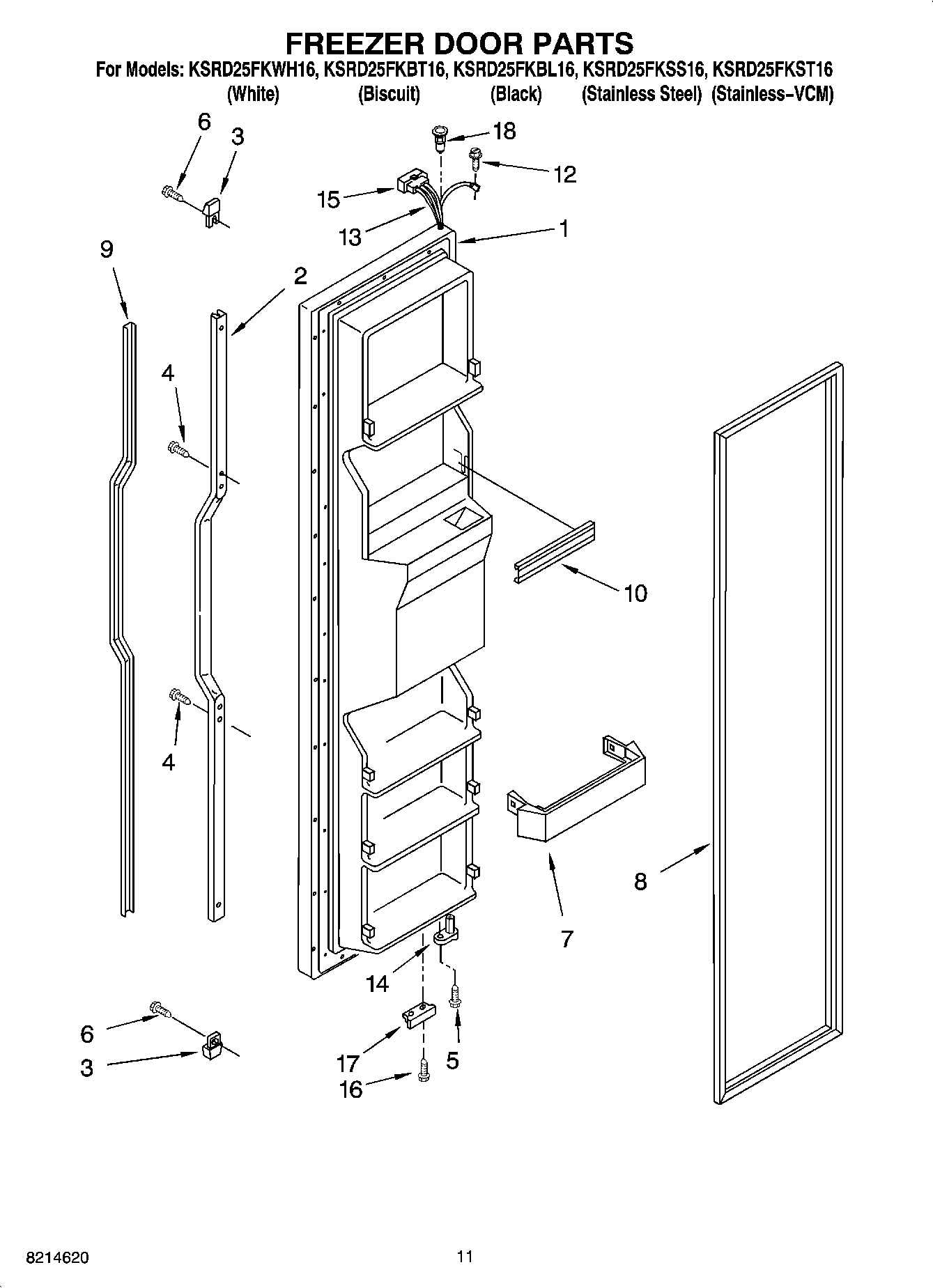

KSRD25FKSS16 07 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (Stainless-VCM)
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (Stainless Steel)
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (Black)
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (White)
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (Biscuit)
2	Retainer, Insert (Black)
2	Retainer, Insert (Biscuit)
2	Retainer, Insert
3	End Cap (Black)
3	End Cap, Handle (Biscuit)
3	End Cap, Handle
4	WP489491 Whirlpool Refrigerator Screw
5	WP3400012 Whirlpool Refrigerator Screw
6	WP3400852 Whirlpool Refrigerator Screw
7	Shelf Bin (3)
8	2159074 Whirlpool Door Gasket Seal
8	2159082 Whirlpool Freezer Door Gasket Black
9	Insert, Handle (Biscuit)
9	Insert, Handle
9	Handle, Insert (Black)
10	WPW10307490 Whirlpool Door Trim Assembly
12	WP489128 Whirlpool Refrigerator Screw
13	Wire Harness
14	WP2182179 Whirlpool Cam Closer
15	WP2154473 Whirlpool Refrigerator Connector
16	WP489483 Whirlpool Screw
17	WP2206629B Whirlpool Refrigerator Bracket
18	Thimble, Top (For Stainless Steel Models)
18	WP2182181 Whirlpool Refrigerator Thimble
