KSRD25FKWH02 03 – REFRIGERATOR SHELF

KSRD25FKWH02 03 – REFRIGERATOR SHELF

Written by

in

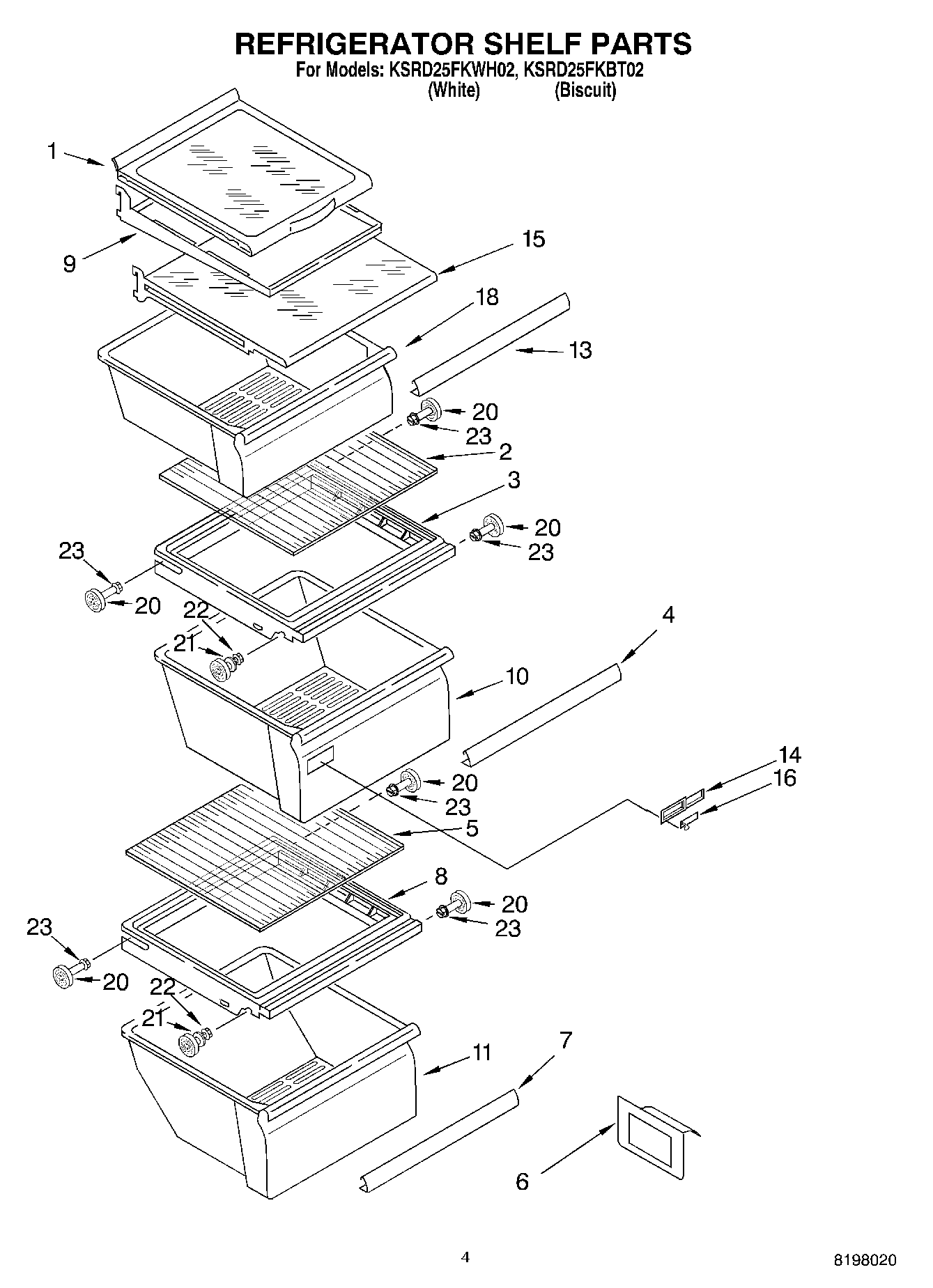

KSRD25FKWH02 03 – REFRIGERATOR SHELF

Products

PositionProduct
1Shelf & Roller Assembly
3W10508993 Whirlpool Refrigerator Cover Pan
5W10864399 Whirlpool Glass Shelf
62179350 Whirlpool Refrigerator Deflector
7WP2179234 Whirlpool Refrigerator Pan Trim
8Cover, Meat Pan
9Frame, Shelf
10PAN-CRISPR
11WP2188664 Whirlpool Dishwasher Meat Crisper Pan
13WP2179243 Whirlpool Refrigerator Pan Trim
14WP2179343 Whirlpool Refrigerator Control Body
15Shelf Assembly
16WP2179342 Whirlpool Refrigerator Slide
18W11497323 Whirlpool Snack Pan
20WP2196483 Whirlpool Refrigerator Shelf Stud
21W11223328 Whirlpool Refrigerator Shelf Stud
22WP3400806 Whirlpool Screw
23WP3-24004-109 Whirlpool Refrigerator Screw
