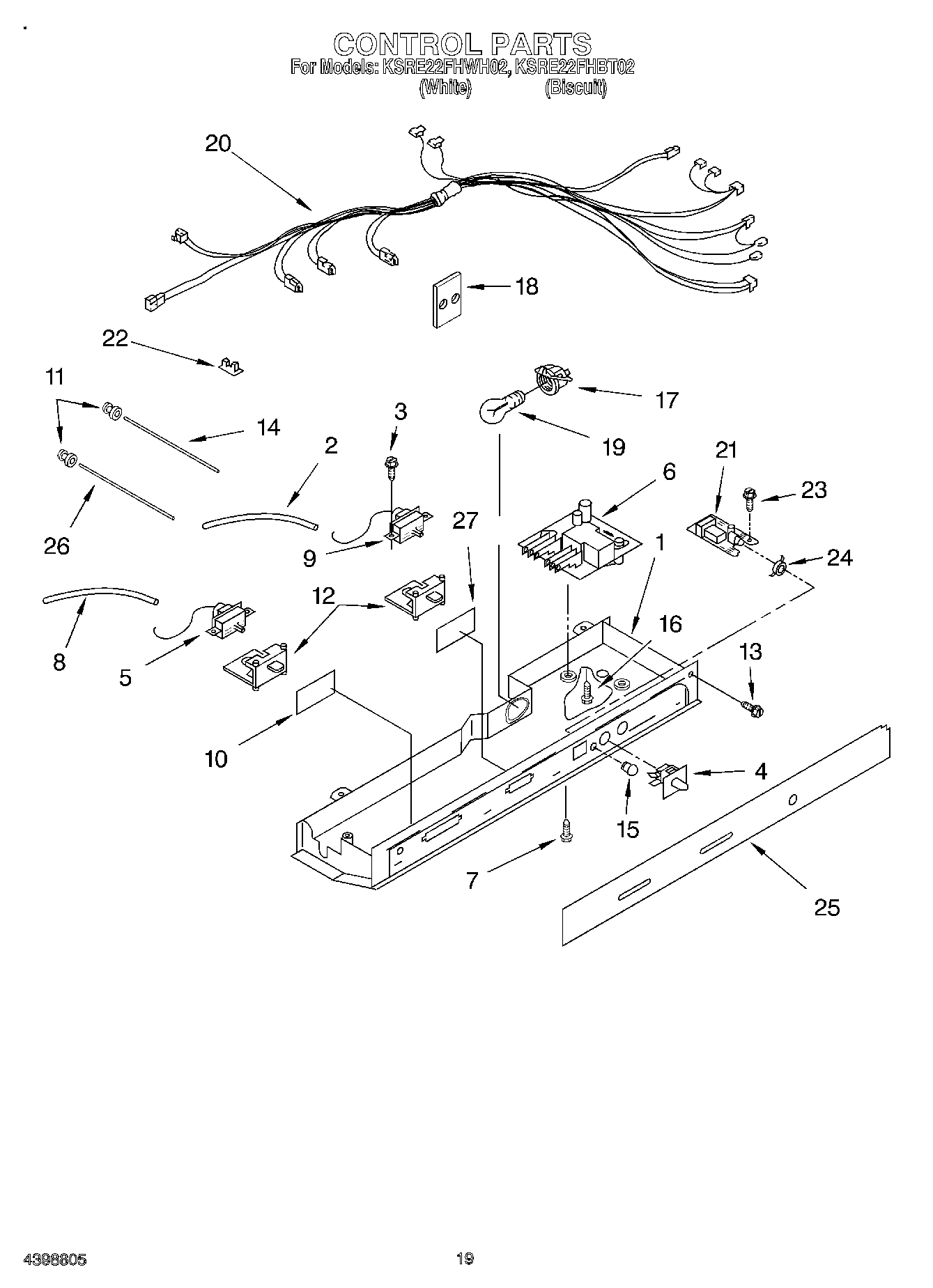

KSRE22FHBT02 12 – CONTROL, OPTIONALadmin2025-04-26T12:21:11+00:00KSRE22FHBT02 12 – CONTROL, OPTIONAL
Products
| Position | Product |
|---|
| 1 | 2200135 Whirlpool Refrigerator Control Box |
| 2 | WP2196003 Whirlpool Refrigerator Bar Riser |
| 4 | WP2149705 Whirlpool Refrigerator Door Switch |
| 5 | WP2182770 Whirlpool Refrigerator Thermostat |
| 6 | 4388932 Whirlpool Refrigerator Adaptive Defrost Timer Kit |
| 7 | 489392 Whirlpool Refrigerator Screw |
| 9 | WP2161460 Whirlpool Refrigerator Thermostat |
| 10 | 2172940 Whirlpool Window |
| 11 | Grommet, Light Fiber |
| 12 | 2161466 Whirlpool Refrigerator Slide |
| 14 | Fiber Optic |
| 15 | COVER, LIGHT LENS |
| 16 | WP488488 Whirlpool Refrigerator Screw |
| 17 | 4387478 Whirlpool Refrigerator Light Socket |
| 18 | 2172931 Whirlpool Refrigerator Shield |
| 19 | RANGE ONLY 40W 120V APPL BULB |
| 20 | Harness, Control Box |
| 21 | P.C. Board Filter Indicator |
| 22 | CLIP, WIRING |
| 23 | 2006254 Whirlpool Refrigerator Screw |
| 24 | Retainer, Light Lens |
| 25 | Escutcheon, Control Box |
| 26 | Light Bar (FC) |
| 27 | 799344 Whirlpool Refrigerator Paint |
| 27 | 212643 Whirlpool Refrigerator Permagum Sealer |
| 27 | Window |
| 27 | 4210463RW Whirlpool Refrigerator Coil Brush |
| 27 | 350956 Whirlpool Spray Assembly |
| 27 | Almond (Uncut) |
| 27 | WPW10312301 Whirlpool Refrigerator Ice Container |
| 27 | 72017 Whirlpool Appliance Touch-Up Paint White |
| 27 | 350930 Whirlpool White Spray Paint |
| 27 | WP72107 Whirlpool Touchup |
| 27 | PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) |
| 27 | 833938 Whirlpool Refrigerator Terminal |
| 27 | 876370 Whirlpool Refrigerator Insulation |
| 27 | WP503695 Whirlpool Refrigerator Sealer |
| 27 | WP505587 Whirlpool Refrigerator Sealer |
| 27 | WP542638 Whirlpool Refrigerator Grease |
| 27 | Torx Key |
| 27 | 511873 Whirlpool Refrigerator Paint |
| 27 | TAPE, VINYL (3/4 X 108``) |
| 27 | CEMENT, ALUMILASTIC (1 1/4 OZ.) |
| 27 | Enamel, Black (1 Qt. Uncut) |
| 27 | WPL 799833 |
| 27 | WPL 876029 |
| 27 | 4392901 Whirlpool Biscuit Spray Paint |
| 27 | 285006 Whirlpool Spray |
| 27 | 72032 Whirlpool Touch Up Paint Black |
| 27 | 4392899 Whirlpool Biscuit Touch-Up Paint |
| 27 | 350942 Whirlpool Spray Paint |
| 27 | 606755 Whirlpool Refrigerator Bag |
