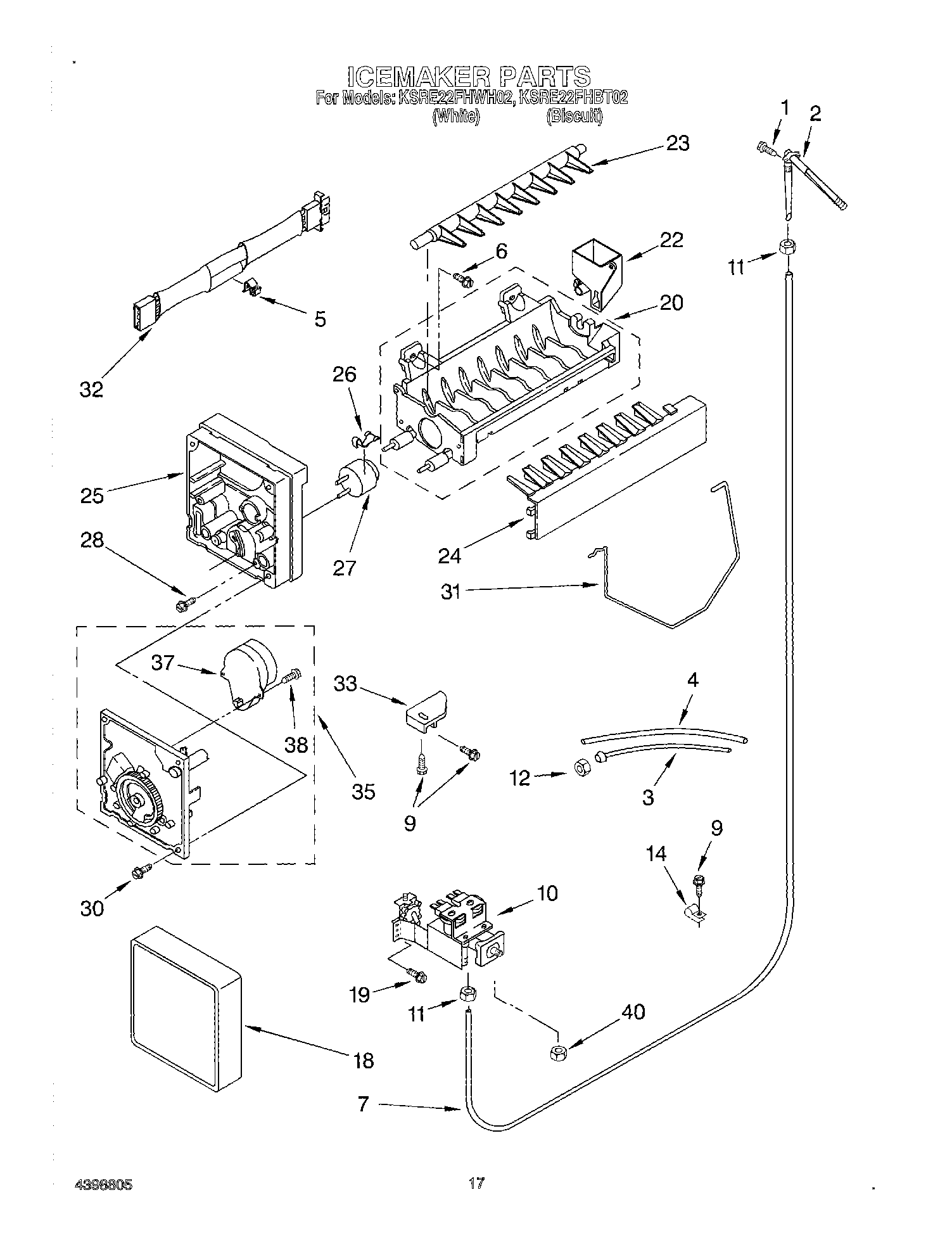

KSRE22FHWH02 11 – ICE MAKERadmin2025-04-26T12:19:21+00:00KSRE22FHWH02 11 – ICE MAKER ProductsPositionProduct2WP2196157 Whirlpool Fill Tube3W11496481 Whirlpool Refrigerator Water Tube48201597 Whirlpool Inlet Water Fill Tube Kit Filter5WP628379 Whirlpool Refrigerator Clip6WP488163 Whirlpool Refrigerator Screw7W10823511 Whirlpool Refrigerator Water Tube9WP489478 Whirlpool Refrigerator Screw10W10408179 Whirlpool Ice Maker Water Inlet Fill Valve Kit11WP627018 Whirlpool Refrigerator Nut12Nut, Compression14WP488366 Whirlpool Refrigerator Clamp18WPW10289690 Whirlpool Ice Maker Cover19WPW10141625 Whirlpool Refrigerator Screw Assembly20WPW10190929 Whirlpool Refrigerator Ice Maker Mold20WP542638 Whirlpool Refrigerator Grease22WP628356 Whirlpool Refrigerator Fill Cup23WP627843 Whirlpool Refrigerator Ejector Arm24WP2182124 Whirlpool Refrigerator Stripper Arm25WP2195914 Whirlpool Refrigerator Ice Maker Housing26WP2315522 Whirlpool Refrigerator Clip27WP627985 Whirlpool Icemaker Cycling Thermostat27Cement Alumilastic)288533917 Whirlpool Refrigerator Screw30WP681249 Whirlpool Screw Assembly31W11342242 Whirlpool Refrigerator Ice Level Arm32WP2187464 Whirlpool Refrigerator Wire Harness33W11500948 Whirlpool Refrigerator Bracket37W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly38489136 Whirlpool Refrigerator Screw40Nut, Compression1004317943 Whirlpool Refrigerator Ice Maker Assembly
