KSRE27FHBT01 04 – FREEZER LINER

KSRE27FHBT01 04 – FREEZER LINER

Written by

in

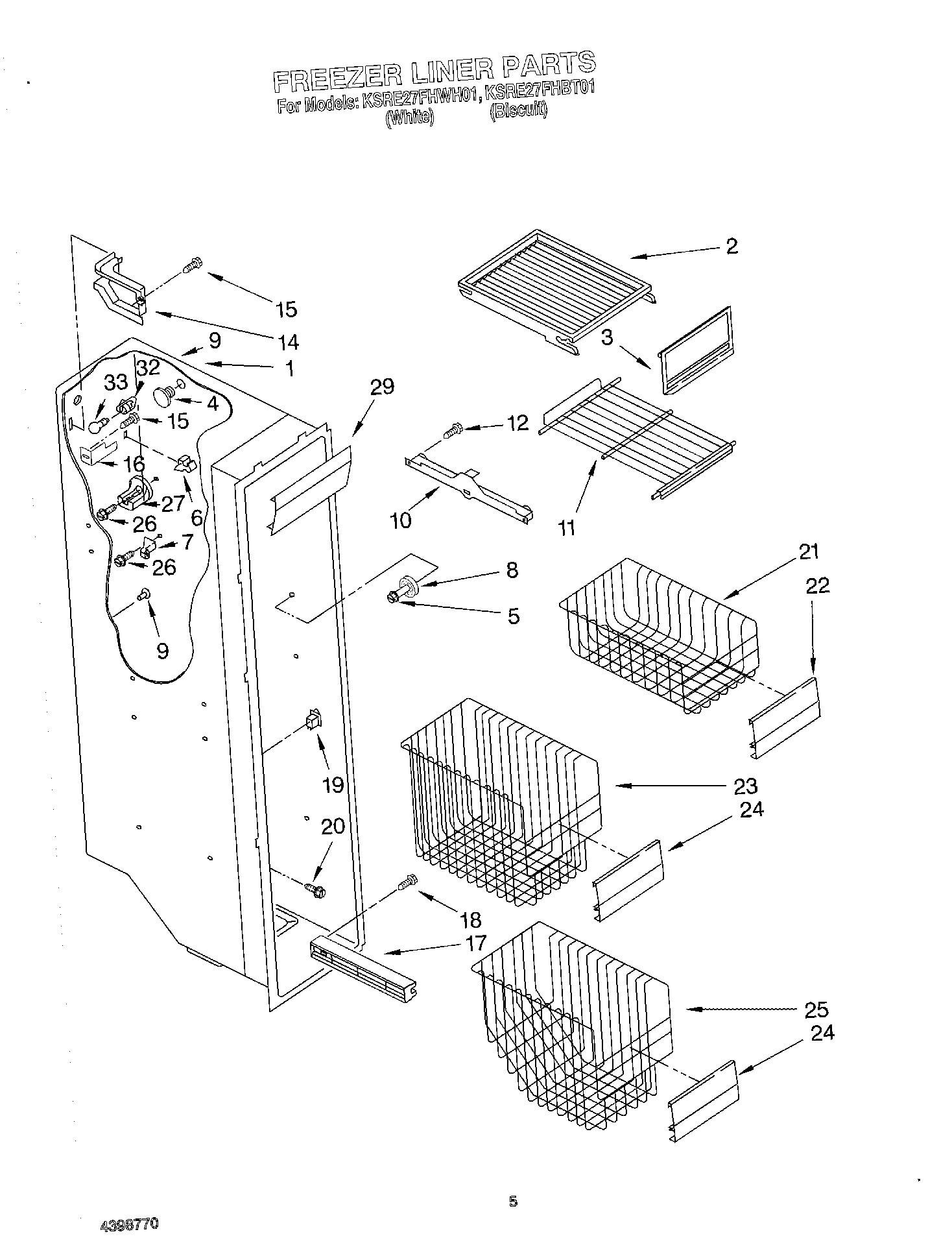

KSRE27FHBT01 04 – FREEZER LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Shelf, Top Compartment
3WP2171713 Whirlpool Refrigerator Ice Door
4940014 Whirlpool Refrigerator Primary Button Plug
5WP3400806 Whirlpool Screw
62215823 Whirlpool Refrigerator Clip
74388405 Whirlpool Refrigerator Shelf Stud
8WP2196483 Whirlpool Refrigerator Shelf Stud
9Grommet
10W10845583 Whirlpool Refrigerator Track
10W10845585 Whirlpool Refrigerator Track
11WP2174267 Whirlpool Refrigerator Wire Shelf
12718257 Whirlpool Dishwasher Screw
14Cover, Wiring
15SCREW
16Bracket, Fill Tube
17Slide, Basket (Left Side (2))
17Slide, Basket (Right Side (2))
18W10759522 Whirlpool Screw
19W11457217 Whirlpool Refrigerator Rocker Switch Combination
20WP489478 Whirlpool Refrigerator Screw
21Basket
22Front, Basket
23Basket, Tall
242305580K Whirlpool Refrigerator Basket Trim
25Basket, Slope
26W10142289 Whirlpool Air Conditioner Screw
27Stud, Rear
292171705 Whirlpool Refrigerator Light Lens
324387478 Whirlpool Refrigerator Light Socket
33RANGE ONLY 40W 120V APPL BULB
