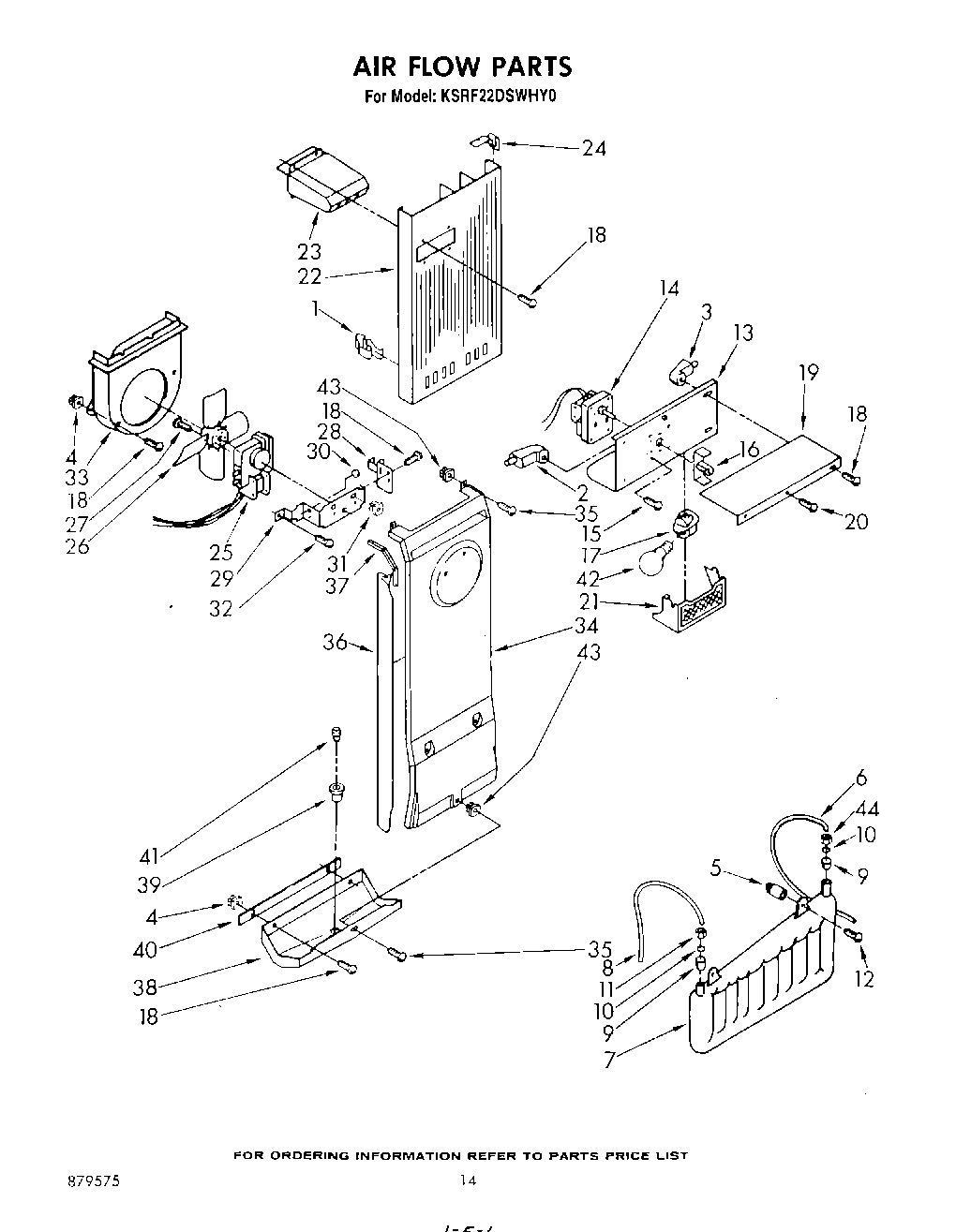

KSRF22DSALY0 08 – AIR FLOW

Products

Position	Product
1	2215823 Whirlpool Refrigerator Clip
2	Support, Stud
3	Support, Stud
4	Grommet
5	Grommet
7	WP2256126 Whirlpool Refrigerator Reservoir
8	W10823511 Whirlpool Refrigerator Water Tube
9	4387491 Whirlpool Refrigerator Insert
10	``O`` Ring Seal
11	Nut, Compression
12	Screw, 8 x 1-1/2
13	Bracket, Dispenser Motor
14	Motor
15	303776 Whirlpool Dishwasher Screw
16	COUPLING AUGER MOTOR
17	4387478 Whirlpool Refrigerator Light Socket
18	W11624204 Whirlpool Screw
19	Cover, Ice Dispenser
20	WP489128 Whirlpool Refrigerator Screw
21	Lens, Dispenser Light
22	Duct, Air
23	Air Deflector
24	Baffle, Air
25	482469 Whirlpool Refrigerator Evaporator Fan Motor Kit
26	Blade, Fan
27	WP487887 Whirlpool Refrigerator Screw
28	Fan, Bracket Double
29	Fan Bracket, Single
30	Grommet (3)
31	Screw Grommet
32	WP489069 Whirlpool Compactor Screw
33	Scroll Fan
34	Cover, Evaporator
35	WP488729 Whirlpool Refrigerator Door Screw
36	Gasket, Evaporator
37	Gasket, Cover Top
38	Drain Pan
39	Fitting, Drain Pan
40	Gasket, Drain Pan
41	Cap, Drain
42	RANGE ONLY 40W 120V APPL BULB
43	Screw, Grommet
44	Nut, Compression
