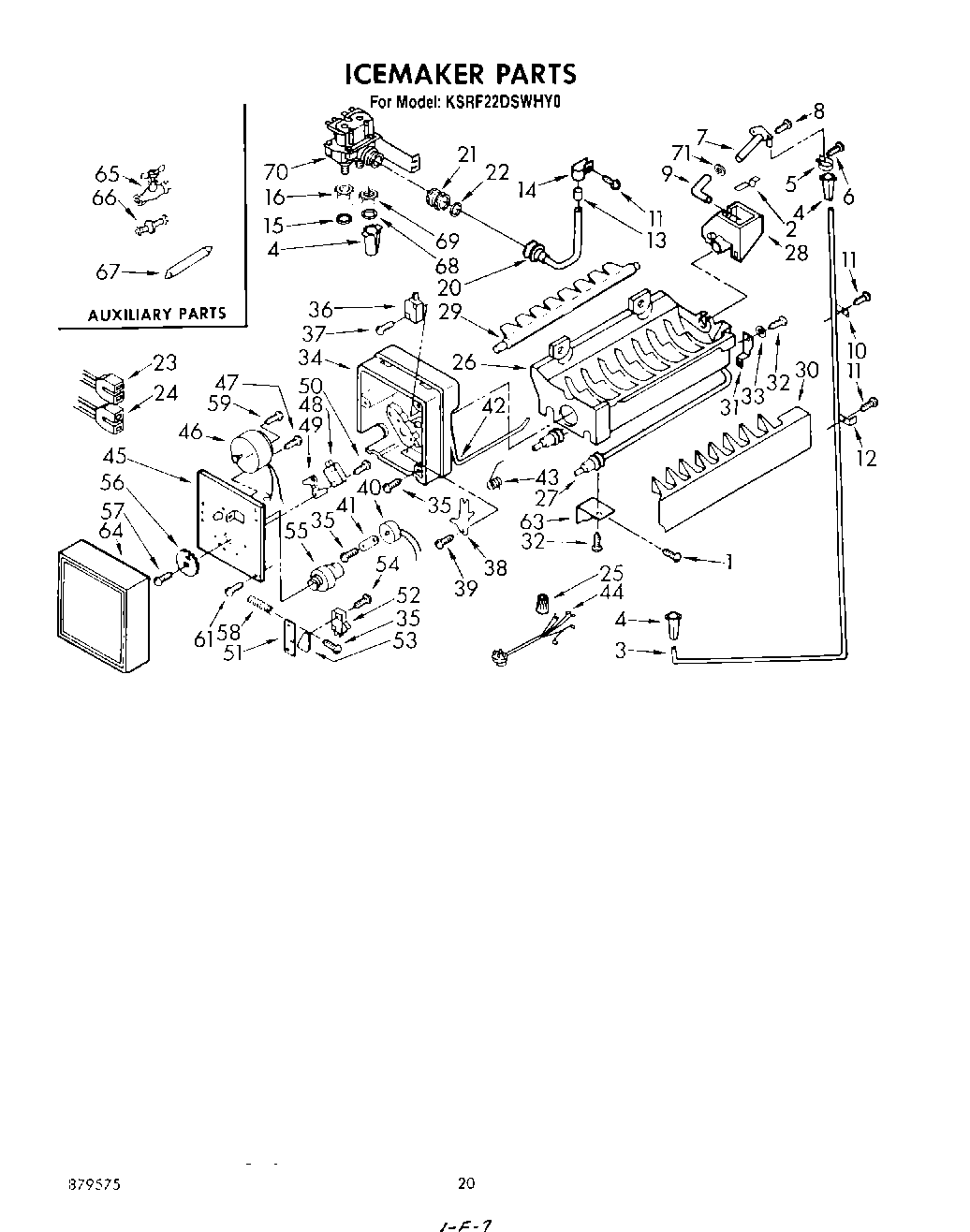

KSRF22DSPLY0 11 – ICE MAKER

Products

Position	Product
1	SCREW
2	Clip
3	W10823511 Whirlpool Refrigerator Water Tube
4	4387491 Whirlpool Refrigerator Insert
5	WP488878 Whirlpool Refrigerator Tube Clamp
6	WP965173 Whirlpool Dishwasher Screw
7	WP2196157 Whirlpool Fill Tube
8	WP98165 Whirlpool Screw
9	Tube, Water Inlet
10	WP488366 Whirlpool Refrigerator Clamp
11	WP489069 Whirlpool Compactor Screw
12	Clamp, Water Line (2)
13	WP2158826 Whirlpool Refrigerator Dampener
14	Clamp Tube
15	“O“ Ring Seal (4)
16	WP627018 Whirlpool Refrigerator Nut
20	Tube, Inlet Valve
21	Nut, Valve
22	WP16123 Whirlpool Washer
23	WPL 548734
24	Wiring, Dispensing Valve
25	Wire Connector
26	Mold & Heater Assembly (Includes Illus. 43)
27	Heater, Mold
28	Bearing & Inlet
29	WP627843 Whirlpool Refrigerator Ejector Arm
30	Stripper, Ice
31	Bracket, Shut-Off Arm
32	WP489128 Whirlpool Refrigerator Screw
33	F
34	Support
35	Screw, 8-32 x 1
36	Switch, S.P.D.T. (2)
37	Screw, 4-24 x 3/4
38	Lever, Arm
39	Screw, Shoulder
40	Thermostat (Alternate)
40	Thermostat
41	Clamp, Thermostat
42	Arm, Shut-Off
43	Spring, Shut-Off Arm
44	Wire Harness
45	Plate, Mounting
46	Motor
48	Switch, S.P.D.T.
49	Spacer, Switch (2)
50	Screw, 4-40 x 1
51	Plate, Valve
52	Switch, S.P.S.T.
53	Insulator
54	Screw
55	Cam
56	Gear
57	Screw
58	Spring
59	Screw, Ground
61	WP488787 Whirlpool Refrigerator Screw
63	WP2256087 Whirlpool Refrigerator Bracket
64	Cover
65	Valve, Shut-Off
66	Union, 1/4“ x 3/16“
67	Filter Kit
68	“O“ Ring Seal
69	Nut, Compression
70	4318046 Whirlpool Dual Water Inlet Valve
71	WP1106508 Whirlpool Refrigerator Gasket
