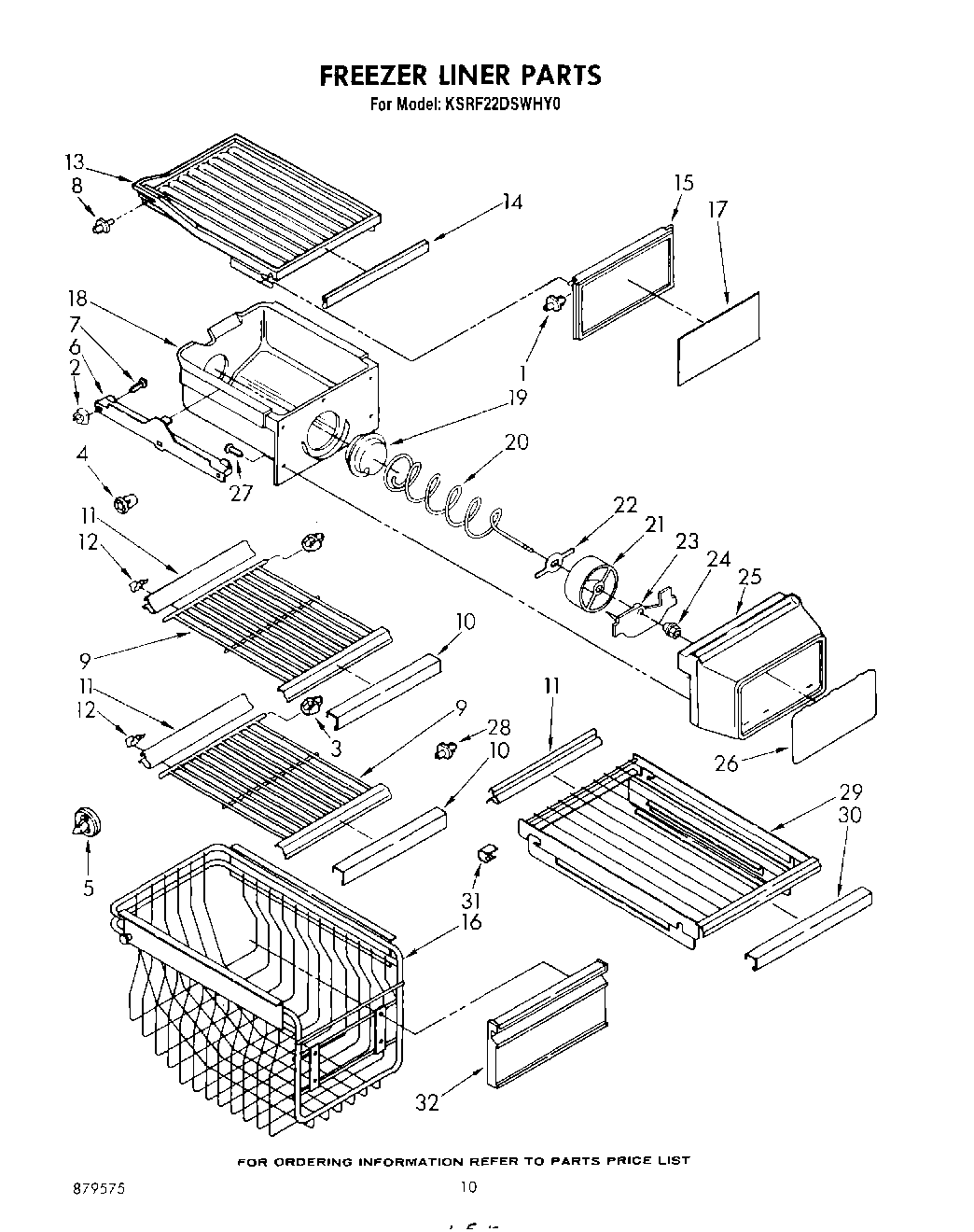

KSRF22DSWHY0 06 – FREEZER LINER

Products

Position	Product
1	Shelf, Stud
2	Grommet
3	Shelf Support
4	Grommet
5	Retainer Stud
6	Slide, Freezer Bin
7	Screw, 8 x 1
8	Stud, Shelf (2)
9	Shelf, Freezer
10	Trim, Shelf
11	Reflector, Shelf
12	Clip, Reflector (2)
13	Solid Shelf
14	Trim, Shelf
15	Front, Ice Compartment
16	Freezer, Basket
17	Overlay, Ice Compartment
18	Ice Container
19	W10749708 Whirlpool Refrigerator Coupling
20	Conveyor, Ice Container
22	4388736 Whirlpool Refrigerator Ice Dispenser Bucket Bin Conveyor Auger Drum
23	Baffle
24	Nut, Bearing
25	Front, Cover Container
26	Overlay, Front Cover
27	WP488787 Whirlpool Refrigerator Screw
28	Stud, Shelf
29	Shelf, Freezer Basket
30	Trim, Shelf Basket
31	Clip, Reflector
32	Front, Freezer Basket
