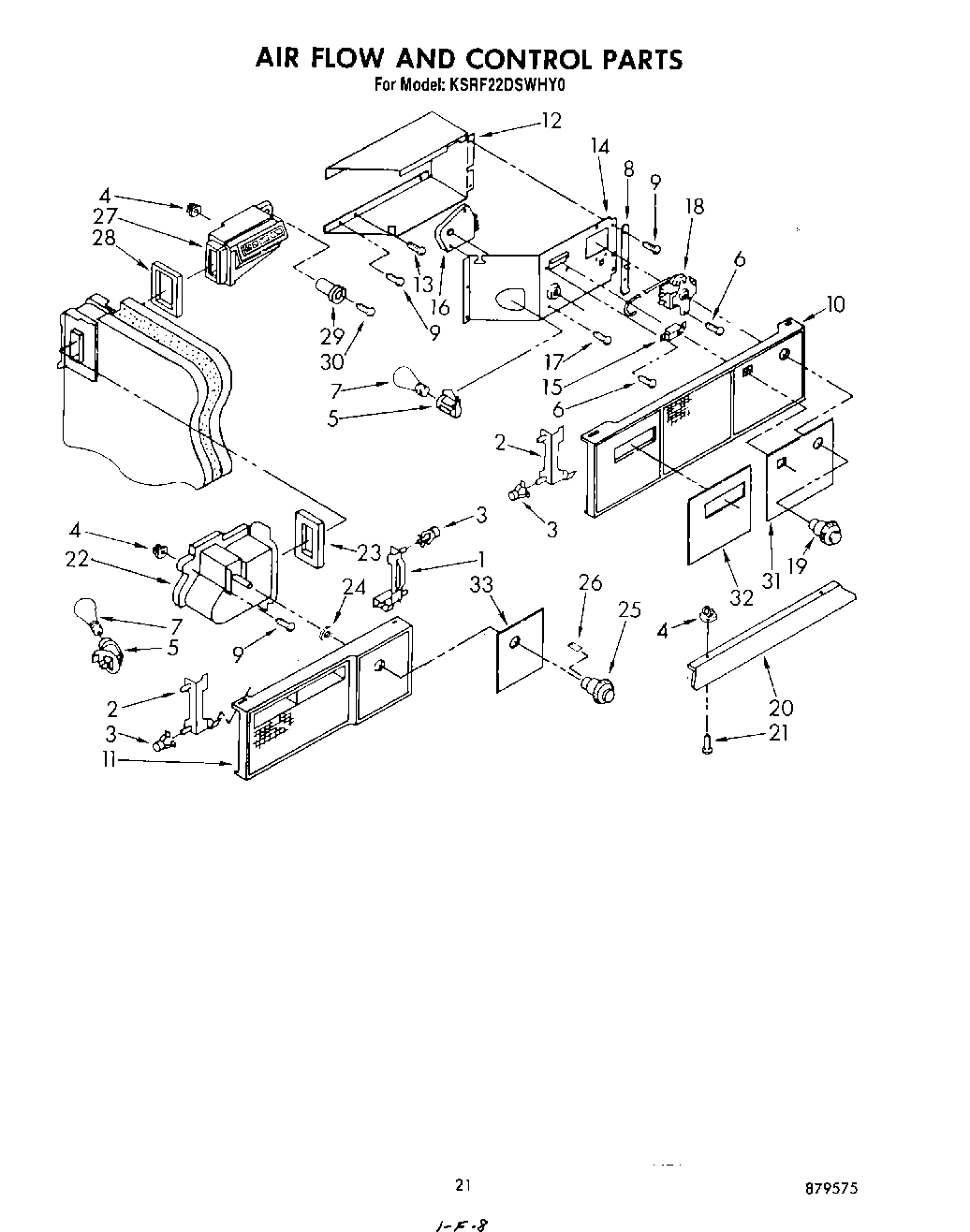

KSRF22DSWHY0 12 – AIR FLOW AND CONTROL , LITERATURE

KSRF22DSWHY0 12 – AIR FLOW AND CONTROL , LITERATURE

Written by

in

KSRF22DSWHY0 12 – AIR FLOW AND CONTROL , LITERATURE

Products

PositionProduct
350930 Whirlpool White Spray Paint
Paint, Spray (13 Oz.) (Platinum)
350942 Whirlpool Spray Paint
285006 Whirlpool Spray
WPL LIT946553
Leveler (Thinner)
WPL LIT1107414
WPL LIT1107426
WPL LIT879575
350956 Whirlpool Spray Assembly
Toast
1Support, Light Lens (R.S.)
2Support, Light Lens (L.S.)
3Clip, Tubular
4Grommet
54387478 Whirlpool Refrigerator Light Socket
6WP489128 Whirlpool Refrigerator Screw
7RANGE ONLY 40W 120V APPL BULB
8Support, Light Lens
9W11624204 Whirlpool Screw
10Light, Lens
11Light Lens, Freezer
12Box, Control
13Screw, 8-32 x 3/8
14Control Box Front
15WP938213 Whirlpool Refrigerator Power Switch
16Defrost Timer
17WP3388228 Whirlpool Screw
18WP4317800 Whirlpool Refrigerator Thermostat
19Knob, Temperature Control
20Baffle, Liner Top
21WP489069 Whirlpool Compactor Screw
22Air Scoop Assembly
23Gasket, Air Scoop
24Retainer, Damper
25Control Knob
26Knob, Retainer
27Air Diffuser Assembly
28Gasket, Air Diffuser
29836667 Whirlpool Refrigerator Spacer
30Screw, 8 x 1-1/4 (3)
31Overlay, Light Lens (R.S)
32Overlay, Light Lens (L.S)
33511873 Whirlpool Refrigerator Paint
33WP505587 Whirlpool Refrigerator Sealer
33WP503695 Whirlpool Refrigerator Sealer
33212643 Whirlpool Refrigerator Permagum Sealer
33876370 Whirlpool Refrigerator Insulation
33WP72107 Whirlpool Touchup
33CEMENT, ALUMILASTIC (1 1/4 OZ.)
33Overlay, Light Lens (Freezer)
33799344 Whirlpool Refrigerator Paint
3372017 Whirlpool Appliance Touch-Up Paint White
33WP542638 Whirlpool Refrigerator Grease
33833938 Whirlpool Refrigerator Terminal
3372032 Whirlpool Touch Up Paint Black
33WPL 72112
33Golden Harvest (Uncut)
3372113 Whirlpool Touch-Up Paint
33606755 Whirlpool Refrigerator Bag
33WPL 876029
33Almond (Uncut)
33WPL 799833
33WPL 799832
33TAPE, VINYL (3/4 X 108“)
33Enamel, Black (1 Qt. Uncut)
