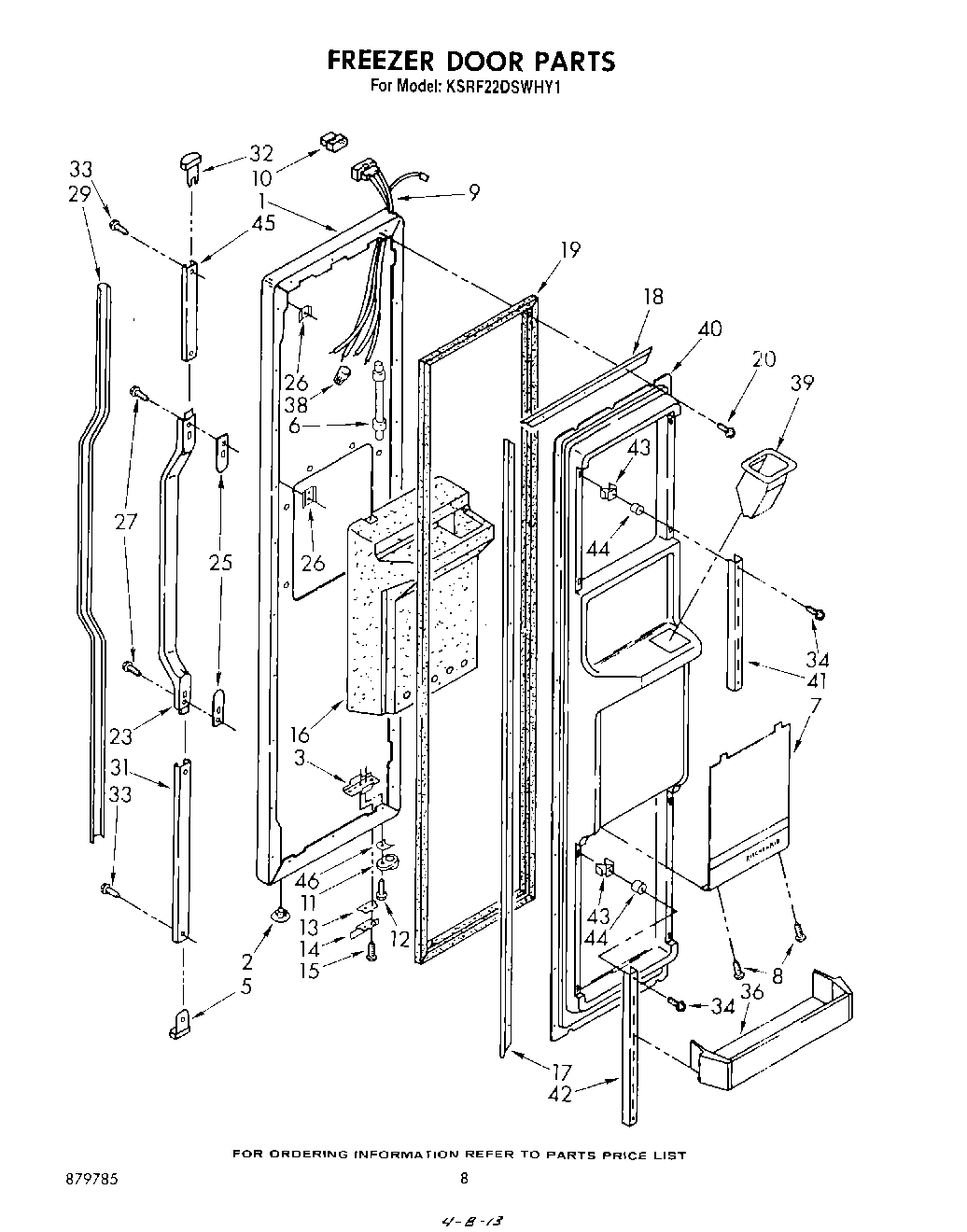

KSRF22DSWHY1 05 – FREEZER DOOR

Products

Position	Product
NI	Overlay, Ice Dispenser
1	Door, Freezer (White)
1	Door, Freezer (Almond)
1	Door, Freezer (Toast)
1	Door, Freezer (Platinum)
2	Hole Plug (2) (Almond)
2	Hole Plug (2) (Platinum)
2	Hole Plug (2) (Toast)
2	Hole Plug (2)
3	Tap Plate
5	End Cap, Handle Bottom
6	Tube, Door Wiring
8	WP488729 Whirlpool Refrigerator Door Screw
9	Plug, Crossover
10	Connector, Plug
11	4318165 Whirlpool Refrigerator Door Closure Cam Kit
12	WP489069 Whirlpool Compactor Screw
13	Shim
14	Bracket, Door Stop
15	Screw, 89 x 5/8
15	Screw (Repair)
16	Insulation, Dispenser
17	Retainer Side, Gasket
18	Retainer, Top & Bottom Gasket
19	2188405A Whirlpool Refrigerator Door Gasket
20	SCREW
23	Handle
25	Spacer, Handle
26	Screw Anchor (2)
29	Insert, Handle
29	Insert, Handle (Black)
31	Retainer, Insert
32	End Cap (2)
33	Screw
34	Screw, 8-15 x 1 1/4 (8)
36	Cantilever, Door Shelf
38	Wire Connector
39	Chute, Ice
40	Interior, Door Panel
41	Shelf Ladder Top (2)
42	Shelf Ladder Bottom (2)
43	Expansion Clip
44	Spacer, Shelf
45	Retainer, Insert
46	WP1104787 Whirlpool Refrigerator Shim
