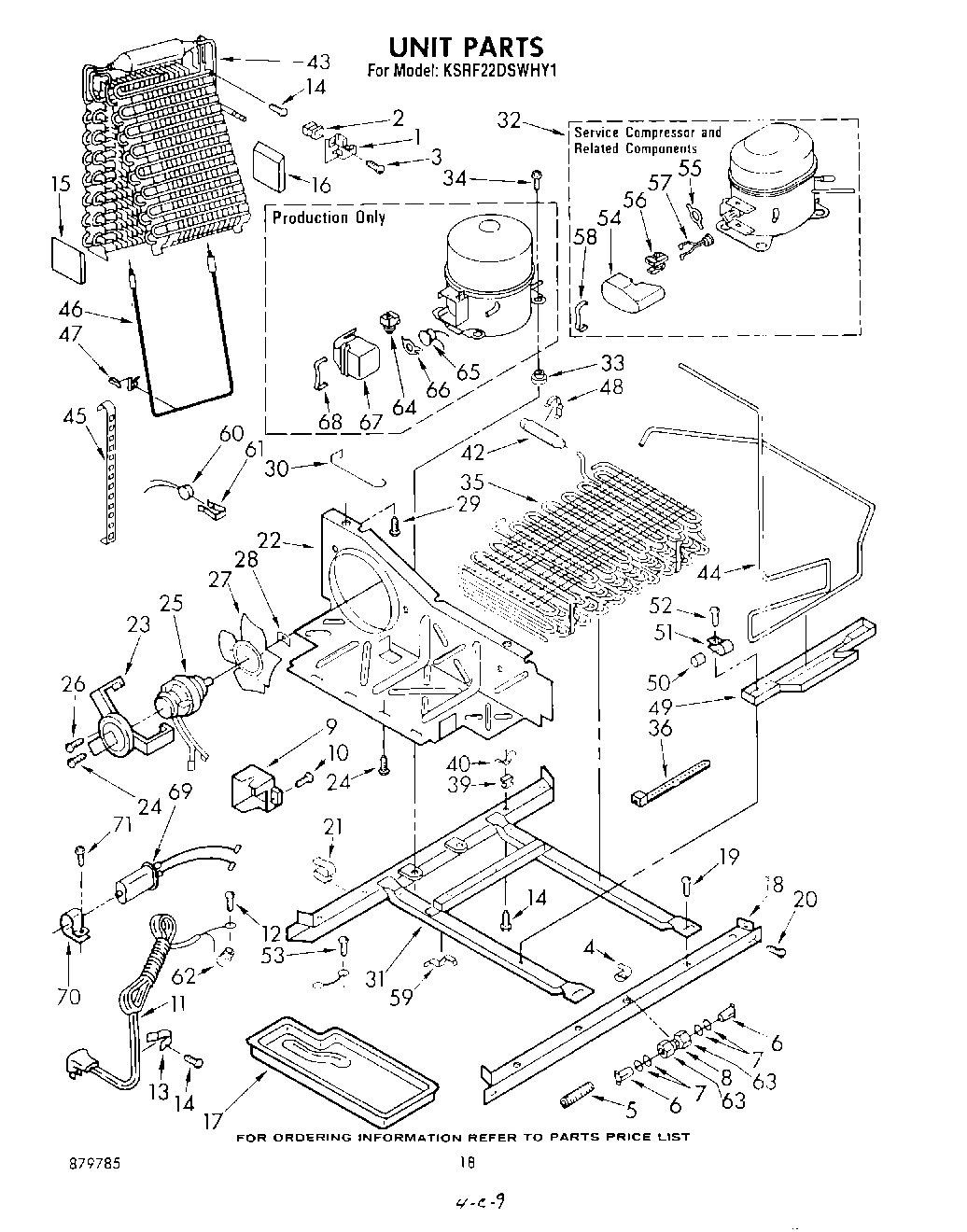

KSRF22DSWHY1 10 – UNIT

Products

Position	Product
1	Support, Evaporator
2	Grommet, Screw
3	SCREW
4	Clip, Tube (3)
5	Spring-Tube
6	4387491 Whirlpool Refrigerator Insert
7	“O“ Ring Seal (4)
8	WP4211117 Whirlpool Refrigerator Connector
9	Box, Junction
10	WP488729 Whirlpool Refrigerator Door Screw
11	Cord, Service
12	Screw, 8-32 x 3/8
13	549193 Whirlpool Refrigerator Power Clamp
14	W11624204 Whirlpool Screw
15	Air Baffle, Evaporator
16	Baffle, Air
17	Tray, Evaporator
18	Rail, Front
19	Screw, 1/4-28 x 1/2 (2)
20	489340 Whirlpool Refrigerator Screw
20	Screw (Repair)
21	Clip, Wire (2)
22	Baffle, Air
23	Bracket, Motor
24	Screw, 8 x 3/8
25	833697 Whirlpool Condenser Fan Motor
26	681390 Whirlpool Refrigerator Screw
27	Fan, Blade
28	WP486692 Whirlpool Refrigerator Nut
29	Screw, 8-15 x 3/8
30	Guard, Fan
31	Frame
32	Compressor Kit (Includes, Items 72, 73, 74, 75 & 76) (Also Order 876765 Tube Kit)
33	876811 Whirlpool Grommet
35	Condenser & Precooler
36	Strap
39	Grommet (4)
40	Clamp (4)
42	W10843121 Whirlpool Refrigerator Tube
43	Evaporator
44	Exchanger, Heat
45	Heat Shield
46	WP549433 Whirlpool Refrigerator Heater
47	Heater, Clamp (4)
48	Clamp
49	Pan, Drip
50	Dampener (2)
51	Clamp Tube
52	WPW10141625 Whirlpool Refrigerator Screw Assembly
53	303776 Whirlpool Dishwasher Screw
54	WPL 549505
55	Spring, Overload
56	Relay
57	Overload
58	Cover, Spring
59	Clip (2)
60	WP4387489 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
61	Clamp
62	Wire Connector
63	WP245183 Whirlpool Nut
64	Relay
65	Overload
66	Overload Spring
67	Case, Relay
68	Spring, Case
69	Running Capacitor
70	Clamp, Capacitor
71	978030 Whirlpool Refrigerator Valve
71	WP978025 Whirlpool Refrigerator Valve
71	978026 Whirlpool Refrigerator Primary Valve
71	VALVE, ACCESS (1/2“)
71	876764 Whirlpool Refrigerator Primary Valve
71	978027 Whirlpool Refrigerator Primary Valve
71	WP489128 Whirlpool Refrigerator Screw
71	VALVE, ACCESS (5/8“)
