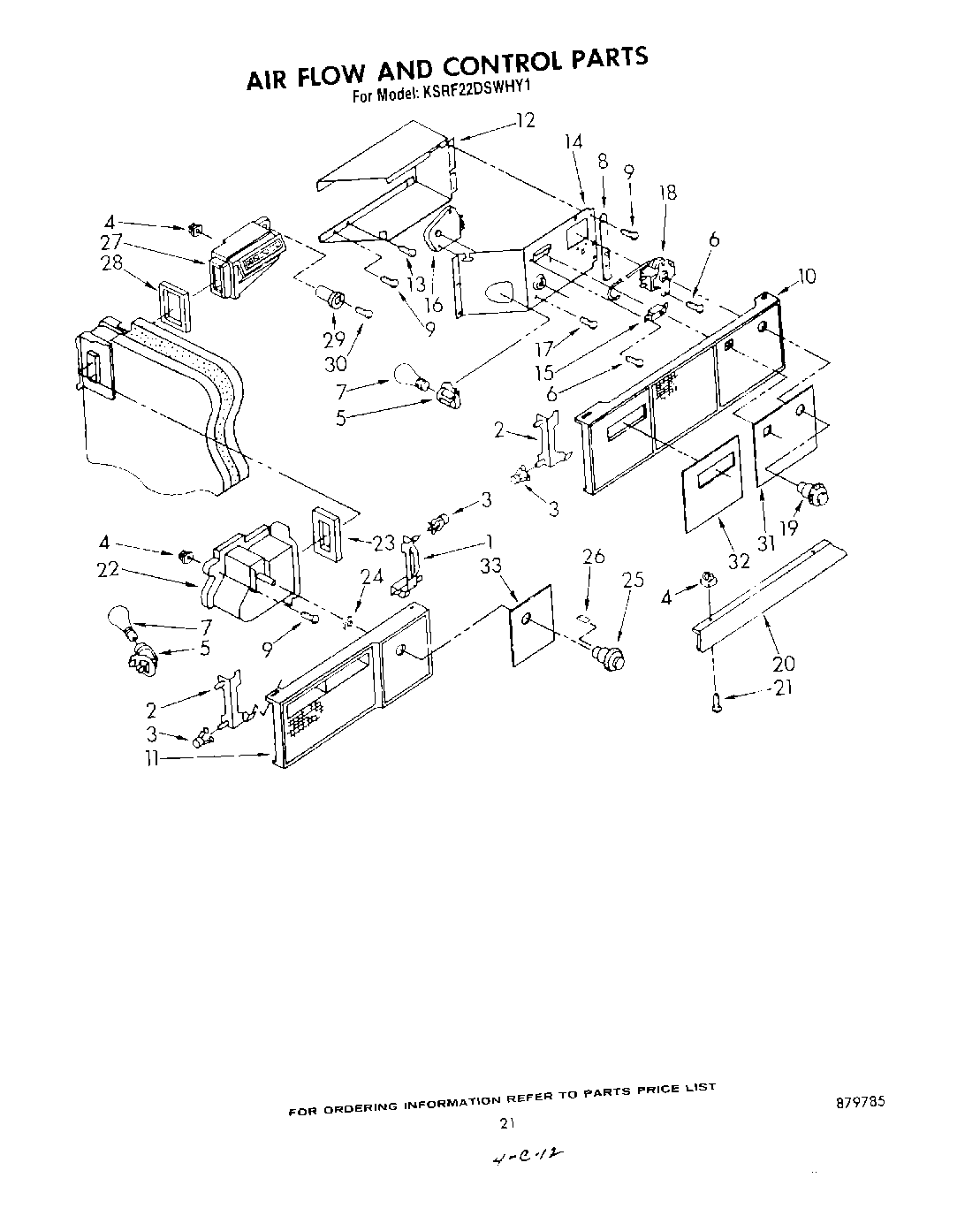

KSRF22DSWHY1 12 – AIR FLOW AND CONTROL , LITERATURE

KSRF22DSWHY1 12 – AIR FLOW AND CONTROL , LITERATURE

Written by

in

KSRF22DSWHY1 12 – AIR FLOW AND CONTROL , LITERATURE

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Paint, Spray (13 Oz.) (Platinum)
	350942 Whirlpool Spray Paint
	285006 Whirlpool Spray
	WPL LIT1107426
	Leveler (Thinner)
	WPL LIT1107414
	WPL LIT1107812
	WPL LIT879785
	350956 Whirlpool Spray Assembly
	Toast
1	Support, Light Lens (R.S.)
2	Support, Light Lens (L.S.)
3	Clip, Tubular
4	Grommet
5	4387478 Whirlpool Refrigerator Light Socket
6	WP489128 Whirlpool Refrigerator Screw
7	RANGE ONLY 40W 120V APPL BULB
8	Support, Light Lens
9	W11624204 Whirlpool Screw
10	Light, Lens
11	Light Lens, Freezer
12	Box, Control
13	Screw, 8-32 x 3/8
14	Control Box Front
15	WP938213 Whirlpool Refrigerator Power Switch
16	Defrost Timer
17	WP3388228 Whirlpool Screw
18	WP4317800 Whirlpool Refrigerator Thermostat
19	Knob, Temperature Control
20	Baffle, Liner Top
21	WP489069 Whirlpool Compactor Screw
22	Air Scoop Assembly
23	Gasket, Air Scoop
24	Retainer, Damper
25	Control Knob
26	Knob, Retainer
27	Air Diffuser Assembly
28	Gasket, Air Diffuser
29	836667 Whirlpool Refrigerator Spacer
30	Screw, 8 x 1-1/4 (3)
31	Overlay, Light Lens (R.S)
32	Overlay, Light Lens (L.S)
33	Enamel, New Avocado (1 Qt. Uncut)
33	TAPE, VINYL (3/4 X 108“)
33	WP542638 Whirlpool Refrigerator Grease
33	WP505587 Whirlpool Refrigerator Sealer
33	CEMENT, ALUMILASTIC (1 1/4 OZ.)
33	WP503695 Whirlpool Refrigerator Sealer
33	WP72107 Whirlpool Touchup
33	876370 Whirlpool Refrigerator Insulation
33	Overlay, Light Lens (Freezer)
33	799344 Whirlpool Refrigerator Paint
33	72017 Whirlpool Appliance Touch-Up Paint White
33	Enamel, Black (1 Qt. Uncut)
33	WPL 799832
33	Enamel, Coffee (1 Qt. Uncut)
33	511873 Whirlpool Refrigerator Paint
33	606755 Whirlpool Refrigerator Bag
33	WPL 72112
33	Golden Harvest (Uncut)
33	72113 Whirlpool Touch-Up Paint
33	72032 Whirlpool Touch Up Paint Black
33	833938 Whirlpool Refrigerator Terminal
33	Almond (Uncut)
33	WPL 876029
33	212643 Whirlpool Refrigerator Permagum Sealer
33	WPL 799833
