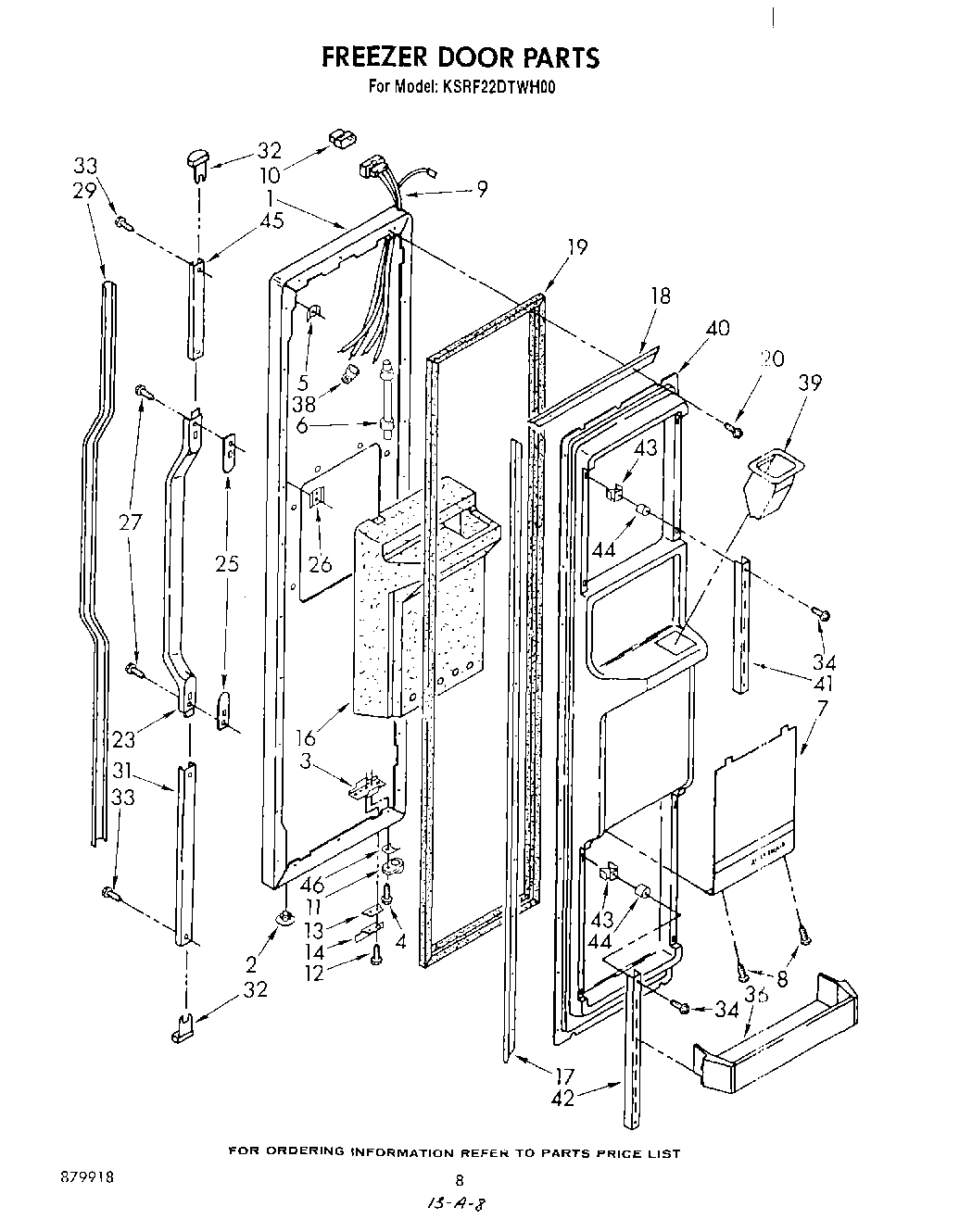

KSRF22DTAL00 05 – FREEZER DOOR

Products

Position	Product
1	Door, Freezer (White)
1	Door, Freezer (Almond)
1	Door, Freezer (Platinum)
1	Door, Freezer (Toast)
2	Hole Plug (2) (Toast)
2	Hole Plug (2) (Platinum)
2	Hole Plug (2) (Almond)
2	Hole Plug (2)
3	Tap Plate
4	WP489069 Whirlpool Compactor Screw
5	WP939101 Whirlpool Refrigerator Plate
6	Tube, Door Wiring
7	Overlay, Ice Dispenser
9	Plug, Crossover
10	Connector, Plug
11	4318165 Whirlpool Refrigerator Door Closure Cam Kit
12	Screw, 89 x 5/8
12	Screw (Repair)
13	Shim
14	Bracket, Door Stop
16	Insulation, Dispenser
17	Retainer Side, Gasket
18	Retainer, Top & Bottom Gasket
19	2188405A Whirlpool Refrigerator Door Gasket
20	SCREW
23	Handle
25	Spacer, Handle
26	Screw Anchor (2)
27	WP488729 Whirlpool Refrigerator Door Screw
29	Insert, Handle
31	Retainer, Insert
32	End Cap (2)
33	Screw, 10-32 x 5/8
34	Screw, 8-15 x 1 1/4 (8)
36	Cantilever, Door Shelf
38	Wire Connector
39	Chute, Ice
40	Interior, Door Panel
41	Shelf Ladder Top (2)
42	Shelf Ladder Bottom (2)
43	Expansion Clip
44	Spacer, Shelf
45	Retainer, Insert
46	WP1104787 Whirlpool Refrigerator Shim
