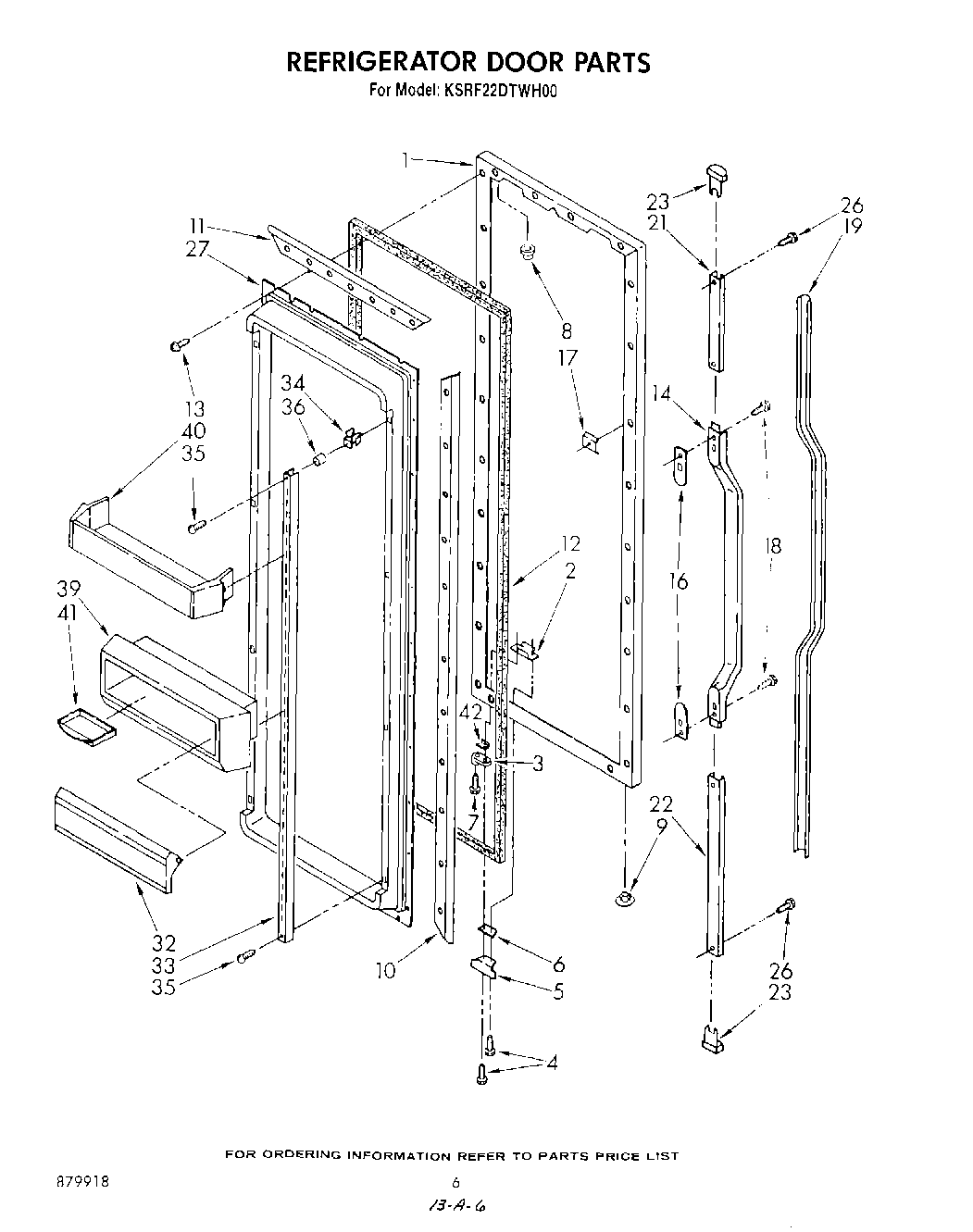

KSRF22DTTO00 04 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator, Door Panel (Toast)
1	Refrigerator, Door Panel (White)
1	Refrigerator, Door Panel (Almond)
1	Refrigerator, Door Panel (Platinum)
2	Tap Plate
3	4318165 Whirlpool Refrigerator Door Closure Cam Kit
4	Screw, 89 x 5/8
4	Screw (Repair)
5	Bracket, Door Stop
6	Shim
7	WP489069 Whirlpool Compactor Screw
8	Cap, Hinge Sleeve (2)
9	Hole Plug (2)
10	Retainer Side, Gasket
11	Retainer, Top & Bottom
12	2188404A Whirlpool Refrigerator Door Gasket
13	SCREW
14	Handle
16	Spacer, Handle
17	Screw Anchor (2)
18	WP488729 Whirlpool Refrigerator Door Screw
19	Insert, Handle
21	Retainer, Insert
22	Retainer, Insert
23	End Cap (2)
26	Screw, 10-32 x 5/8
27	Interior Door, Panel
32	Compartment Door
33	Shelf Ladder
34	Expansion Clip
35	Screw, 8-15 x 1 1/4 (8)
36	Spacer, Shelf
39	Shelf, Door Cantilever Bin
40	Cantilever, Door Shelf
42	WP1104787 Whirlpool Refrigerator Shim
