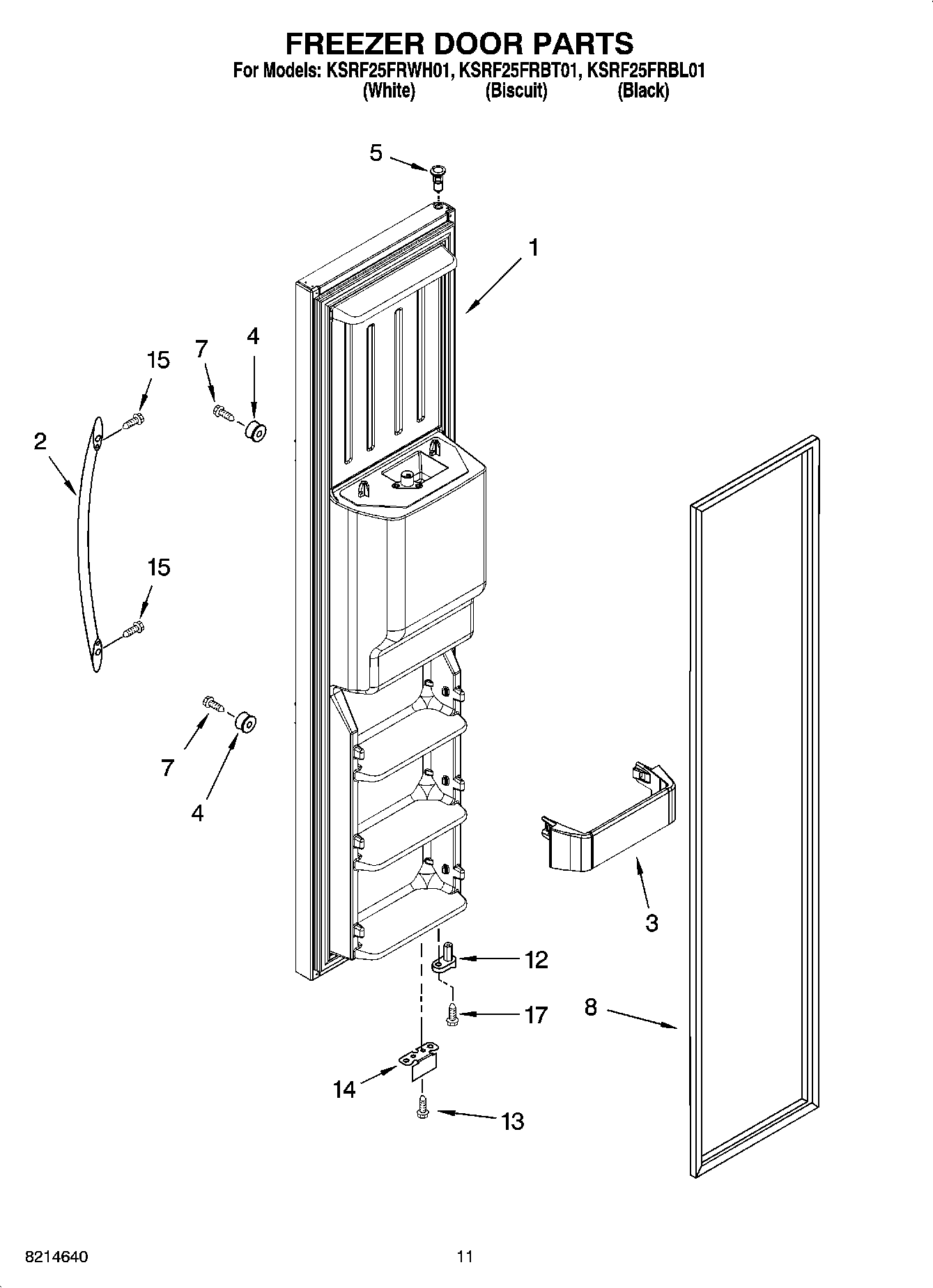

KSRF25FRBL01 07 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Black)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (White)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Biscuit)
2	Handle, Door (Black)
2	Handle (Biscuit)
2	Handle, Door (White)
3	Trivet (3)
4	WPW10170540 Whirlpool Screw
5	WP2182181 Whirlpool Refrigerator Thimble
7	WP488163 Whirlpool Refrigerator Screw
8	2159074 Whirlpool Door Gasket Seal
8	2159082 Whirlpool Freezer Door Gasket Black
12	WP2223752 Whirlpool Refrigerator Door Cam
13	WP489483 Whirlpool Screw
14	Bracket, Door Stop (Black)
14	Bracket, Door Stop (Chrome)
15	Set Screw (Black)
15	Screw
17	Tube, Door
17	WP3400012 Whirlpool Refrigerator Screw
17	Wire Assembly, Freezer Door
17	FOLLOWING PARTS NOT ILLUSTRATED
