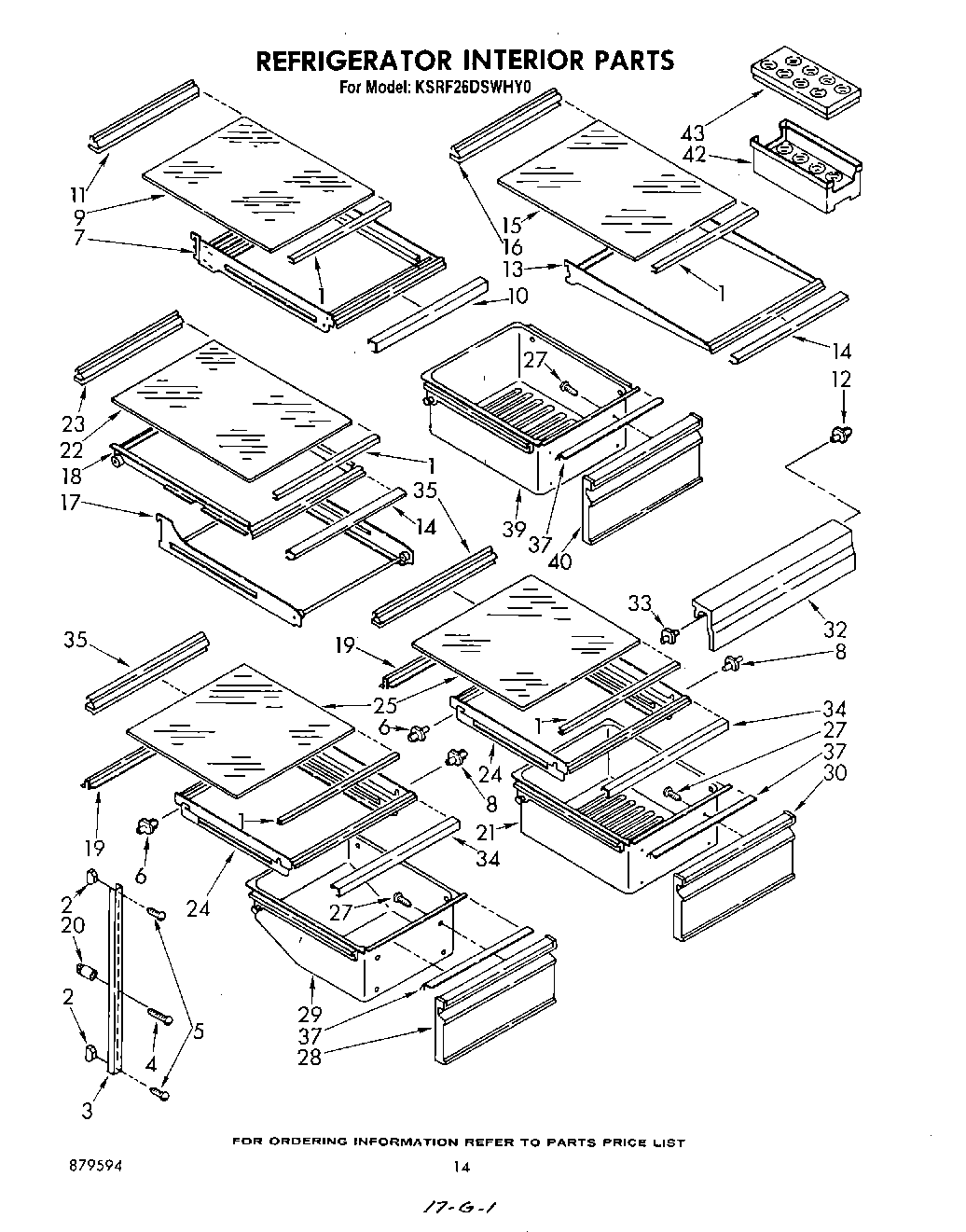

KSRF26DSWHY0 08 – REFRIGERATOR INTERIOR, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
WPL LIT1101159
350942 Whirlpool Spray Paint
WPL LIT879594
Paint, Spray (13 Oz.) (Platinum)
Toast
285006 Whirlpool Spray
350956 Whirlpool Spray Assembly
Leveler (Thinner)
WPL LIT1107427
WPL LIT1107415
1Shelf Gasket, Glass
2520965 Whirlpool Refrigerator Support
3Shelf Ladder (2)
4Screw, 8 x 1-1/4 (3)
4Screw, (Repair) 10 x 1 1/4
5Screw (Repair)
5Screw, 8-32 x 1-1/4
6Shelf, Stud
7Frame-Utility, Cantilever
8Stud, Shelf (4)
9Glass, Cantilever Shelf
10Trim, Frame
11Reflector, Glass Shelf
12Stud, Shelf (2)
13Shelf, Cantilever
14Trim, Shelf Front
15Glass, Cantilever Shelf
16Reflector, Cantilever
17Frame, Cantilever Rollout
18Roll Out Shelf, Cantilever
19Gasket, Rear (2)
20Screw, Grommet
21Pan Crisper
22Glass, Rollout Shelf
23Reflector, Glass Shelf Rollout
24Frame, Meat & Crisper
25Glass, Crisper & Meat Cover
27Screw (Repair)
27WP488729 Whirlpool Refrigerator Door Screw
28Front, Cover Meat Pan
29Pan, Meat
30Front Cover, Crisper
32Light Lens, Lower
33Stud, Shelf
34Trim, Frame Crisper & Meat
35Reflector, Glass
37Pan Gasket, Front
39Tray, Utility
40Front, Utility Tray
42Egg Container, Bottom
43212643 Whirlpool Refrigerator Permagum Sealer
43Enamel, Black (1 Qt. Uncut)
43876370 Whirlpool Refrigerator Insulation
43WPL 799832
43WPL 799833
4372032 Whirlpool Touch Up Paint Black
43WP503695 Whirlpool Refrigerator Sealer
43Almond (Uncut)
43WP72107 Whirlpool Touchup
43799344 Whirlpool Refrigerator Paint
4372017 Whirlpool Appliance Touch-Up Paint White
43833938 Whirlpool Refrigerator Terminal
43WPL 876029
43CEMENT, ALUMILASTIC (1 1/4 OZ.)
43WP505587 Whirlpool Refrigerator Sealer
43WP542638 Whirlpool Refrigerator Grease
43WPL 72112
43Platinum (Uncut)
43511873 Whirlpool Refrigerator Paint
43606755 Whirlpool Refrigerator Bag
43TAPE, VINYL (3/4 X 108“)
43Egg Container, Top
43Enamal, Toast (1 Qt. Uncut)
4372113 Whirlpool Touch-Up Paint
