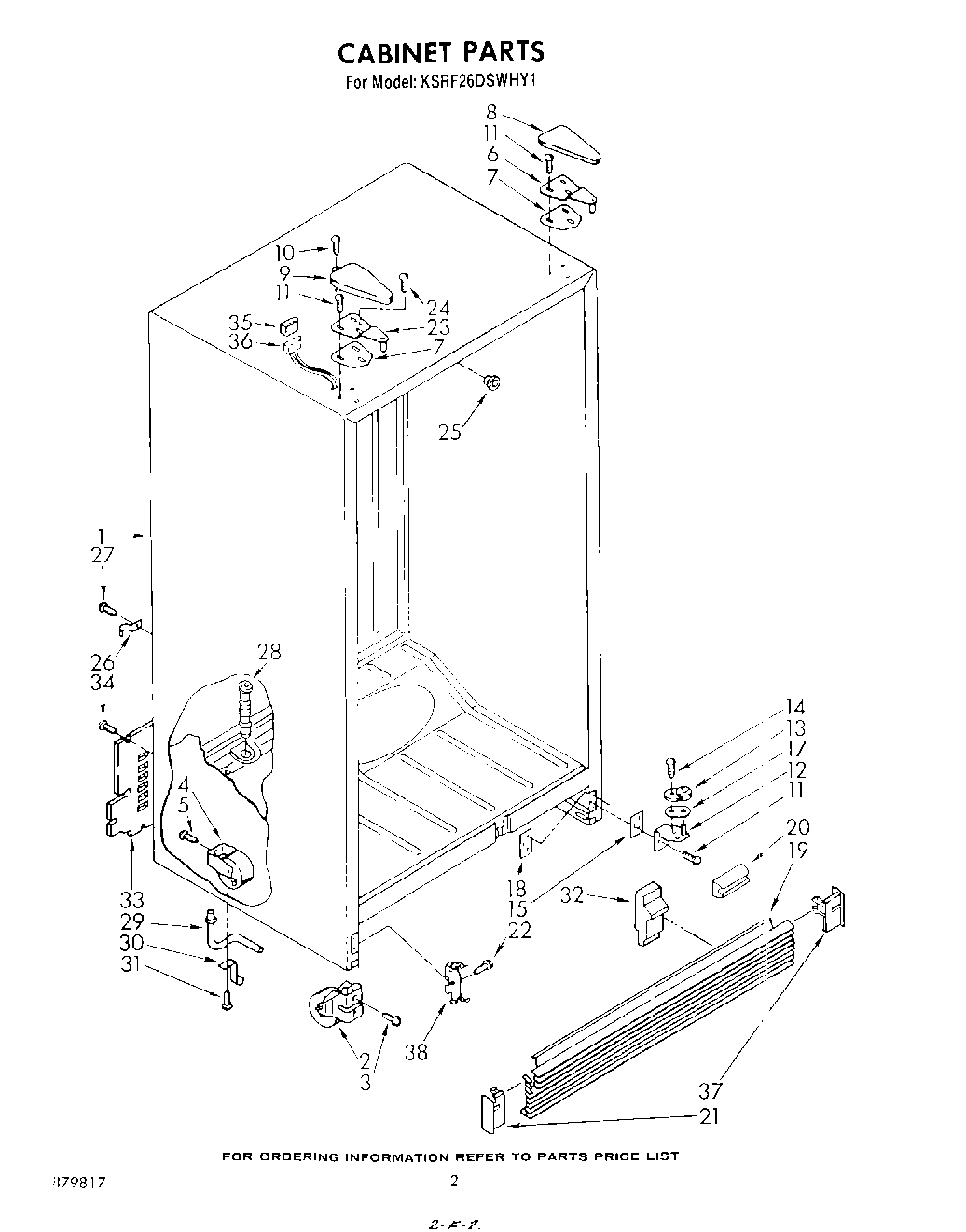

KSRF26DSWHY1 02 – CABINETadmin2025-04-26T12:19:42+00:00KSRF26DSWHY1 02 – CABINET
Products
| Position | Product |
|---|
| 1 | Cabinet (Not A Serviceable Part) |
| 2 | Roller, Front |
| 3 | Screw, 5/16-24 x 1 |
| 4 | WPW10250570 Whirlpool Refrigerator Cabinet Roller |
| 5 | Screw, 1/4-28 x 1/2 (2) |
| 6 | Hinge, Top |
| 7 | Shim, Hinge Top |
| 8 | Hinge Cover (Toast) |
| 8 | 1119787 Whirlpool Refrigerator Hinge Cover |
| 9 | Hinge Cover (Platinum) |
| 9 | Hinge Cover (Toast) |
| 9 | WP1129262 Whirlpool Refrigerator Cover |
| 10 | Screw, 6-32 x 1/2 |
| 11 | WP999367 Whirlpool Refrigerator Screw |
| 11 | Screw (Repair) |
| 12 | Hinge Bottom (L.H) |
| 12 | Hinge Bottom (R.H) |
| 13 | WPW10329686 Whirlpool Door Cam Black |
| 14 | Screw (Repair) |
| 14 | WP486579 Whirlpool Air Conditioner Screw |
| 15 | Shim, Bottom Hinge |
| 17 | Shim, Door Closer |
| 18 | Tap Plate |
| 19 | Exterior, Grille |
| 20 | Bumper, Grille (2) |
| 21 | Grille, End Cap (L.S.) |
| 23 | Hinge, Top Freezer |
| 24 | WP488234 Whirlpool Air Conditioner Screw |
| 25 | Grommet |
| 26 | Clamp, Water Line (2) |
| 27 | W11624204 Whirlpool Screw |
| 28 | Drain Fitting, Liner |
| 29 | Extension, Drain Fitting |
| 30 | Cup, Drain Extension |
| 31 | Screw, 8-15 x 3/8 |
| 32 | Insert, Air Baffle Grille |
| 33 | Cover, Unit Compartment |
| 35 | WPL 851648 |
| 36 | WPL 482553 |
| 37 | Grille, End Cap (R.S) |
| 38 | WPL 989068 |
