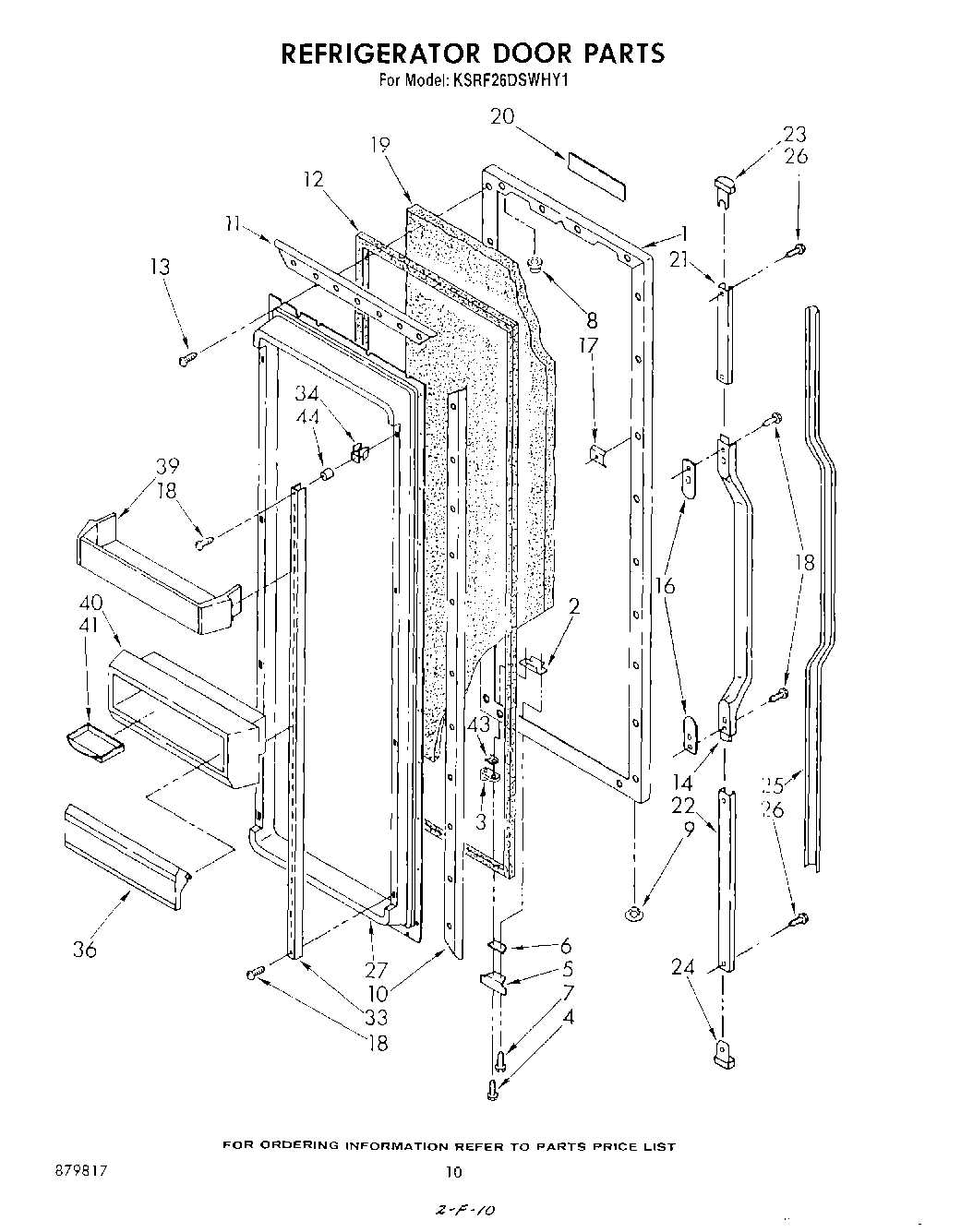

KSRF26DSWHY1 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator, Door Panel (Almond)
1	Refrigerator, Door Panel (Platinum) (Also Order Item 19 When Replaceing Door)
1	Refrigerator, Door Panel (Toast)
1	Refrigerator, Door Panel (White)
2	Tap Plate
3	4318165 Whirlpool Refrigerator Door Closure Cam Kit
4	WP489069 Whirlpool Compactor Screw
5	Bracket, Door Stop
6	Shim
7	Screw, 89 x 5/8
8	Cap, Hinge Sleeve (2)
9	Hole Plug (2)
10	Retainer, Gasket Side
11	Retainer, Top & Bottom
12	Door Gasket, Magnetic (For Platinum Model Only)
13	SCREW
14	Handle
16	Spacer, Handle
17	Screw Anchor (2)
19	WPL 876029
20	Insert, Nameplate
21	Retainer, Insert
22	Retainer, Insert
23	End Cap (2)
24	End Cap, Handle Bottom
25	Insert, Handle (Black) (For Platinum Model)
25	Insert, Handle
26	Screw
27	Interior Door Panel
33	Shelf Ladder
34	Expansion Clip
36	Compartment Door
39	Cantilever, Door Shelf
40	Shelf, Door Cantilever Bin
43	WP1104787 Whirlpool Refrigerator Shim
44	Spacer, Shelf
