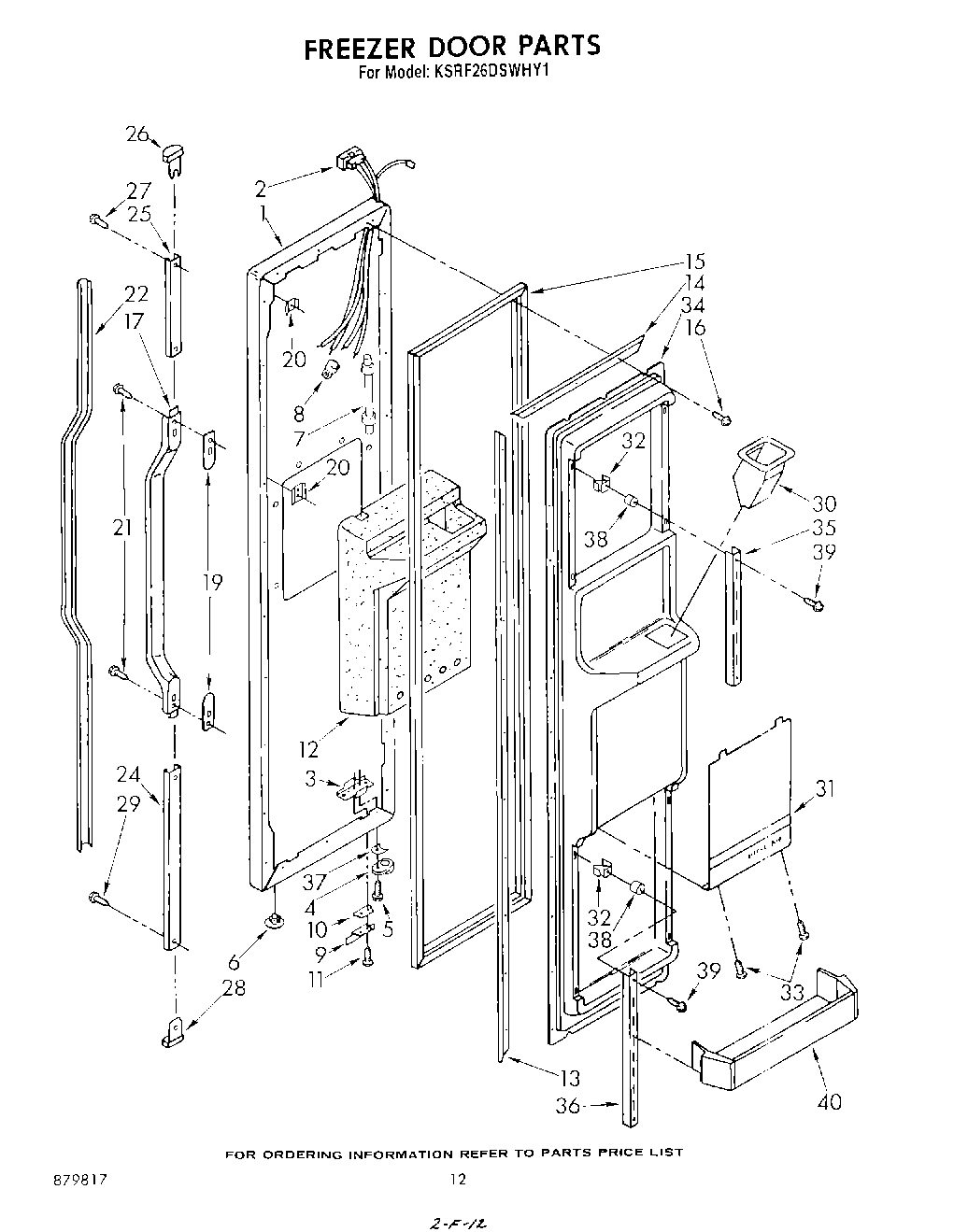

KSRF26DSWHY1 07 – FREEZER DOOR

Products

Position	Product
1	Exterior Door Panel Freezer (Platinum)
1	Exterior Door Panel Freezer (Toast)
1	Exterior Door Panel Freezer (White)
1	Exterior Door Panel Freezer (Almond)
2	Plug, Crossover
3	Tap Plate
4	4318165 Whirlpool Refrigerator Door Closure Cam Kit
5	WP489069 Whirlpool Compactor Screw
6	Hole Plug (2)
7	Tube, Door Wiring
8	Wire Connector
9	Bracket, Door Stop
10	Shim
11	Screw, 89 x 5/8
12	Dispenser, Insulation
13	Retainer, Gasket Side
14	Retainer, Gasket Top & Bottom
15	Door Gasket, Magnetic (For Platinum Model Only)
16	SCREW
17	Handle
19	Spacer, Handle
20	Screw Anchor (2)
22	Insert, Handle
22	Insert, Handle (Black) (For Platinum Model)
24	Retainer, Insert
25	Retainer, Insert
26	End Cap (2)
27	Screw
28	End Cap, Handle Bottom
29	Screw, 6-32 x 1/2
30	Chute, Ice
31	Overlay, Ice Dispenser
32	Expansion Clip
33	WP488729 Whirlpool Refrigerator Door Screw
34	Interior, Door Panel
35	Door Shelf, Ladder (Top)
36	Door Shelf, Ladder (Bottom)
37	WP1104787 Whirlpool Refrigerator Shim
38	Spacer, Shelf
39	Screw, 8-15 x 1 1/4 (8)
40	Door Shelf, Cantilever
