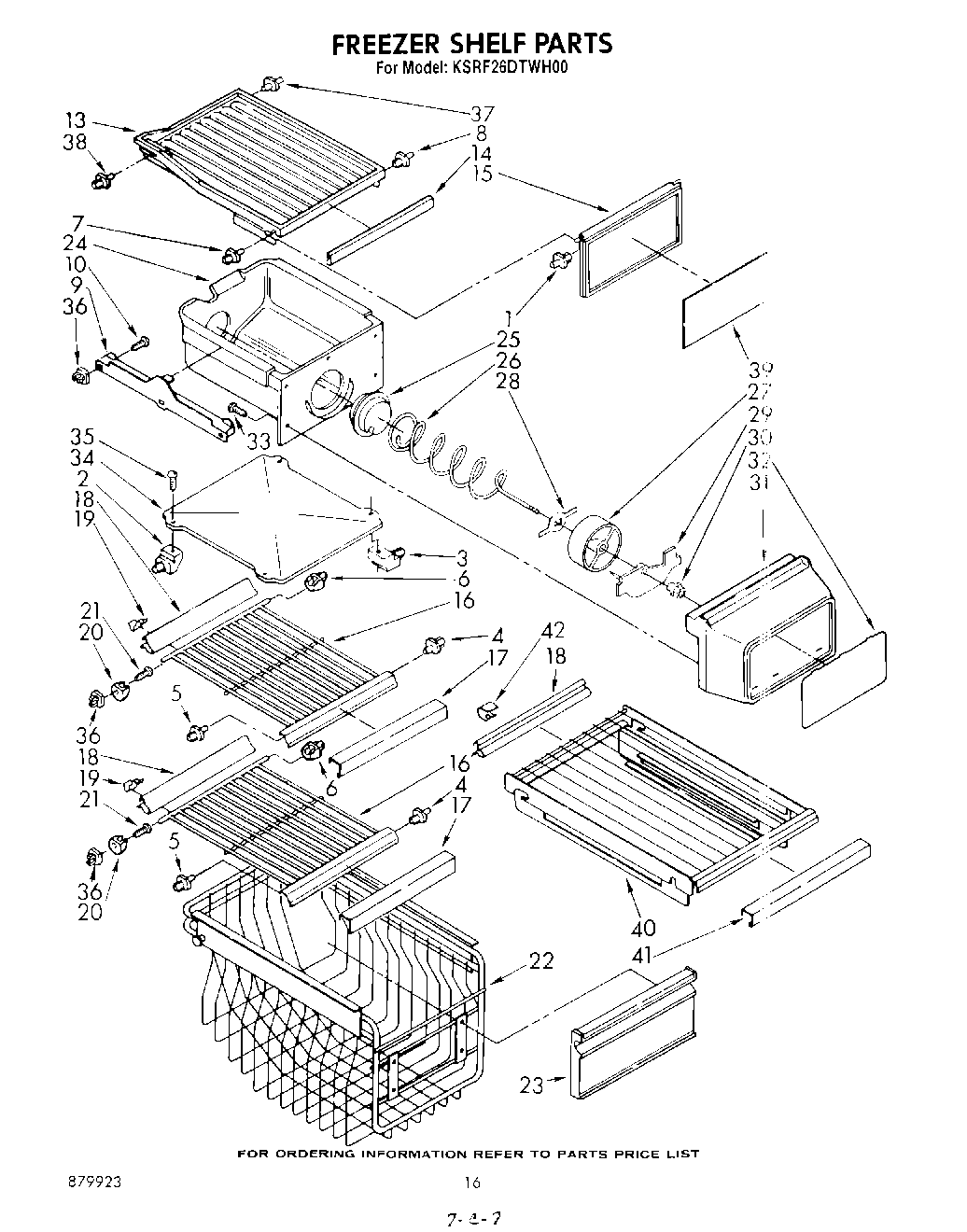

KSRF26DTAL00 09 – FREEZER SHELF

Products

Position	Product
1	Shelf, Stud
2	Retainer, Stud (4)
3	Retainer, Stud
4	Shelf, Stud
5	Shelf, Stud (2)
6	Shelf, Saddle (R.S.)
7	Shelf, Stud
8	Stud, Shelf
9	Slide, Basket (Left Side)
10	Screw, 8 x 1
13	Solid Shelf (For Platinum Model Only)
14	Trim, Shelf
15	Front, Ice Compartment
16	Shelf, Freezer
17	Trim, Shelf Front
18	Reflector, Shelf
19	Clip, Reflector (2)
20	Shelf Stud, Saddle L.S.
21	WP488729 Whirlpool Refrigerator Door Screw
22	Freezer Basket
23	Front, Freezer Basket
24	Ice Container
25	W10749708 Whirlpool Refrigerator Coupling
26	Conveyor, Ice Container
28	4388736 Whirlpool Refrigerator Ice Dispenser Bucket Bin Conveyor Auger Drum
29	Baffle
30	Nut, Bearing
31	Front Cover, Ice Dispenser
32	Overlay, Front Cover
33	WP488787 Whirlpool Refrigerator Screw
34	Baffle, Ice Container
36	Grommet
37	Stud, Shelf
38	Stud, Shelf (2)
39	Overlay, Ice Compartment
40	Shelf, Freezer Basket
41	Trim, Frame
42	Clip, Reflector
