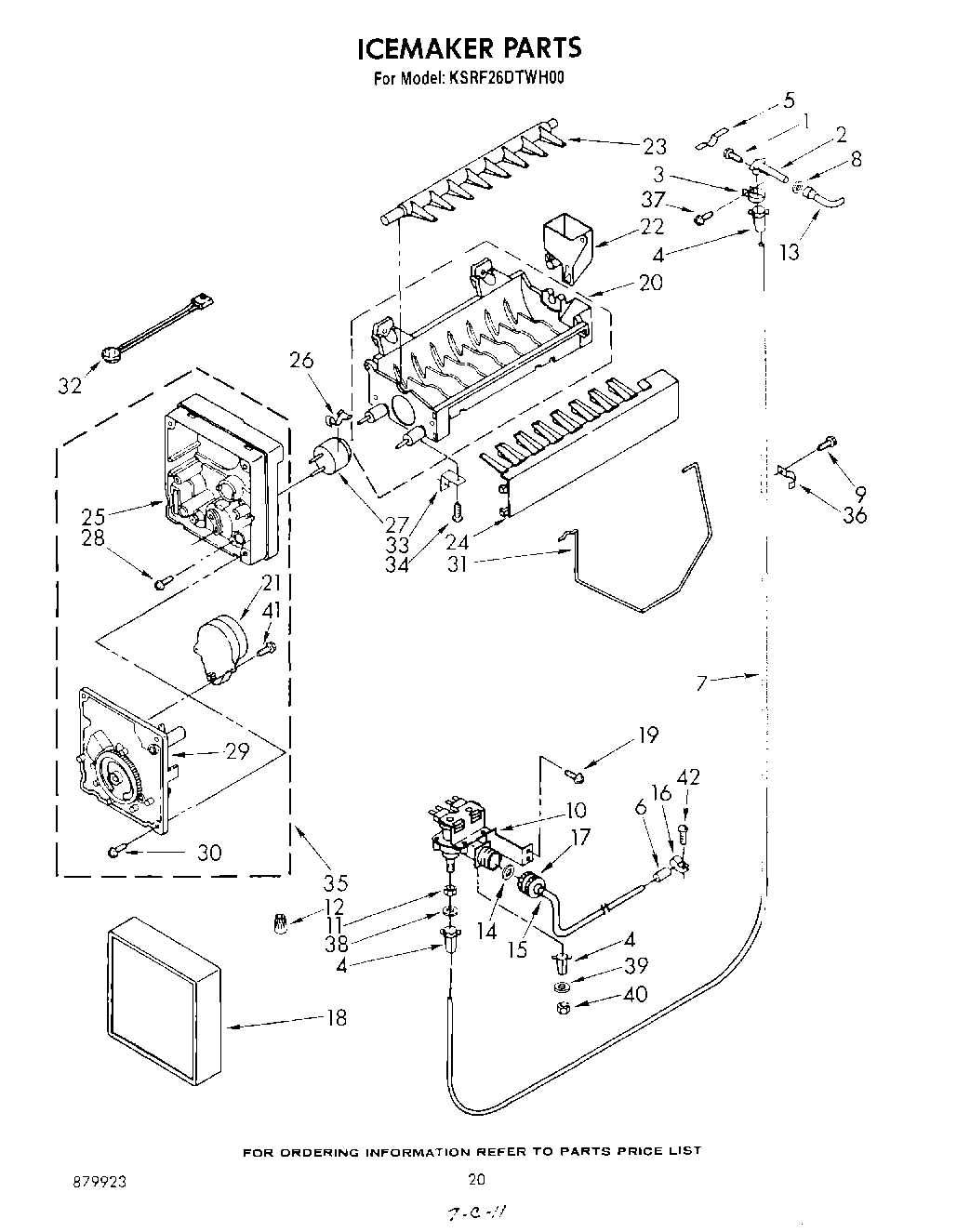

KSRF26DTAL00 11 – ICE MAKER

Products

Position	Product
1	WP98165 Whirlpool Screw
2	WP2196157 Whirlpool Fill Tube
3	WP488878 Whirlpool Refrigerator Tube Clamp
4	4387491 Whirlpool Refrigerator Insert
5	Clip
6	WP2158826 Whirlpool Refrigerator Dampener
7	W10823511 Whirlpool Refrigerator Water Tube
8	WP1106508 Whirlpool Refrigerator Gasket
9	WP489069 Whirlpool Compactor Screw
10	4318046 Whirlpool Dual Water Inlet Valve
11	WP627018 Whirlpool Refrigerator Nut
12	Wire Connector
13	Tube, Water Inlet
14	WP16123 Whirlpool Washer
15	Tube, Inlet Valve
16	Clamp Tube
17	Nut, Valve
18	Cover
19	WPW10141625 Whirlpool Refrigerator Screw Assembly
20	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
22	WP628356 Whirlpool Refrigerator Fill Cup
23	WP627843 Whirlpool Refrigerator Ejector Arm
24	WP2182124 Whirlpool Refrigerator Stripper Arm
25	WP2195914 Whirlpool Refrigerator Ice Maker Housing
26	WP2315522 Whirlpool Refrigerator Clip
27	WP627985 Whirlpool Icemaker Cycling Thermostat
28	Screw, 10-32 x 49/64
30	WP681249 Whirlpool Screw Assembly
31	W11342242 Whirlpool Refrigerator Ice Level Arm
32	WP628172 Whirlpool Refrigerator Wire Harness
33	WP2256087 Whirlpool Refrigerator Bracket
34	WP489128 Whirlpool Refrigerator Screw
35	W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
36	Clamp, Water Line (2)
37	WP965173 Whirlpool Dishwasher Screw
38	“O“ Ring Seal (4)
39	“O“ Ring Seal
40	Nut, Compression
41	489136 Whirlpool Refrigerator Screw
42	W11624204 Whirlpool Screw
