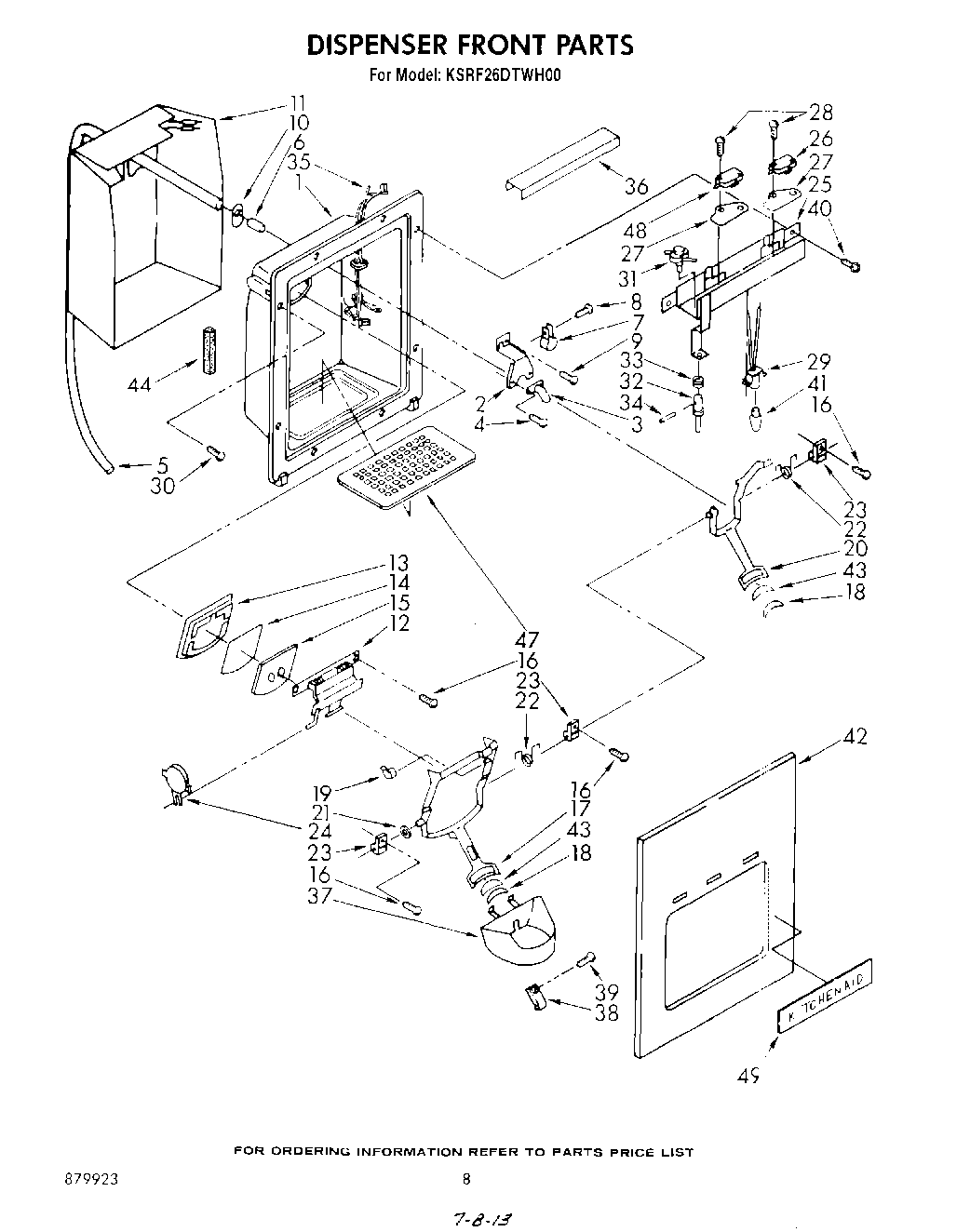

KSRF26DTWH00 05 – DISPENSER FRONT

Products

Position	Product
1	Housing, Dispenser
2	Bracket, Water
3	WP4388152 Whirlpool Refrigerator Fitting
5	W10823511 Whirlpool Refrigerator Water Tube
6	4387491 Whirlpool Refrigerator Insert
7	WP488878 Whirlpool Refrigerator Tube Clamp
8	WP965173 Whirlpool Dishwasher Screw
9	Screw, 8-18 x 3/4
10	Grommet
11	Heater, Ice Dispenser
12	Door Mechanism Assembly
13	Gasket, Door
14	Shield, Ice Door
15	Door, Ice
16	WP3400906 Whirlpool Refrigerator Screw
17	Lever, Ice Dispenser
18	Pad, Lever
19	Clip, Bearing (2)
20	Lever, Water Dispenser
21	Washer
22	Spring, Lever (2)
23	Bearing, Lever (3)
24	WP1120581 Whirlpool Refrigerator Mechanism
25	Bracket, Control
26	Switch
27	Insulator, Switch (2)
28	Screw, 4-40 x 1
29	Socket, Lamp
30	WP489128 Whirlpool Refrigerator Screw
31	Switch, Light
32	Plunger, Extension
33	Spring, Plunger
34	Pin, Retainer
35	Wiring Harness, Door
36	Shield, Wiring
37	Guide, Ice
38	Stop, Glass
39	Screw
40	W11693756 Whirlpool Screw Assembly
41	WP22002263 Whirlpool Dryer 10W Light Bulb
42	Front Cover Housing
43	Saddle, Lever
44	Seal
47	Grille, Overflow
48	Switch (2)
49	Nameplate
