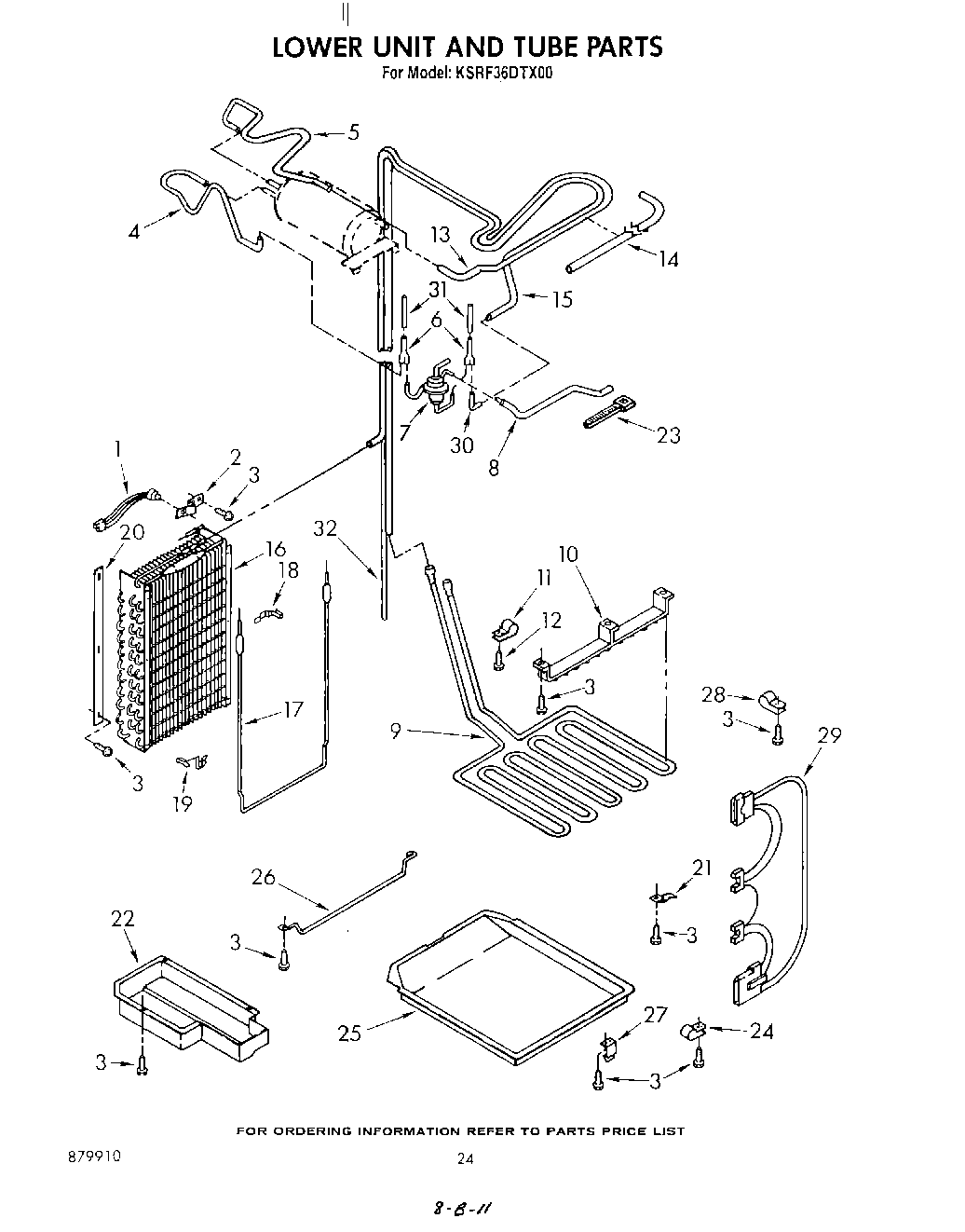

KSRF36DTX00 15 – LOWER UNIT AND TUBEadmin2025-04-26T12:20:04+00:00KSRF36DTX00 15 – LOWER UNIT AND TUBE
Products
| Position | Product |
|---|
| 1 | WP4387499 Whirlpool Refrigerator Bimetallic Defrost |
| 2 | Clamp, Bi-Metal |
| 3 | W11624204 Whirlpool Screw |
| 3 | SCREW |
| 4 | Tube, Connect (Suction) |
| 5 | Tube, Connect (Discharge) |
| 6 | Tube, Flow Divider (2) |
| 7 | Valve, Fluid Control |
| 8 | Tube, Connect (Drier) |
| 9 | Heater, Drain Pan |
| 10 | Hanger, Heater |
| 11 | Bracket, Heater |
| 12 | WP488163 Whirlpool Refrigerator Screw |
| 13 | Tube, Discharge |
| 14 | WP2002171 Whirlpool Refrigerator Sleeve |
| 15 | Heat Exchanger |
| 16 | WPW10122127 Whirlpool Refrigerator Evaporator |
| 17 | Heater, Defrost |
| 18 | 1113048 Whirlpool Refrigerator Clamp |
| 19 | Heater, Clamp (4) |
| 20 | Gasket, Evaporator |
| 21 | Clip, Connector |
| 22 | Guard, Hook-Up |
| 23 | Strap |
| 24 | WP488729 Whirlpool Refrigerator Door Screw |
| 25 | Drain Pan |
| 26 | Bracket, Drain Pan |
| 27 | Clip, Pan (2) |
| 28 | Clip, Tube (3) |
| 29 | Wiring Harness, Water Valve |
| 30 | Tube, Connect (Suction) |
| 31 | Tube (2) |
| 32 | Tube, Condenser Inlet |
