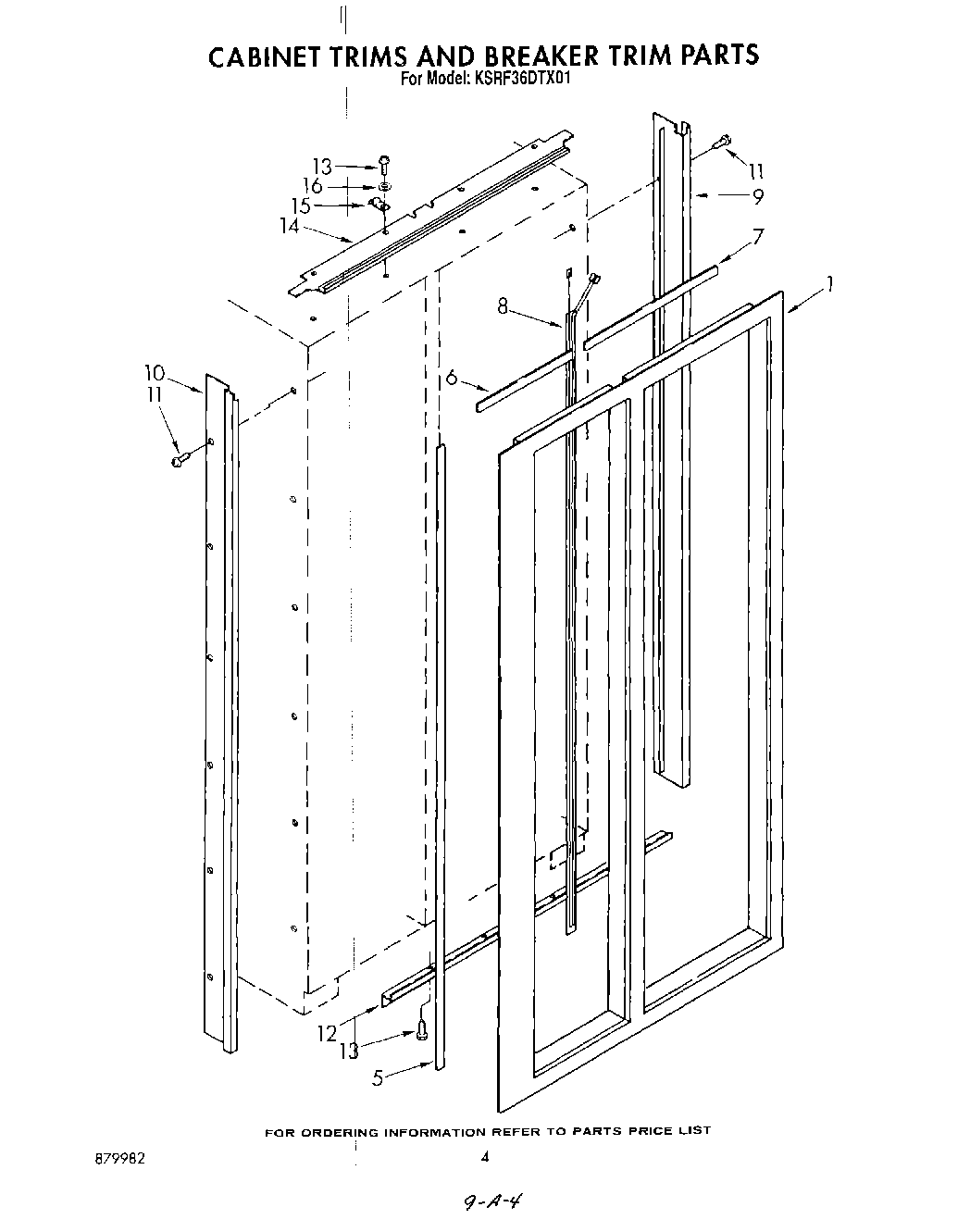

KSRF36DTX01 03 – CABINET TRIMS AND BREAKER TRIM

Written by

Products

Position	Product
1	Breaker Trim & Retainer Assembly
5	Magnet, Side (4)
6	Magnet, Freezer (2)
7	Magnet, Refrigerator (2)
8	Heater, Mullion
9	Trim (R.S.)
10	Trim (L.S.)
11	Screw (Repair)
11	Screw, 8-32 x 1/2 (12)
12	Trim (Bottom)
13	WPW10141625 Whirlpool Refrigerator Screw Assembly
14	Spacer Trim, Grille
15	Retainer, Unit Base (2)
16	W10903204 Whirlpool Refrigerator Washer
