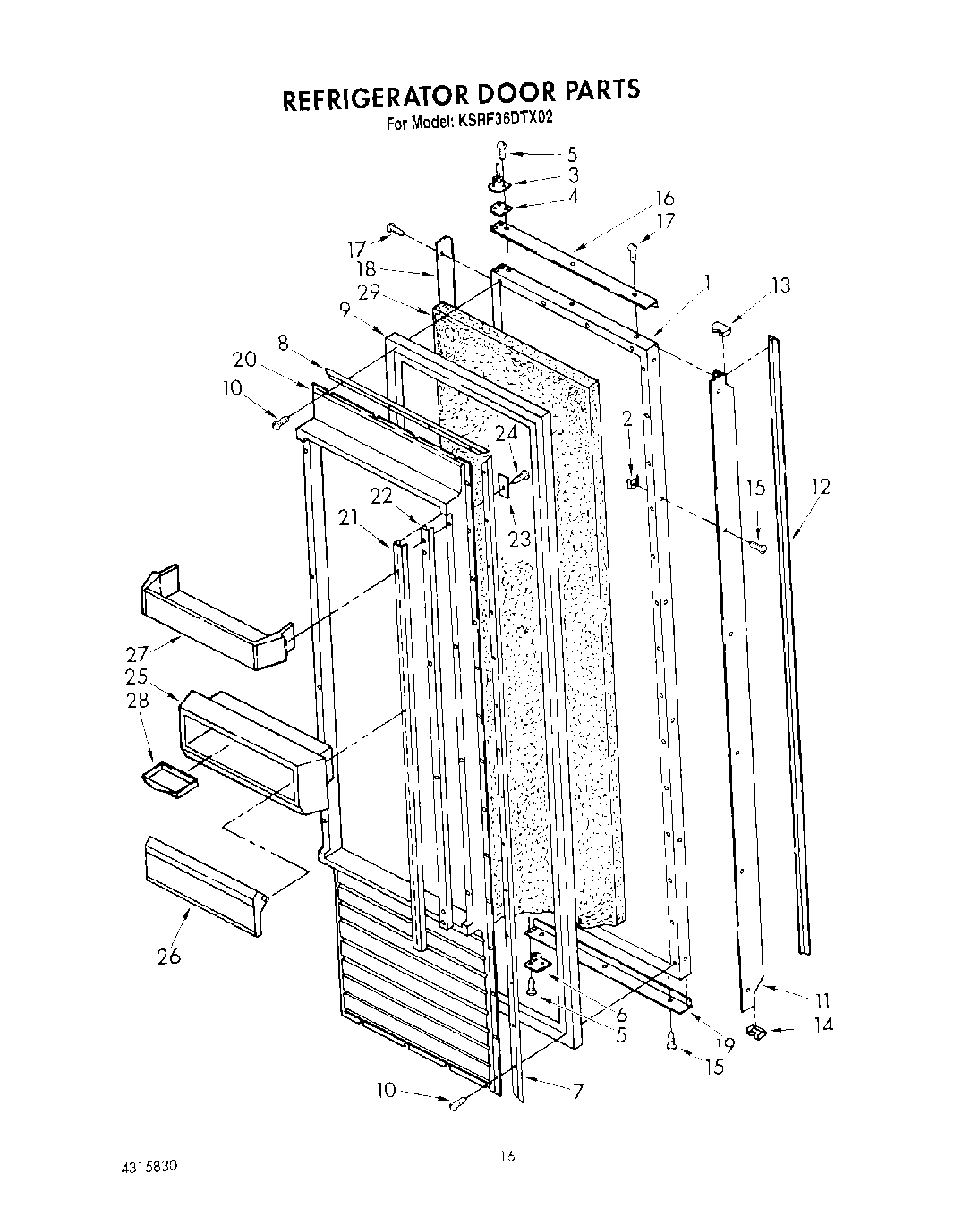

KSRF36DTX02 10 – REFRIGERATOR DOOR, LIT/OPTIONAL

Products

PositionProduct
1Door Panel, Refrigerator (Also Order Item 29)
2WP939101 Whirlpool Refrigerator Plate
3Hinge Assembly, Top
4Spacer
5W11474472 Whirlpool Screw
6Hinge Assembly, Bottom
7Gasket Retainer, Side (2)
8Gasket Retainer, Top & Bottom
9Door Gasket, Magnetic
10WP489069 Whirlpool Compactor Screw
11Handle, Door
12Insert, Door Handle
13End Cap, Top
14End Cap, Bottom
15WP488729 Whirlpool Refrigerator Door Screw
16Trim (Top)
17Screw, 6-32 x 1/2
18Trim (Side)
19Trim (Bottom)
20Panel, Interior Door
21Ladder, Shelf (2)
22Retainer, Shelf Ladder (2)
23Back Up Plate (8)
24SCREW
24W11624204 Whirlpool Screw
25Bin, Utility
26Door, Utility Bin
27Door Shelf (4)
29WPL 876029
