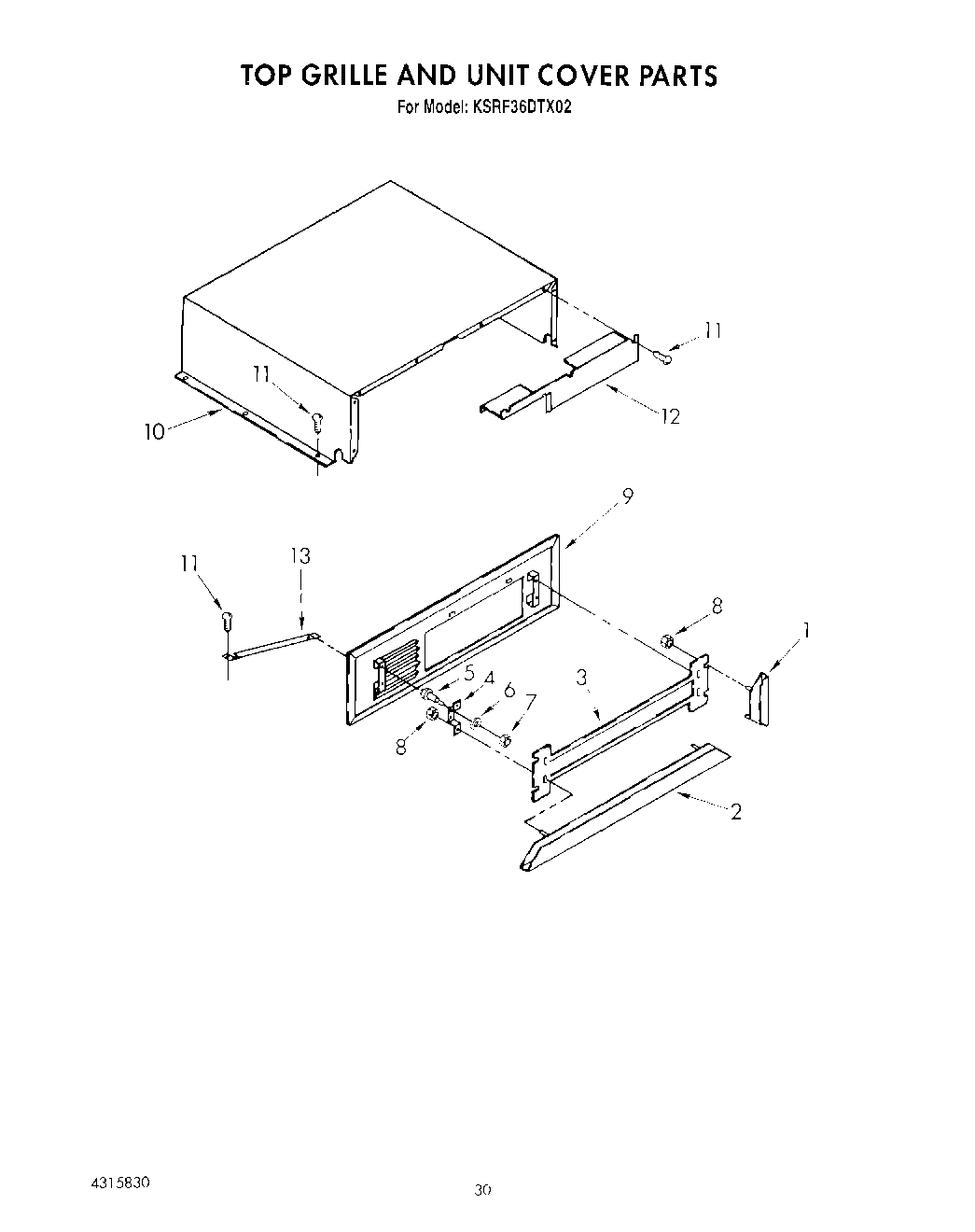

KSRF36DTX02 17 – TOP GRILLE AND UNIT COVER

KSRF36DTX02 17 – TOP GRILLE AND UNIT COVER

Written by

in

KSRF36DTX02 17 – TOP GRILLE AND UNIT COVER

Products

PositionProduct
Parts List
Energy Label
WPL LIT628107
Use & Care Guide
Service & Wiring Sheet
1Panel Frame, Side (2)
2Panel Frame, Top & Bottom
3Back Up Panel
4Bracket, Keyhole Mounting (2)
5Shoulder Screw (4)
6Spring Washer (4)
7WP486255 Whirlpool Air Conditioner Nut
8Nut (8)
9Top Grille Assembly
10Cover, Unit
11W11624204 Whirlpool Screw
11SCREW
12Cover, Component Assembly
13Top Grille Trim Kit (8“)
13Front Panel Kit (Black)
13Top Grille Trim Kit (7-1/2“)
13Front Panel Kit (White)
13Black Acrylic Static Cleaner
13Front Panel Kit (Almond)
13Brace, Panel (2)
