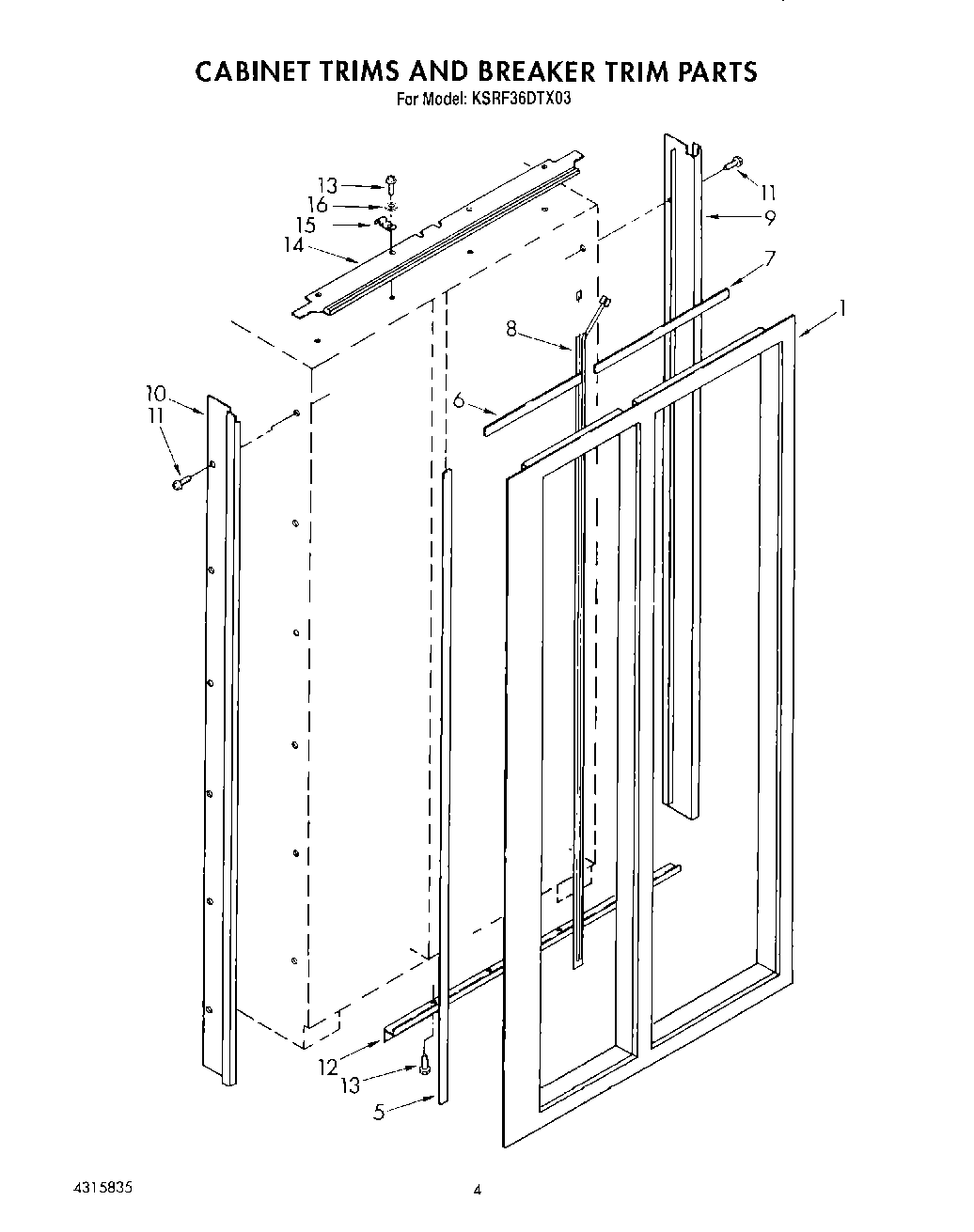

KSRF36DTX03 02 – CABINET TRIMS AND BREAKER TRIM

Written by

Products

Position	Product
1	Breaker Trim & Retainer Assembly
5	Magnet, Side (4)
6	Magnet, Freezer (2)
7	Magnet, Refrigerator (2)
8	Heater, Mullion
9	Trim (R.S.)
10	Trim (L.S.)
11	Screw
11	Repair, Screw
12	Trim (Bottom)
13	WPW10141625 Whirlpool Refrigerator Screw Assembly
14	Spacer Trim, Grille
15	Retainer, Unit Base (2)
16	W10903204 Whirlpool Refrigerator Washer
