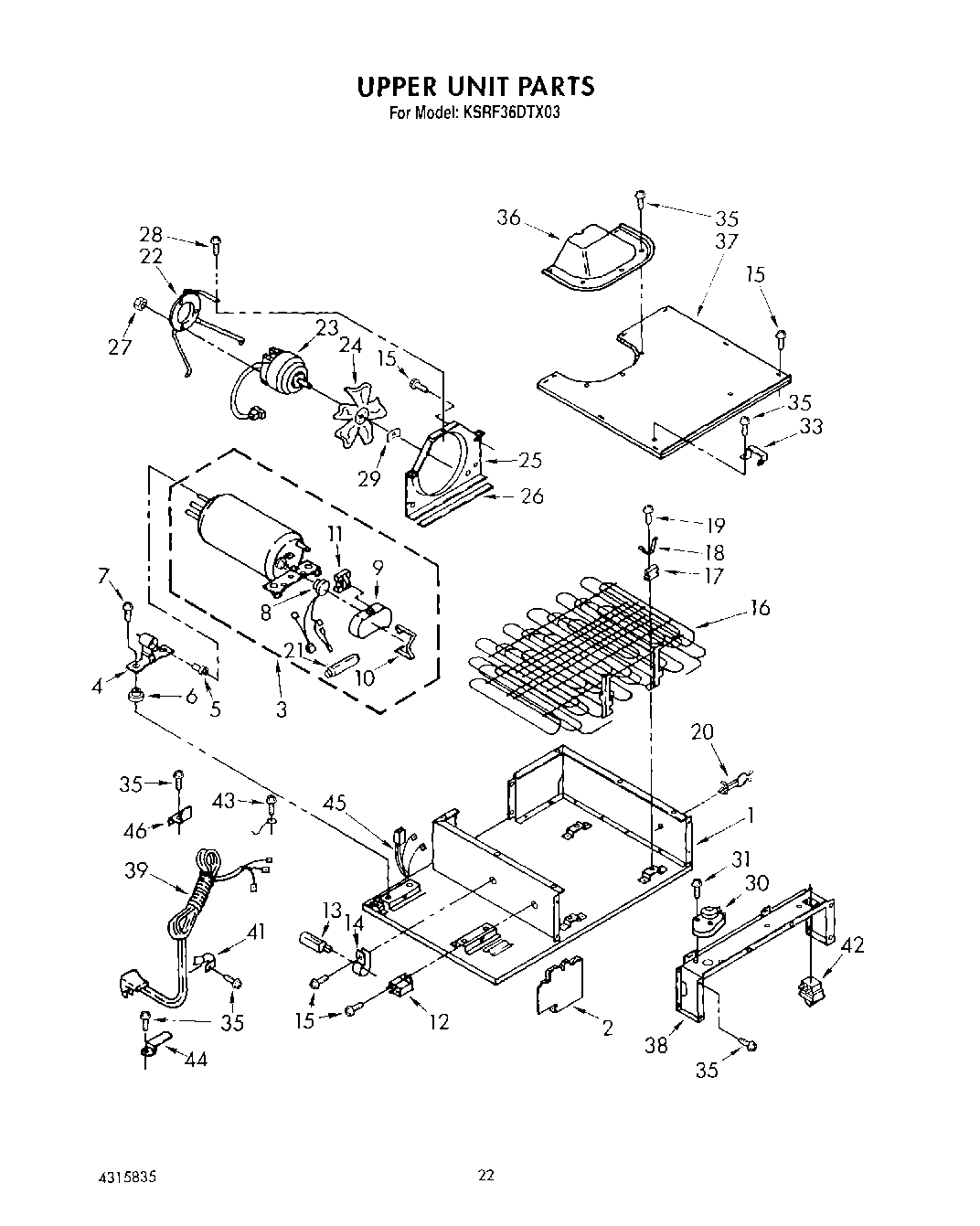

KSRF36DTX03 13 – UPPER UNIT

KSRF36DTX03 13 – UPPER UNIT

Written by

in

KSRF36DTX03 13 – UPPER UNIT

Products

PositionProduct
1Assembly, Unit Base
2Assembly, Sound Barrier
3876765 Whirlpool Primary Mounting Kit Refrigerator
3Compressor (Includes Items 8, 9, 10, 11, 12, 13, 21) (Also Order)
4Bracket, Mounting
5Grommet, Compressor Bracket
6Grommet, Compressor (4)
7Screw (4)
8Overload (Production) (Includes Relay)
8Overload (Service) (Includes Relay)
9Terminal Cover
9Terminal Cover (Service)
10Strap, Cover
11Relay (See Overload)
12Running Capacitor
13Capacitor, Start
14Tube Clamp
15WP965173 Whirlpool Dishwasher Screw
16Condenser
17Grommet (4)
18Clamp (4)
19Screw
20Wire Tie (2)
21Drier
22Mounting Bracket, Motor
23Motor, Fan
24Blade, Fan
25Orifice, Fan
26Gasket, Orifice
27WP488130 Whirlpool Air Conditioner Nut
29WP486692 Whirlpool Refrigerator Nut
30Defrost Timer (10 Hour)
31WP3388228 Whirlpool Screw
33Clamp, Tube (2)
35W11624204 Whirlpool Screw
35SCREW
36Cover, Fan
37Cover, Condenser
38Extension, Housing
39Cord, Service
41Clamp, Cord (2)
42WP2266802 Whirlpool Refrigerator Switch
43303776 Whirlpool Dishwasher Screw
44Clip, Cord Plug
45Wiring Harness, Unit Compartment
46876764 Whirlpool Refrigerator Primary Valve
46VALVE, ACCESS (1/2“)
46WP978025 Whirlpool Refrigerator Valve
46978030 Whirlpool Refrigerator Valve
46VALVE, ACCESS (5/8“)
46978027 Whirlpool Refrigerator Primary Valve
46978026 Whirlpool Refrigerator Primary Valve
46Stop
