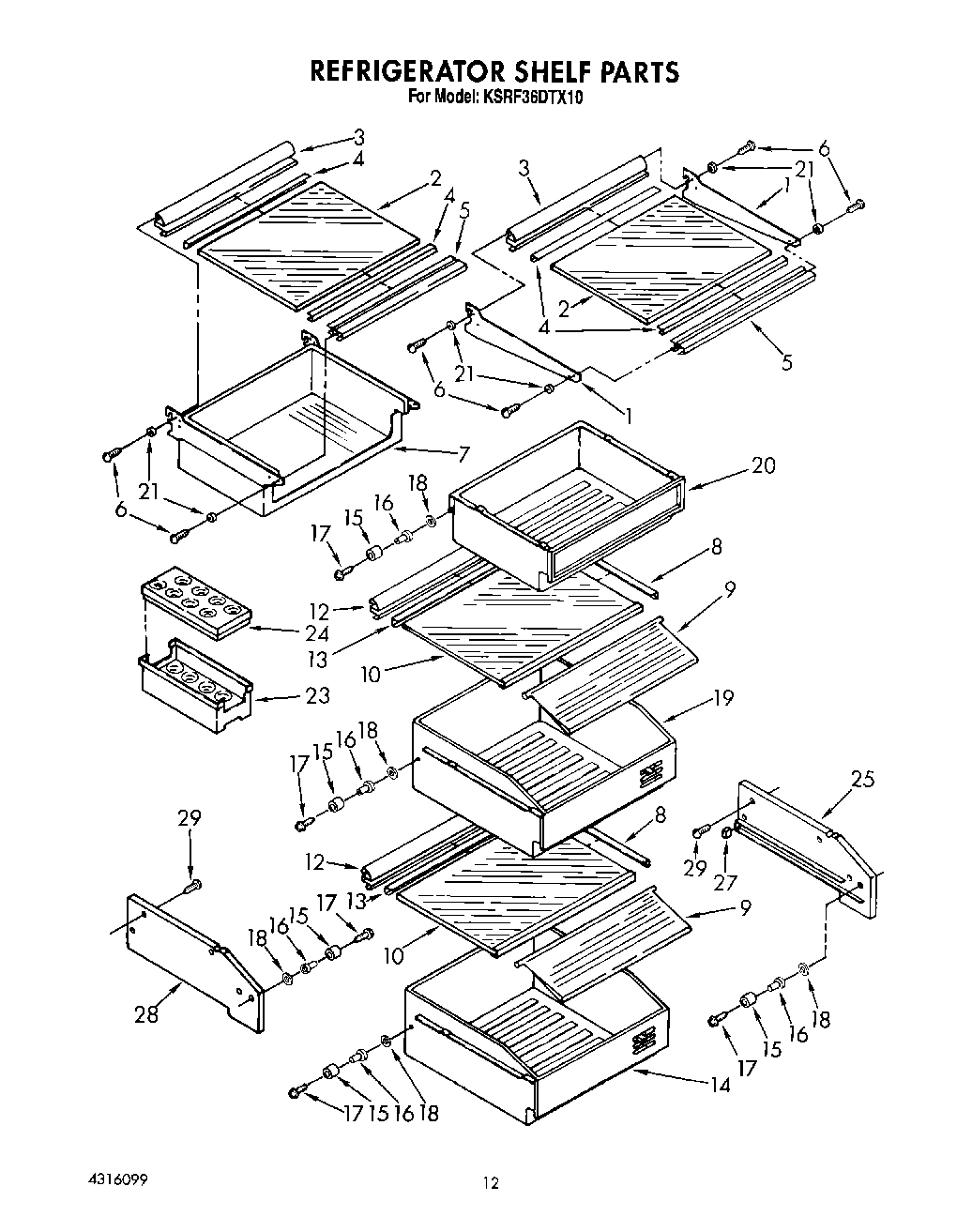

KSRF36DTX10 08 – REFRIGERATOR SHELF

Products

PositionProduct
1Side Arm, Cantilever Shelf
2Glass, Shelf
3Reflector, Shelf
4Gasket, Glass (2)
5Trim, Shelf Front
6Screw, 6-32 x 1/2
7Frame & Housing, Meat Pan
8Retainer, Glass
9Cover, Crisper
10Glass, Crisper
12Reflector, Glass
13Gasket, Crisper
14Pan, Crisper
15Roller
16Eyelet, Roller
17WPW10272364 Whirlpool Refrigerator Screw
18Washer
19Utility Pan
20Meat Pan
21Spacer, Shelf
23Egg Container, Bottom
24Egg Container, Top
25Crisper Spacer, Right Side (2)
27Roller Stop
28Crisper Spacer, Left Side (2)
29W11624204 Whirlpool Screw
