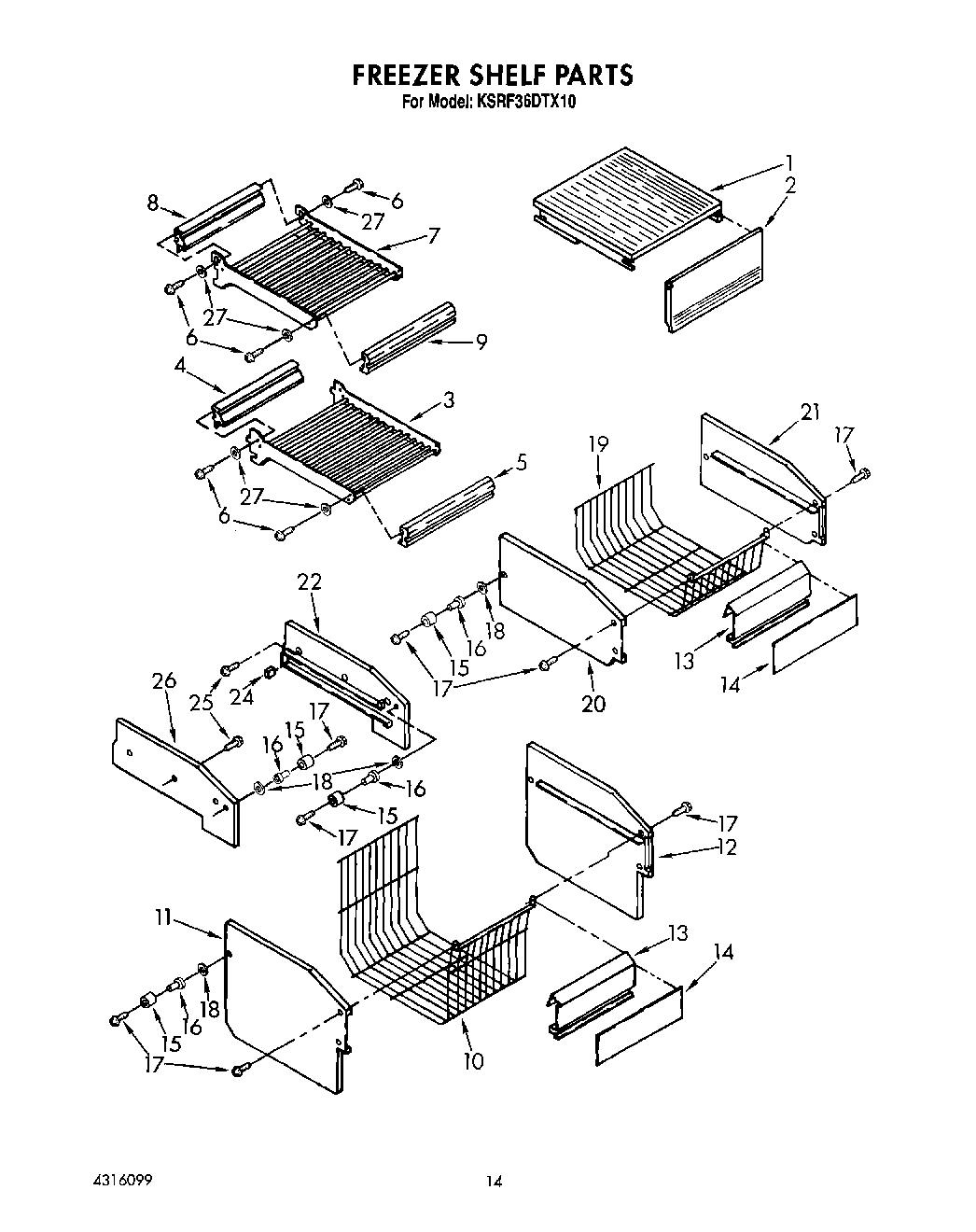

KSRF36DTX10 09 – FREEZER SHELF

Products

Position	Product
1	Solid Shelf
2	Front, Ice Compartment
3	Shelf, Fixed (2)
4	Reflector, Shelf
5	Trim, Shelf
6	Screw, 6-32 x 1/2
7	Shelf, Cantilever
8	Reflector, Shelf
9	Trim, Shelf
10	Basket (Large)
11	Side, Basket (Left Side)
12	Side, Basket (Right Side)
13	Front, Basket
14	Overlay, Front
15	Roller
16	Eyelet, Roller
17	WPW10272364 Whirlpool Refrigerator Screw
18	Washer
19	Basket (Small)
20	Side, Basket (Left Side)
21	Side, Basket (Right Side)
22	Basket Spacer, Right Side (2)
24	Roller Stop
25	W11624204 Whirlpool Screw
26	Basket Spacer, Left Side (2)
27	Spacer, Shelf
