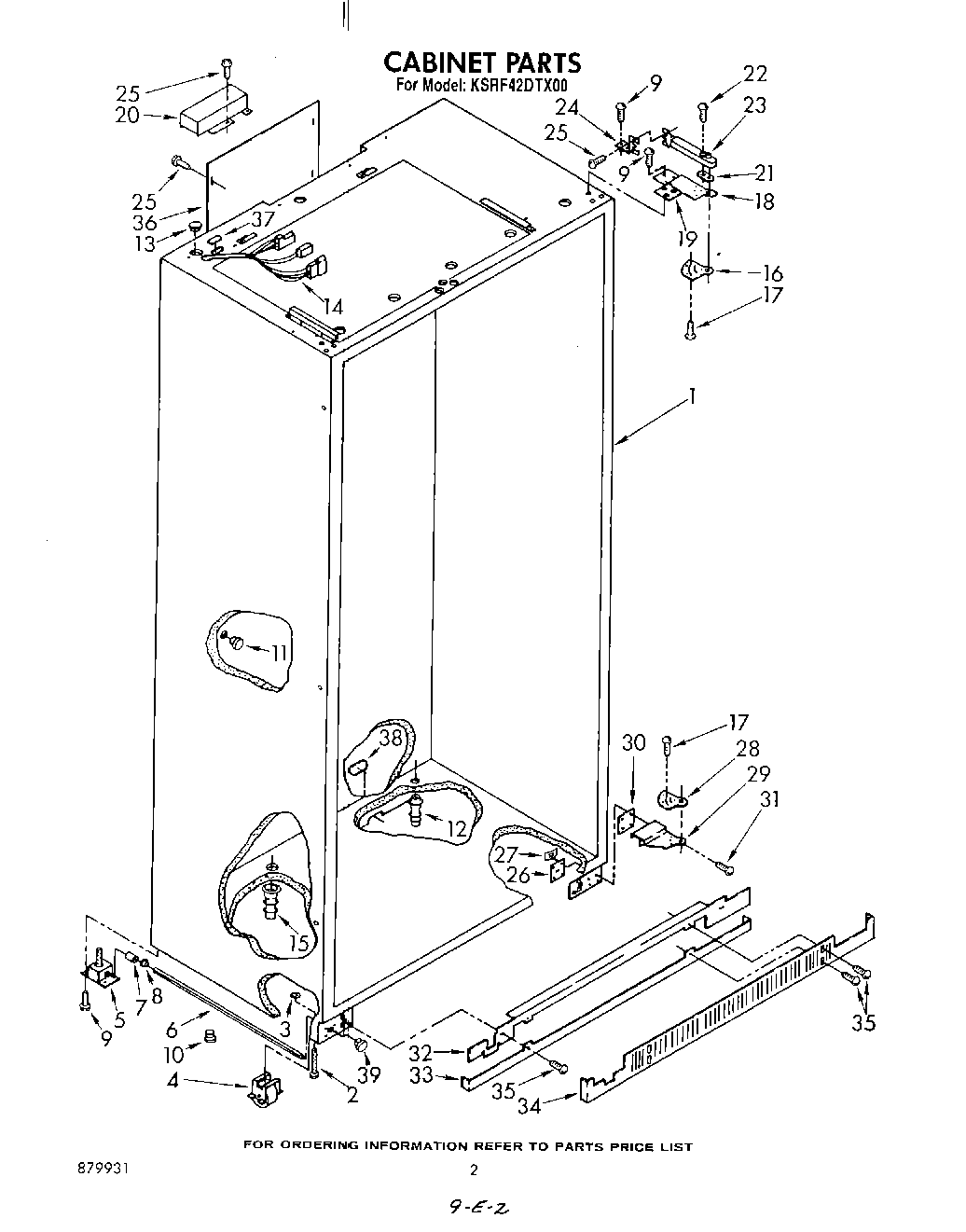

KSRF42DTX00 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Leveler, Front (2)
3	Retainer (2)
4	Roller, Front & Rear (4)
5	2005032 Whirlpool Refrigerator Leveler
6	Adjusting Rod (2)
7	Sleeve, Retainer (2)
8	Bushing, Rod (2)
9	Screw (Repair)
9	Screw, 10-32 x 5/8
10	Hole Plug, Leveler
11	Cap, Grommet
12	Grommet, Water Tube
13	Grommet, Wiring
14	Wiring Harness, Cabinet
15	Drain Fitting
16	Gap, Cover Assembly (Top) (Right Side)
16	Gap, Cover Assembly (Top) (Left Side)
17	Shoulder, Screw
18	Hinge (Top) (Left Side)
18	Hinge (Top) (Right Side)
19	Shim, Hinge Top (4)
20	Guard, Wiring
21	Door Closer, Fixed Cam
22	WP486579 Whirlpool Air Conditioner Screw
23	Door Closer Assembly (2)
24	Bracket, Door Closer (Left Side)
24	Bracket, Door Closer (Right Side)
25	W11624204 Whirlpool Screw
25	SCREW
26	Tap Plate, Hinge Butt (2)
27	Speed Nut
28	Gap, Cover Assembly (Bottom) (Right Side)
28	Gap, Cover Assembly (Bottom) (Left Side)
29	Hinge (Bottom) (Left Side)
29	Hinge (Bottom) (Right Side)
30	Shim, Hinge Bottom (1 Each)
31	Screw, 1/4-28 x 3/4
32	Grille Base, Top
33	Grille Base, Bottom
34	Grille Base, Front
35	Screw
36	Cover, Rear
37	Grommet, Wiring
38	Grommet, Flexible
39	Grommet, Tube
