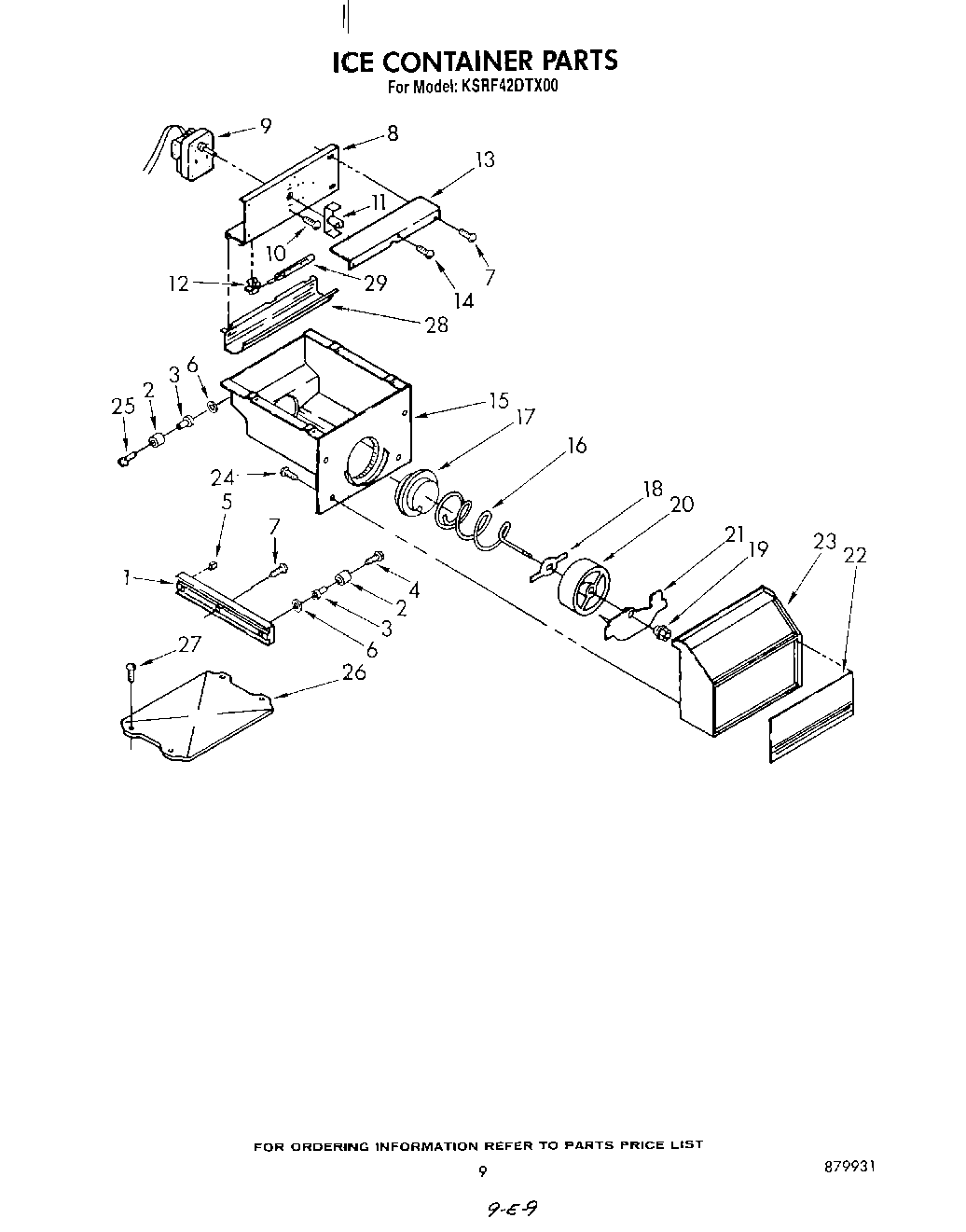

KSRF42DTX00 06 – ICE CONTAINERadmin2025-04-26T11:37:53+00:00KSRF42DTX00 06 – ICE CONTAINER
Products
| Position | Product |
|---|
| 1 | Spacer, Track (Left Side) |
| 1 | Spacer, Track (Right Side) |
| 2 | Roller |
| 3 | Eyelet, Roller |
| 4 | WP489261 Whirlpool Refrigerator Screw |
| 5 | Roller Stop |
| 6 | Washer |
| 7 | W11624204 Whirlpool Screw |
| 7 | SCREW |
| 8 | Bracket, Motor |
| 9 | Motor |
| 10 | 303776 Whirlpool Dishwasher Screw |
| 11 | COUPLING AUGER MOTOR |
| 12 | Socket, Light |
| 13 | Cover, Motor |
| 14 | WP489128 Whirlpool Refrigerator Screw |
| 15 | Ice Container |
| 16 | Conveyor |
| 17 | W10749708 Whirlpool Refrigerator Coupling |
| 18 | 4388736 Whirlpool Refrigerator Ice Dispenser Bucket Bin Conveyor Auger Drum |
| 19 | Nut, Bearing |
| 21 | Baffle |
| 22 | Overlay, Cover |
| 23 | Front Cover |
| 24 | WP488787 Whirlpool Refrigerator Screw |
| 25 | WPW10272364 Whirlpool Refrigerator Screw |
| 26 | Baffle, Ice Container |
| 27 | WP488729 Whirlpool Refrigerator Door Screw |
| 28 | Lens, Dispenser |
| 29 | WP548049 Whirlpool Refrigerator Light Bulb |
