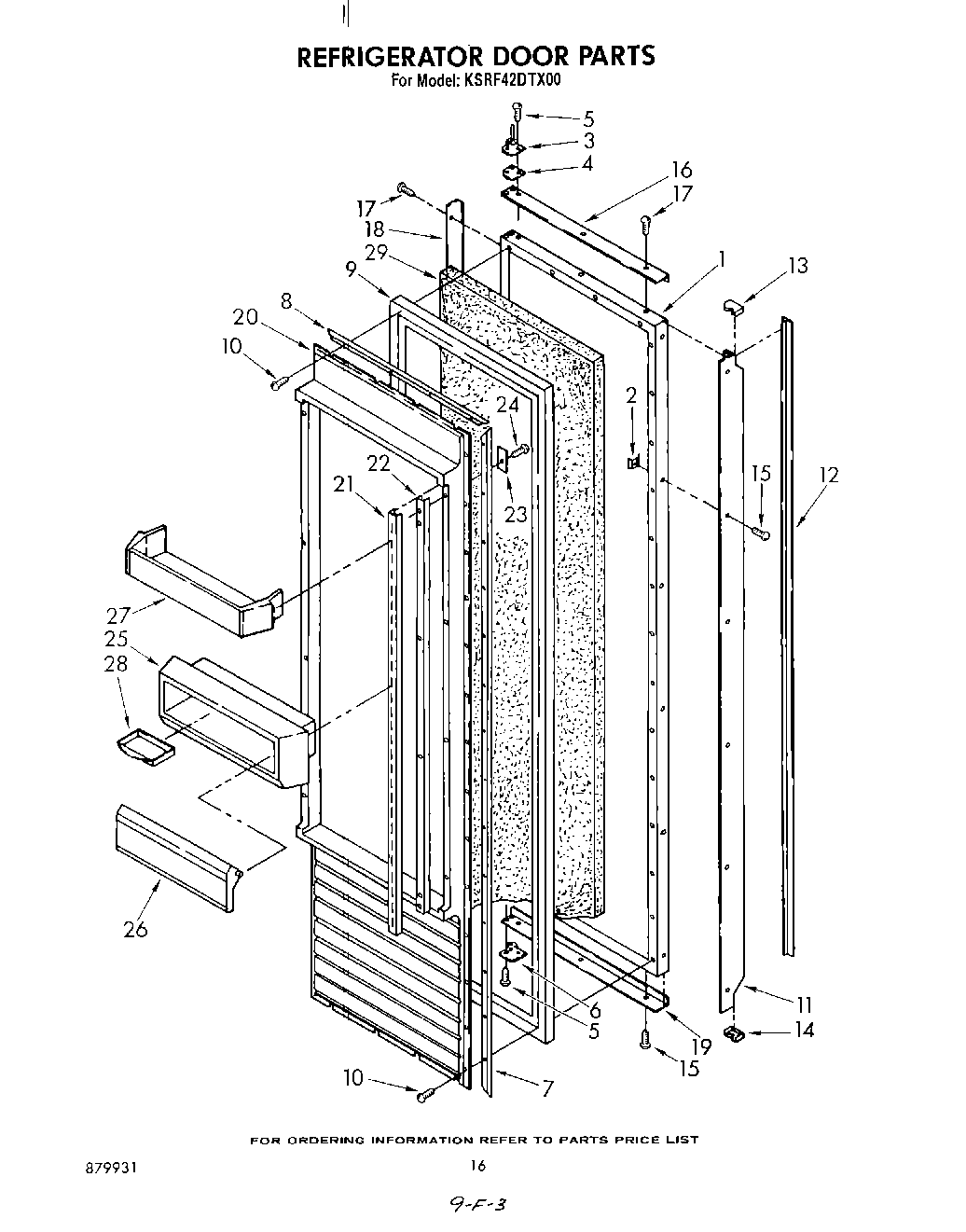

KSRF42DTX00 11 – REFRIGERATOR DOORadmin2025-04-26T11:36:45+00:00KSRF42DTX00 11 – REFRIGERATOR DOOR
Products
| Position | Product |
|---|
| Service & Wiring Sheet |
| Use & Care Guide |
| Parts List |
| WPL LIT628107 |
| Energy Label |
| 1 | Door Panel, Refrigerator (Also Order Item 29) |
| 2 | WP939101 Whirlpool Refrigerator Plate |
| 3 | Hinge Assembly, Top |
| 4 | Spacer |
| 5 | Screw (Repair) |
| 5 | Screw |
| 6 | Hinge Assembly, Bottom |
| 7 | Gasket Retainer, Side (2) |
| 8 | Gasket Retainer, Top & Bottom |
| 9 | Door Gasket, Magnetic |
| 10 | WP489069 Whirlpool Compactor Screw |
| 11 | Handle, Door |
| 12 | Insert, Door Handle |
| 13 | End Cap, Top |
| 14 | End Cap, Bottom |
| 15 | WP488729 Whirlpool Refrigerator Door Screw |
| 16 | Trim (Top) |
| 17 | Screw, 6-32 x 1/2 |
| 18 | Trim (Side) |
| 19 | Trim (Bottom) |
| 20 | Panel, Interior Door |
| 21 | Ladder, Shelf (2) |
| 22 | Retainer, Shelf Ladder (2) |
| 23 | Back Up Plate (8) |
| 24 | W11624204 Whirlpool Screw |
| 24 | SCREW |
| 25 | Bin, Utility |
| 26 | Door, Utility Bin |
| 27 | Door Shelf (4) |
| 29 | Front Panel Kit (Almond) |
| 29 | Front Panel Kit (White) |
| 29 | WPL 876029 |
| 29 | Top Grille Trim Kit (8``) |
| 29 | Top Grille Trim Kit (7-1/2``) |
| 29 | Front Panel Kit (Black) |
