KSRF42DTX00 12 – FREEZER DOOR

KSRF42DTX00 12 – FREEZER DOOR

Written by

in

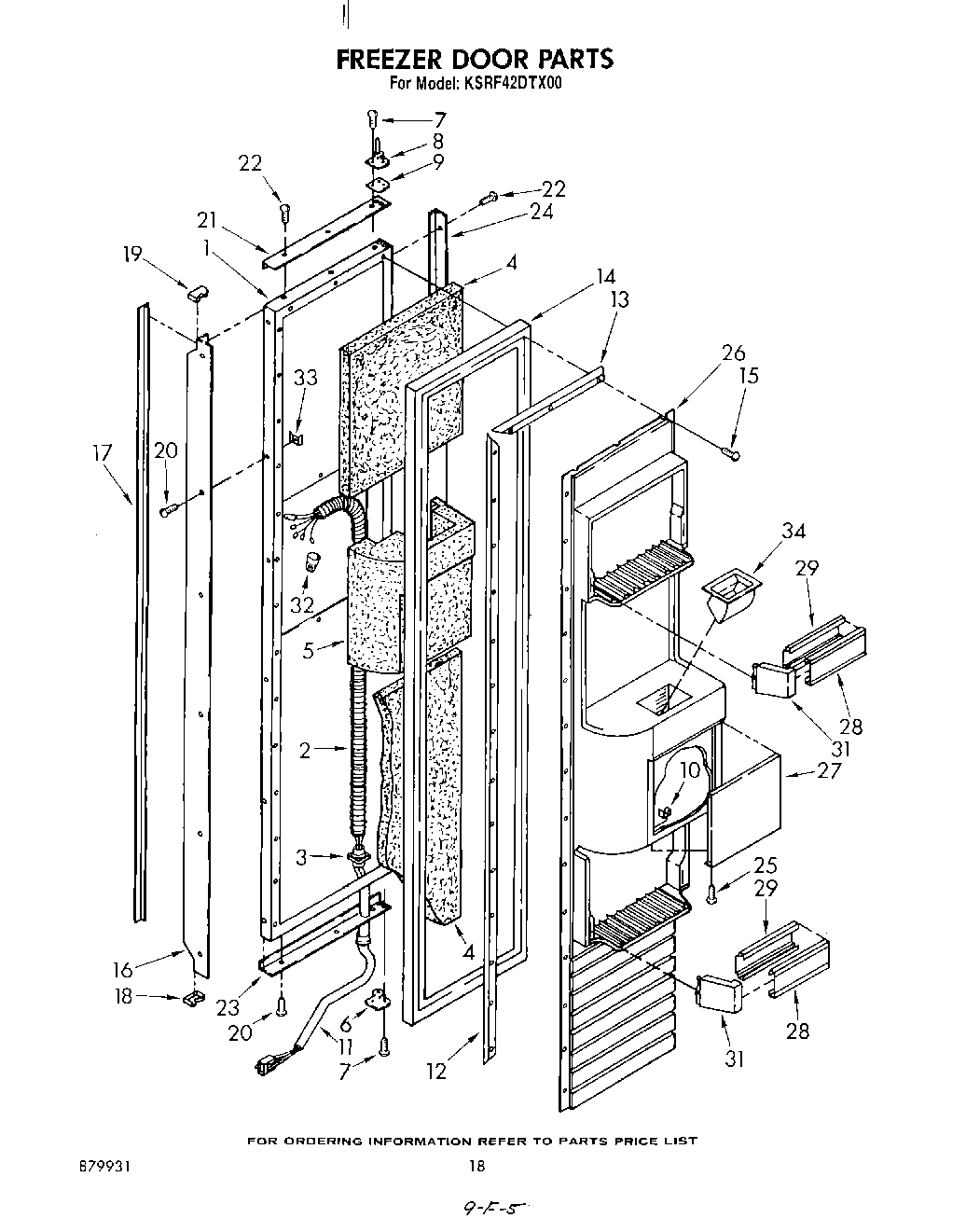

KSRF42DTX00 12 – FREEZER DOOR

Products

PositionProduct
1Exterior Door Panel, Freezer (Also Order Item 4)
2Tube, Wiring
3Retainer, Tube
4WPL 876029
5Insulation, Dispenser
6Hinge, Bottom
7Screw
7Screw (Repair)
8Hinge, Top
9Spacer
10Expansion Clip
11Wiring Harness, Freezer Door
12Gasket Retainer, Side (2)
13Gasket Retainer, Top & Bottom
142188496A Whirlpool Refrigerator Door Gasket
15WP489069 Whirlpool Compactor Screw
16Handle, Door
17Insert, Door Handle
18End Cap, Top
19End Cap, Bottom
20WP488729 Whirlpool Refrigerator Door Screw
21Trim (Top)
22Screw, 6-32 x 1/2
23Trim (Bottom)
24Trim (Side)
26Panel, Interior Door
27Overlay, Panel
28WP2003128 Whirlpool Shelf Bin
29Door Shelf, Inner Trim
31Support, Trim Ends
32Wire Connector
33WP939101 Whirlpool Refrigerator Plate
34Ice Chute
